Eclipse L4-1996cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

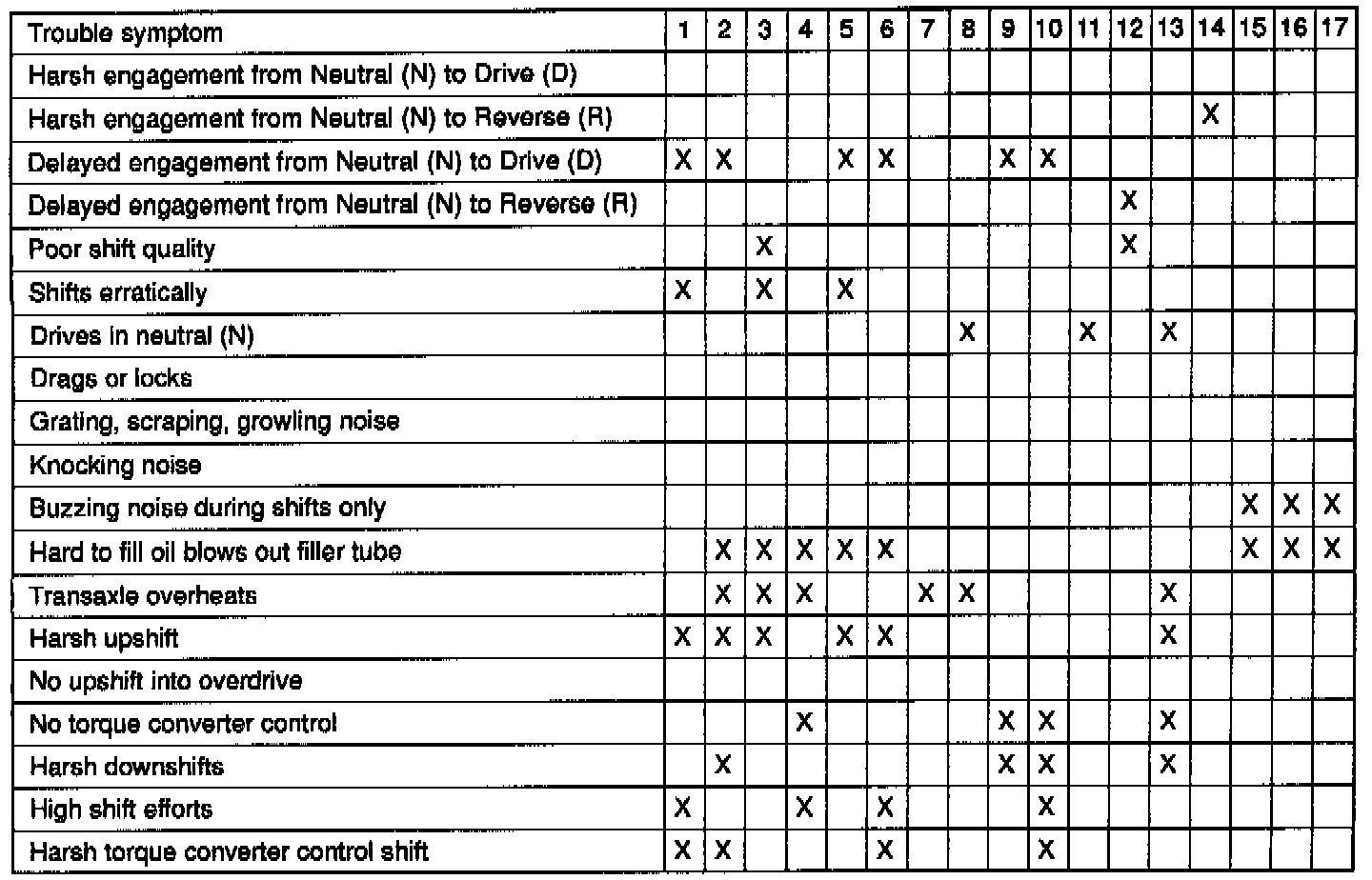

Trouble symptom, Page 1

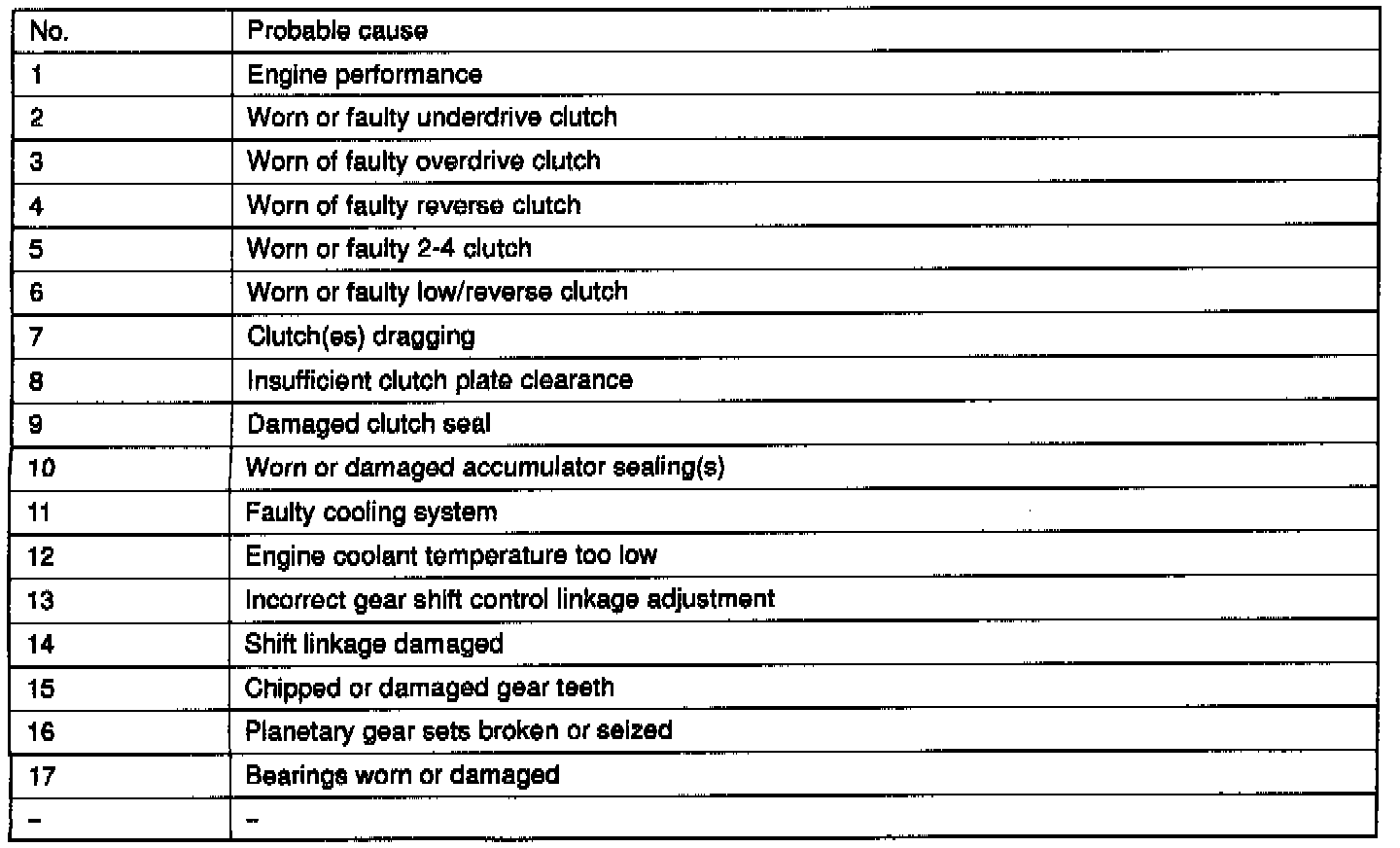

Probable cause, Page 1

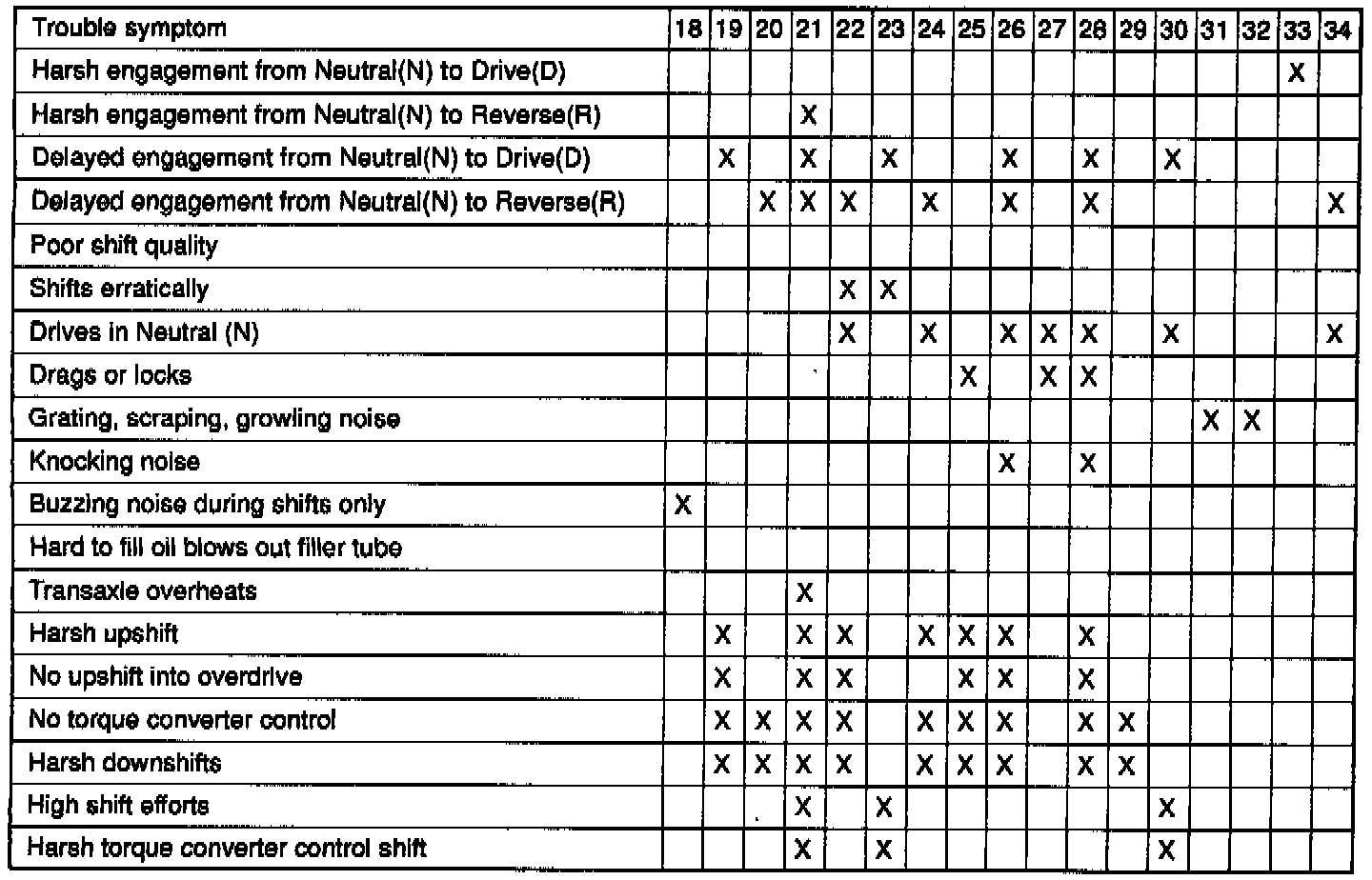

Trouble symptom, Page 2
Probable cause, Page 2
