Eclipse L4-1996cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>

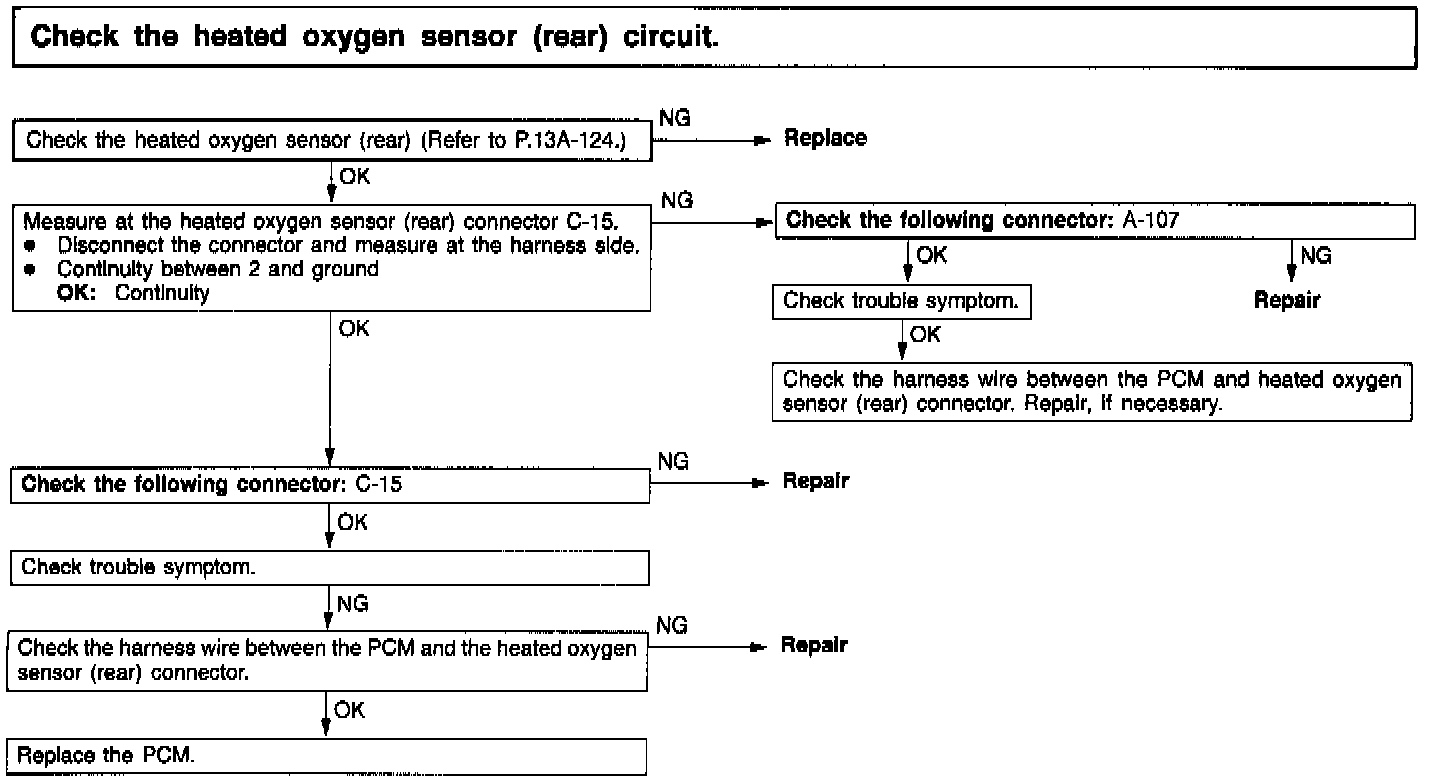

Heated O2S (Rear) Circuit Inspection
Heated O2S (Rear) Circuit Inspection
