Home >> Mitsubishi >> 1996 >> 3000GT V6-2972cc 3.0L DOHC 24 Valve >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> License Plate Lamp

License Plate Lamp

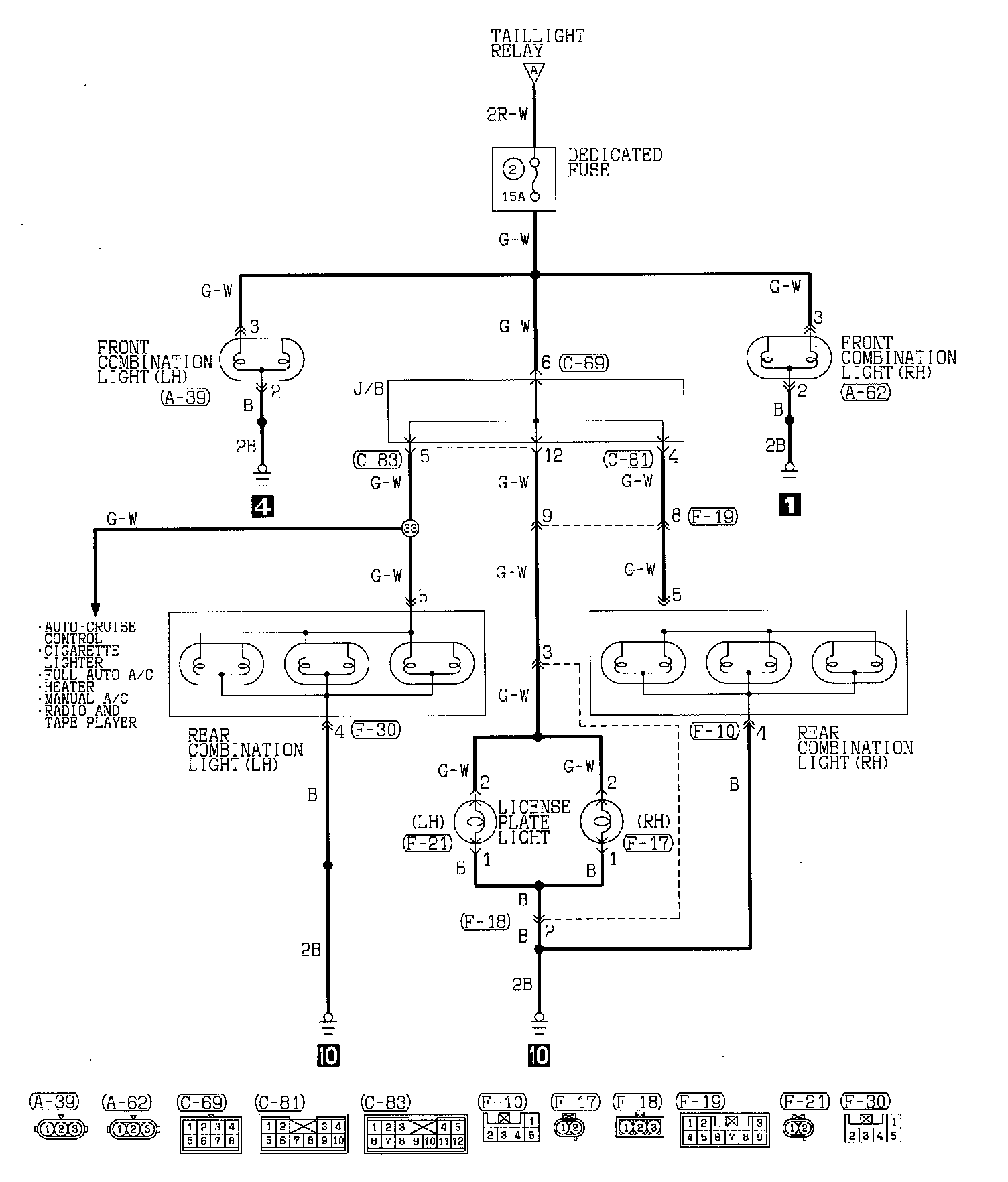

Part 1 Of 2 (Hatchback):

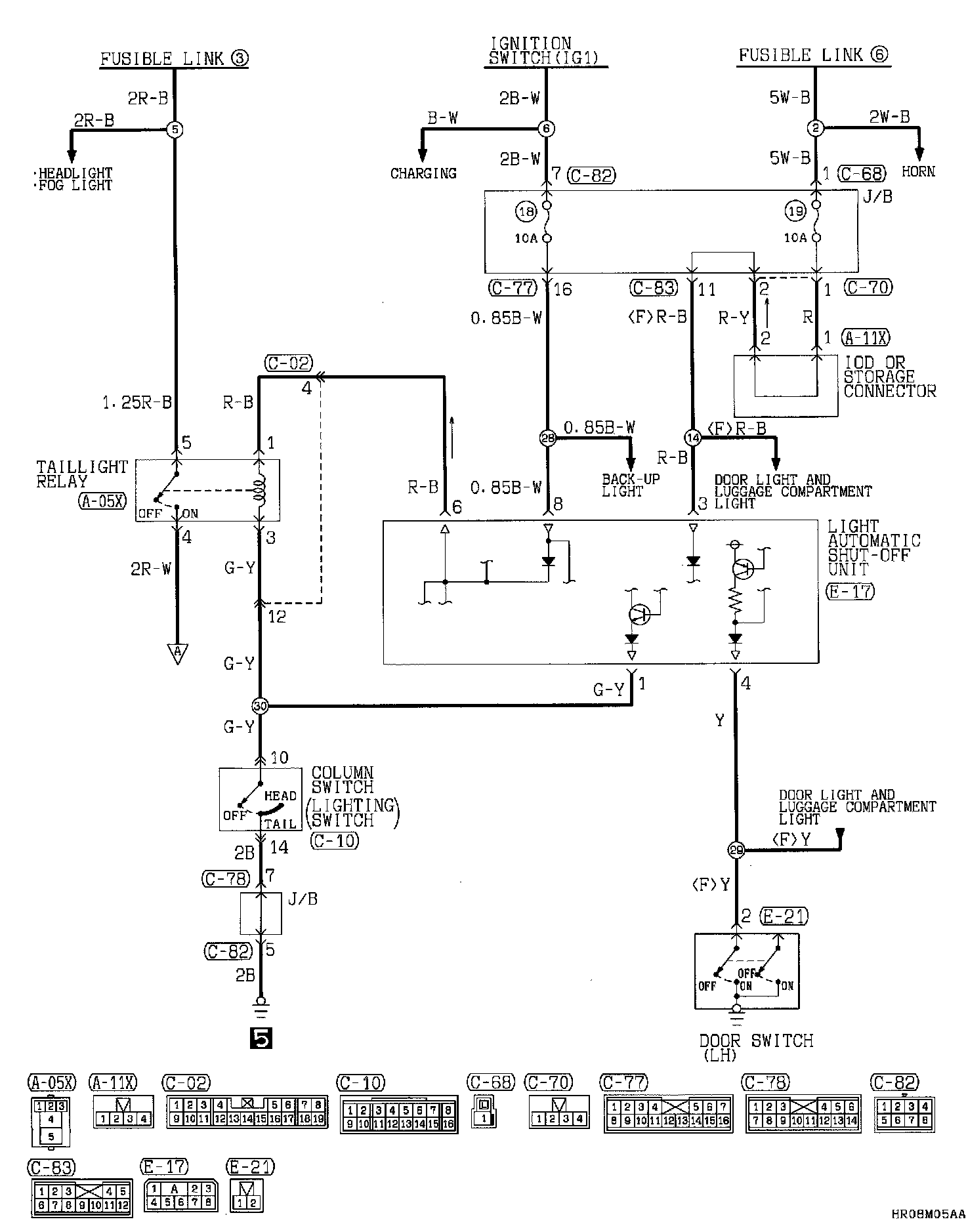

Part 2 Of 2 (Hatchback):
