ECM - Service Manual Correction
NO.: TSB-96-13-017DATE: August, 1996
MODEL: 1995 Eclipse
SUBJECT:
NEW ECM FOR 4G63 TURBO (ECLIPSE GS-T) - SERVICE MANUAL REVISION
PURPOSE
This bulletin corrects information concerning the Engine Control Module (ECM) for the 1995 Eclipse. The manual indicates that the GS-T and GS-X models use the same ECM. This is incorrect. The GS-T and GS-X have different ECMs. The ECM shown in the service manual is used only on the GS-X. This service manual revision updates this information by adding the correct identification number for the different ECM used in the GS-T
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1995 Eclipse GS-T (2.0L Turbo Front Wheel Drive)
AFFECTED SERVICE MANUAL
1995 Eclipse Service Manual, Volume 1, Page 13A-125
SERVICE MANUAL REVISION
1995 Eclipse Service Manual, Volume 1, Page 13A-125

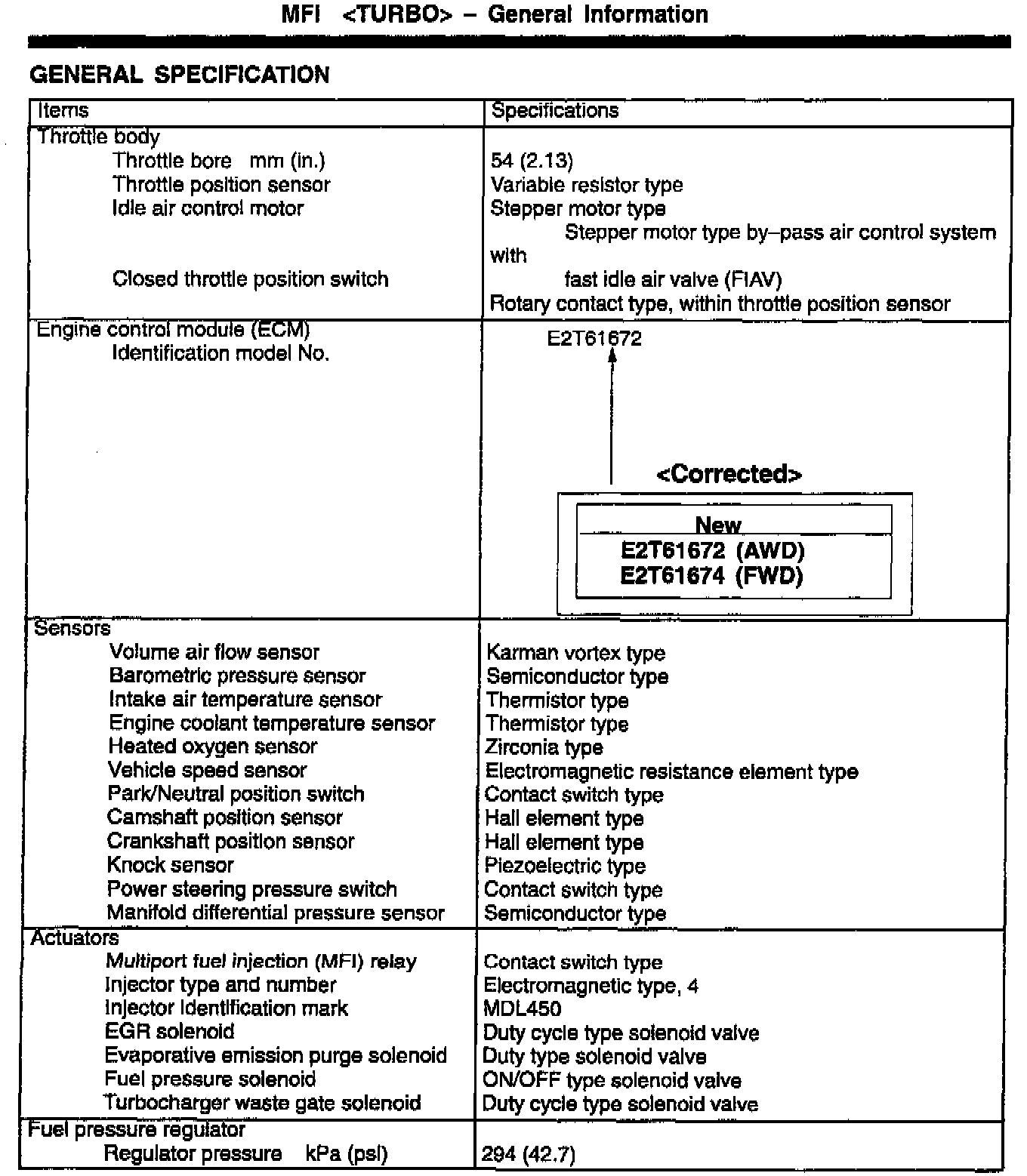

Add the new identification number for the GS-T (FWD) ECM as shown.
General Specifications
