Front Suspension - Popping/Knocking/Clunking: Overview

NO.: TSB-96-33A-005
DATE: December, 1996
MODEL: See below

FRONT SUSPENSION NOISE DIAGNOSIS

PURPOSE

Abnormal front suspension noises such as popping, knocking, or clunking can come from components in five front end areas:

^ Crossmember attachment

^ Stabilizer bar

^ Lower lateral arm

^ Upper arm

^ Lower compression arm

Follow the inspection procedures in this bulletin to determine appropriate repairs and/or parts replacement to eliminate the noise. Be sure to follow the procedures in the order listed in this bulletin.

AFFECTED VEHICLES

^ 1994-96 Galant

^ 1995-96 Eclipse

PARTS INFORMATION

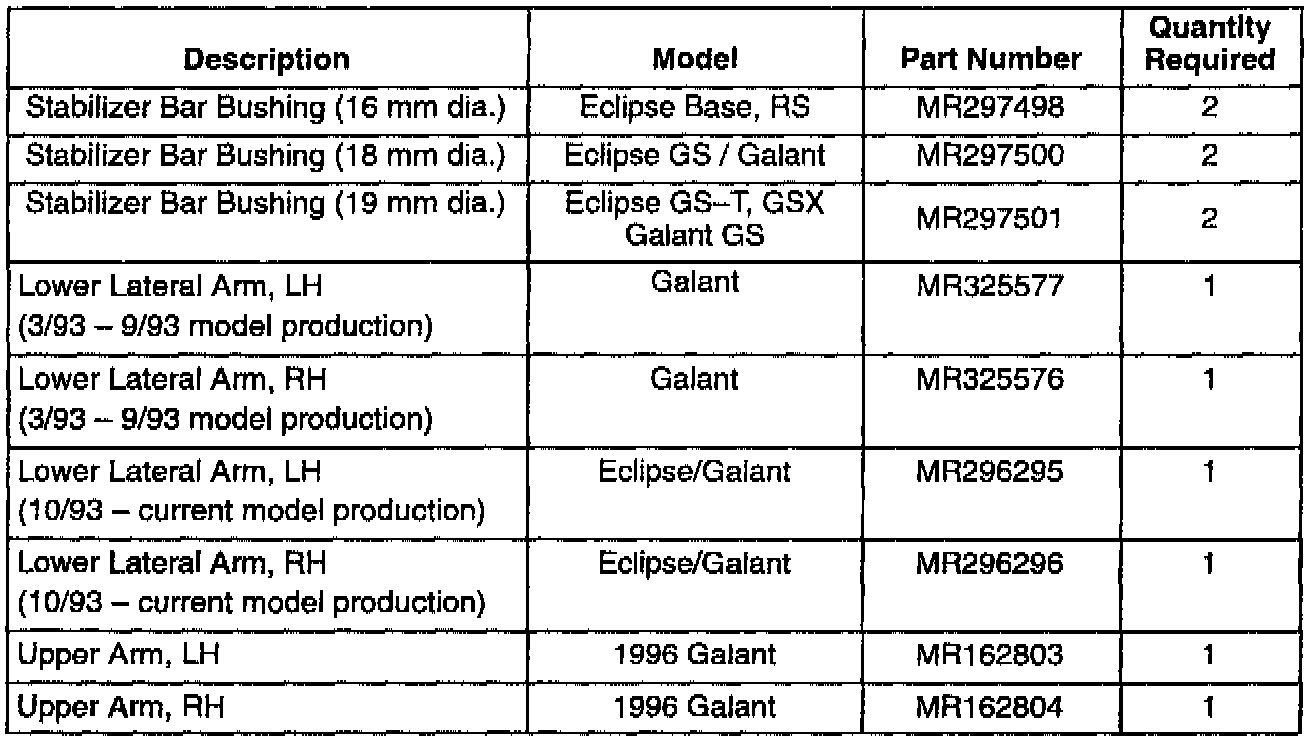

The chart shown lists only new, improved replacement parts. Refer to the Parts CAPS system for all other replacement parts.

WARRANTY INFORMATION

Normal warranty procedures apply.
