Valve Cover

TIGHTENING SPECIFICATIONS

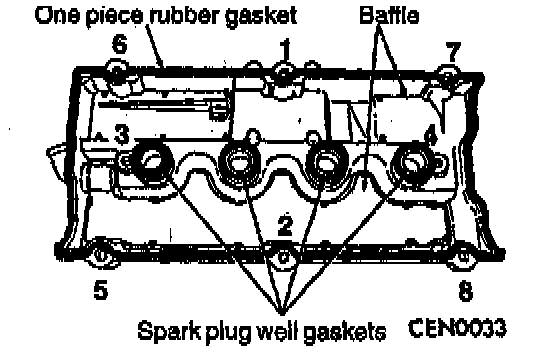

Install the cylinder head cover assembly to the head and tighten fasteners in sequence shown. Tighten all fasteners according to the 3-step torque method.
1. Tighten to 4.5 Nm (3.3 ft. lbs.).
2. Tighten to 9.0 Nm (6.6 ft. lbs.).
3. Tighten to 12 Nm (8.9 ft. lbs.).


Sealant 3M ATD Part No. 8660, Or Equivalent
