Home >> Mitsubishi >> 1995 >> Eclipse L4-1996cc 2.0L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> A/T Torque Data

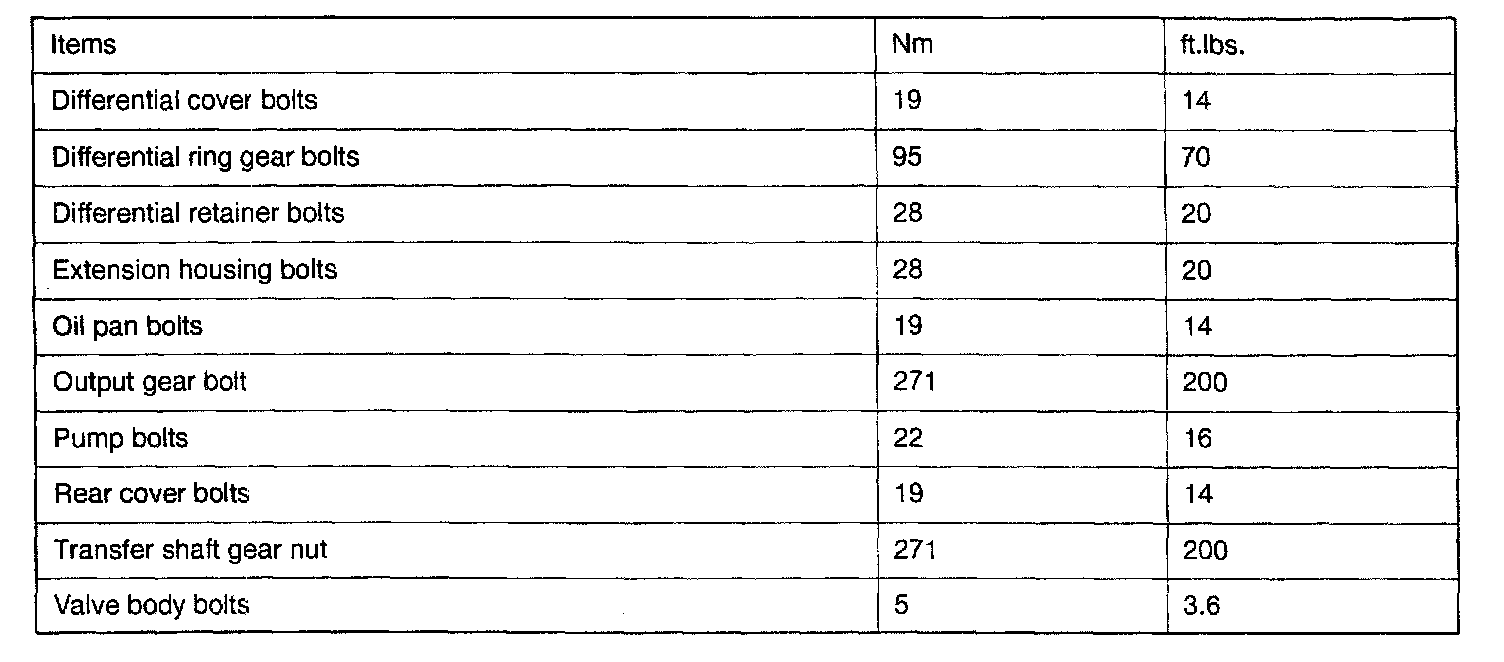

A/T Torque Data

F4AC1 4-spd A/T, Transaxle Torque:
