Computer Connector

Foreword
Connectors which are loose shall be rectified by removing the female terminal from connector housing and raising its lance to establish a more secure engagement. Removal of connector terminal used for MFI and ELC-4 A/T control circuit shall be done in the following manner.

Computer Connector (Part 1 Of 4):

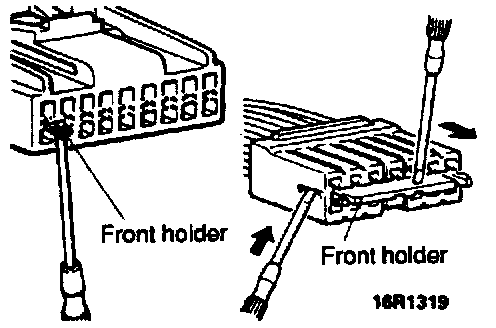

1. Insert screwdriver [1.4 mm (0.06 in.) width] as shown in the figure, disengage front holder and remove it.

Computer Connector (Part 2 Of 4):

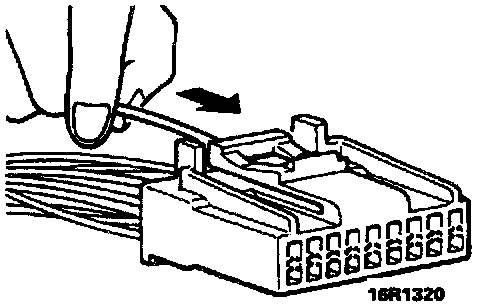

2. Insert harness of terminal to be rectified deep into connector from harness side and hold it there.

Computer Connector (Part 3 Of 4):

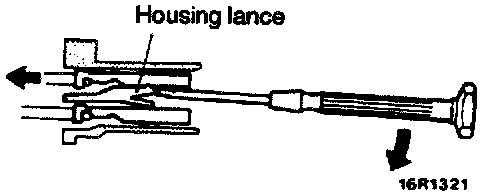

3. Insert tip of screwdriver [1.4 mm (0.06 in.) width] into connector in a manner as shown in the figure, raise housing lance slightly with it and pull out harness.

CAUTION: Tool No. 753787-1 supplied by AMP can be used instead of screwdriver.

Computer Connector (Part 4 Of 4):

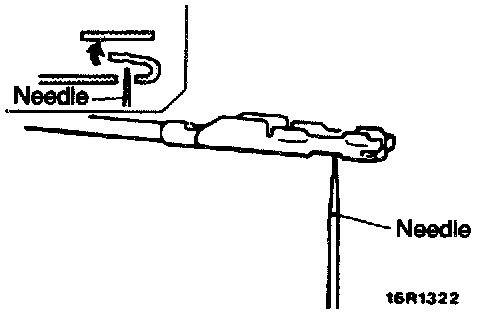

4. Insert needle through a hole provided on terminal and raise contact point of male terminal.
