Engine Compartment





Configuration Diagrams

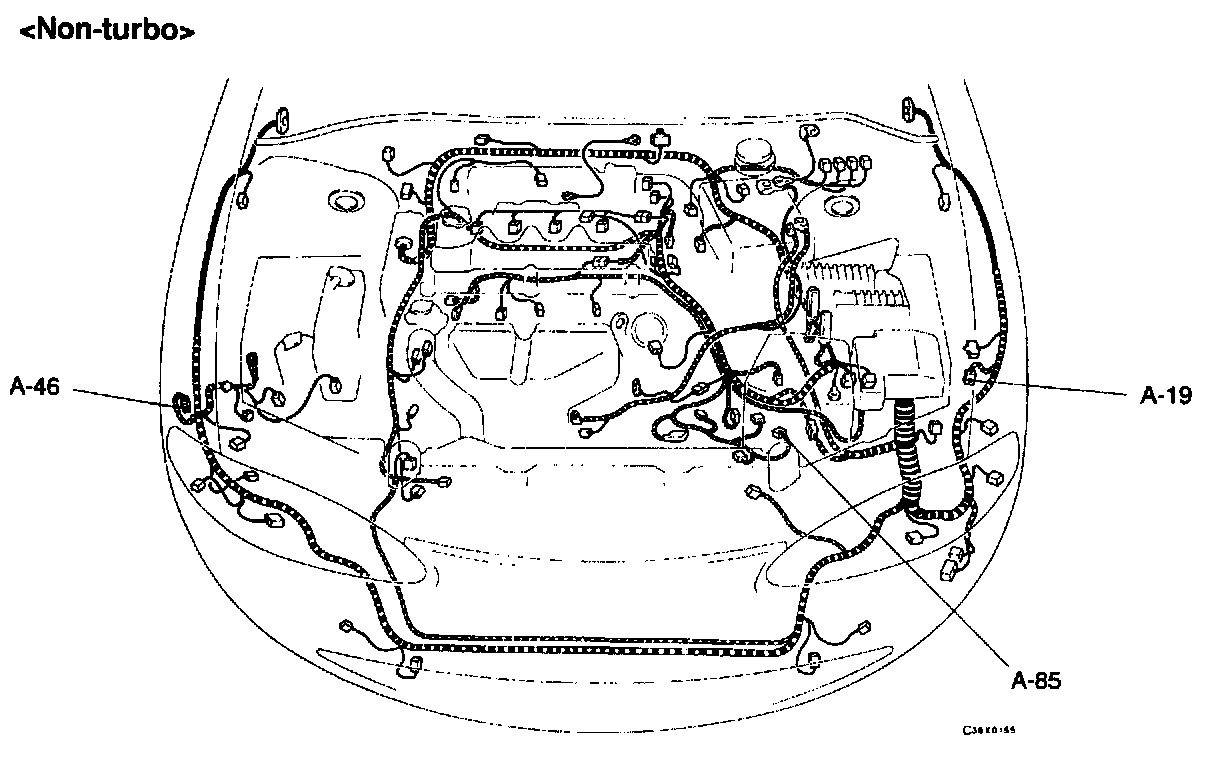

Engine compartment

A-19 Front impact sensor (L.H.)
A-46 Front impact sensor (R.H.)
A-85 Park/Neutral position switch
