Fuel Tank: Service and Repair

PREREMOVAL OPERATION
1. Fuel Draining
2. Reduce the inner pressure of fuel line and hose.

NOTE
- When replacing the fuel pump assembly or the fuel gauge unit only. it is possible to work from the service holes underneath the rear seat cushion without having to remove the fuel tank.

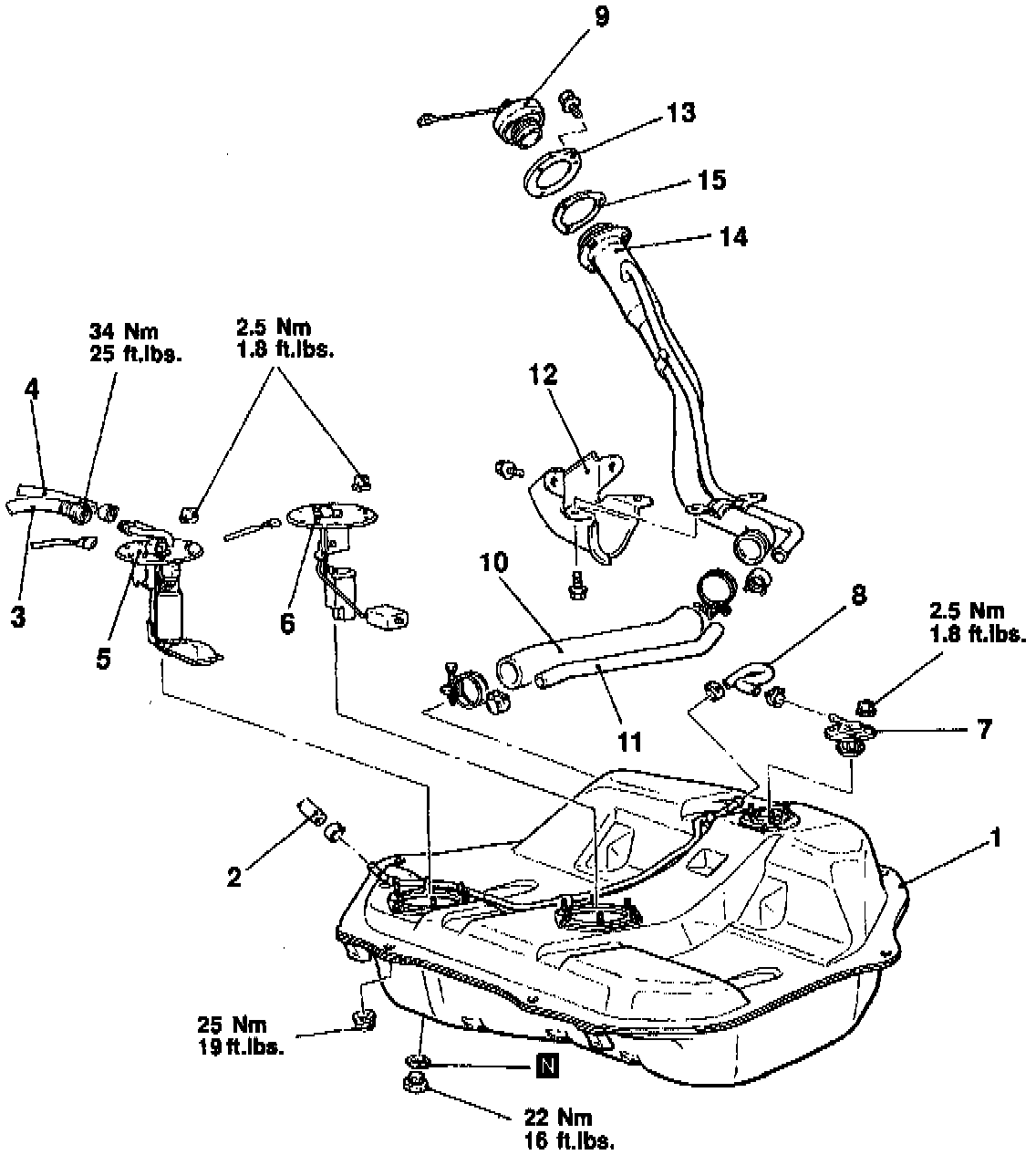

REMOVAL STEPS
1. Fuel tank
2. Vapor hose
3. High-pressure fuel hose
4. Return hose
5. Fuel pump assembly
6. Fuel gauge unit
7. Fuel cut-off valve assembly
8. Vapor hose
9. Fuel tank filler tube cap
10. Filler hose
11. Vapor hose
12. Fuel tank filler tube protector
13. Reinforcement
14. Fuel tank filler tube assembly
15. Packing

POST-INSTALLATION OPERATION
1. Fuel Refilling
2. Checking for Fuel Leaks
