DTC P0443 - Revised Troubleshooting Procedures

NO: TSB-97-13-011
DATE: November, 1997
MODEL: 1995 Eclipse 2.0L, Non-Turbo

SUBJECT:
CORRECTED DTC P0443 TROUBLESHOOTING PROCEDURES (420A ENGINE) - SERVICE MANUAL REVISION

[TSB Revision TSB-97-13-011]

PURPOSE
This bulletin corrects pin number references for diagnosing MFI Troubleshooting DTC P0443 (Scan Tool 18, MIL 31) on the 1995 Eclipse 2.0L Non-Turbo (420A) engine.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES
1995 Eclipse 2.0L Non-Turbo (420A) Engine

AFFECTED SERVICE MANUAL

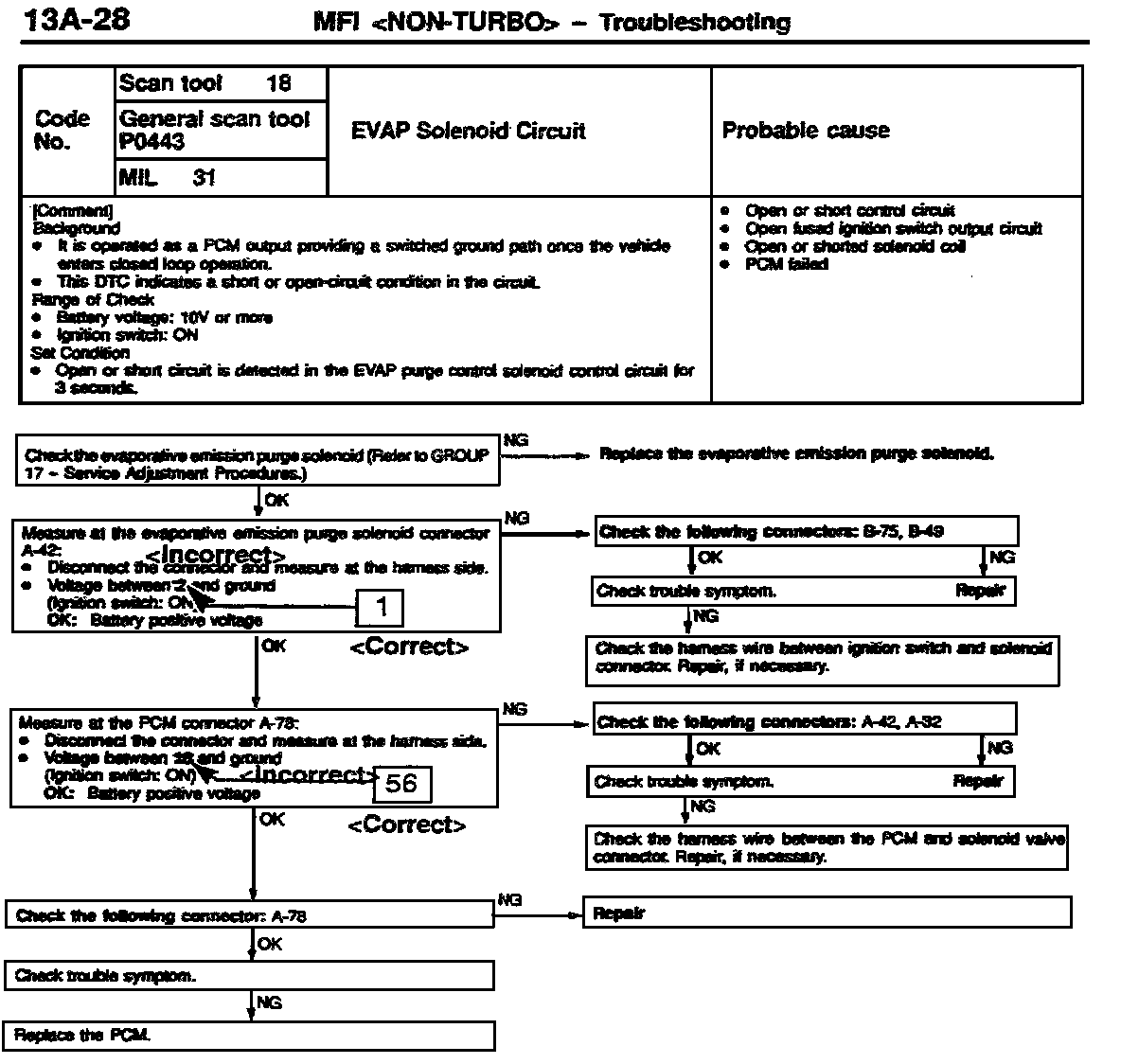

1995 Eclipse Service Manual, Volume 1, Page 13A-28





1995 Eclipse Service Manual, Volume1, Page 13A-28
Correct the connector pin numbers as shown.
