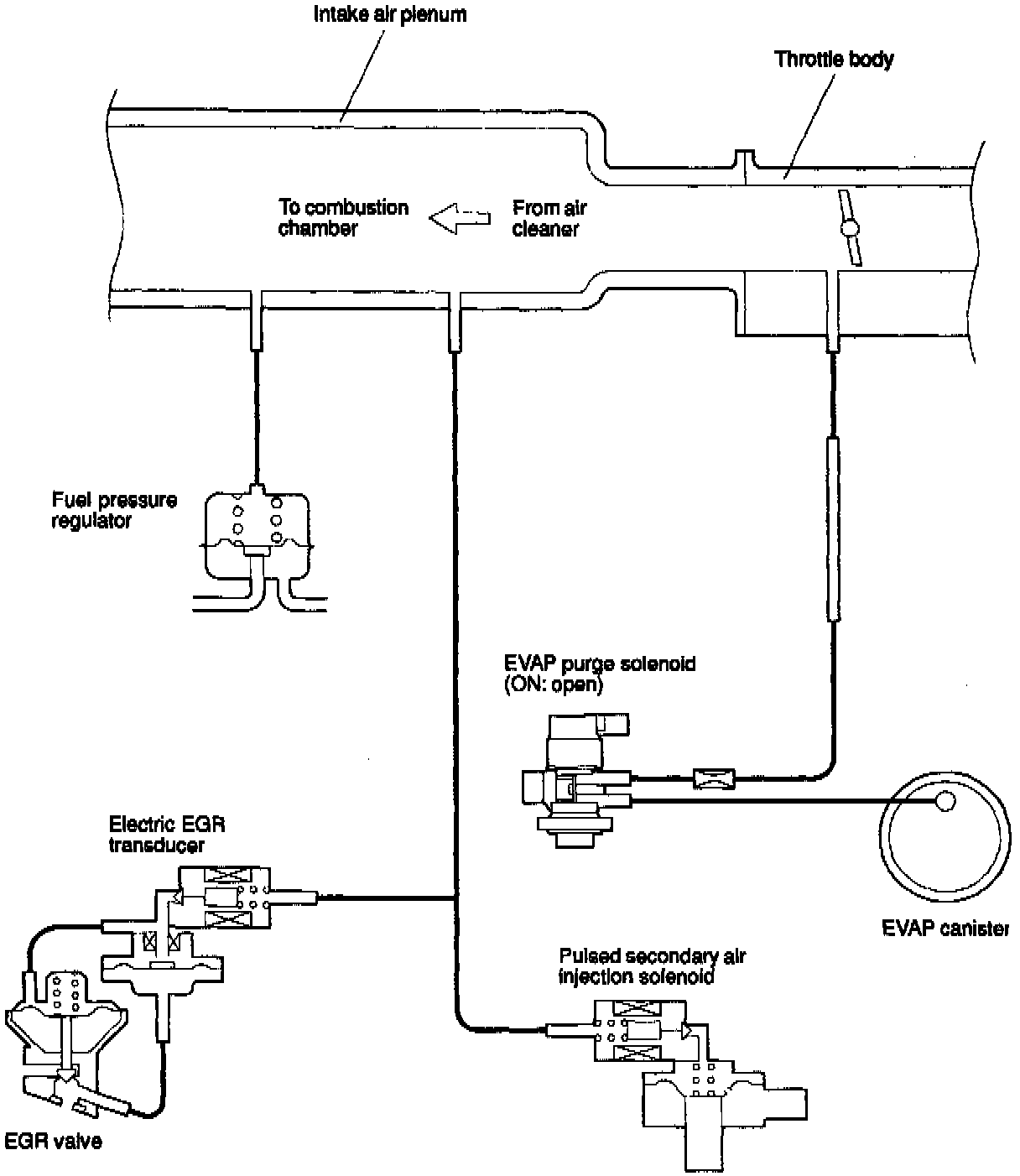

Vacuum Circuit Diagram

INSPECTION
1. Using the VACUUM HOSE ROUTING as a guide, check that the vacuum hoses are correctly connected, and that there are no bends or damage to the hoses.

INSTALLATION
1. When connecting the vacuum hoses, they should be securely inserted onto the nipples.
2. To connect the hoses correctly, use the VACUUM HOSE ROUTING as a guide.
