Home >> Mitsubishi >> 1995 >> Eclipse L4-1996cc 2.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Fan Motor Relay System (Radiator Fan, A/C Condenser Fan)

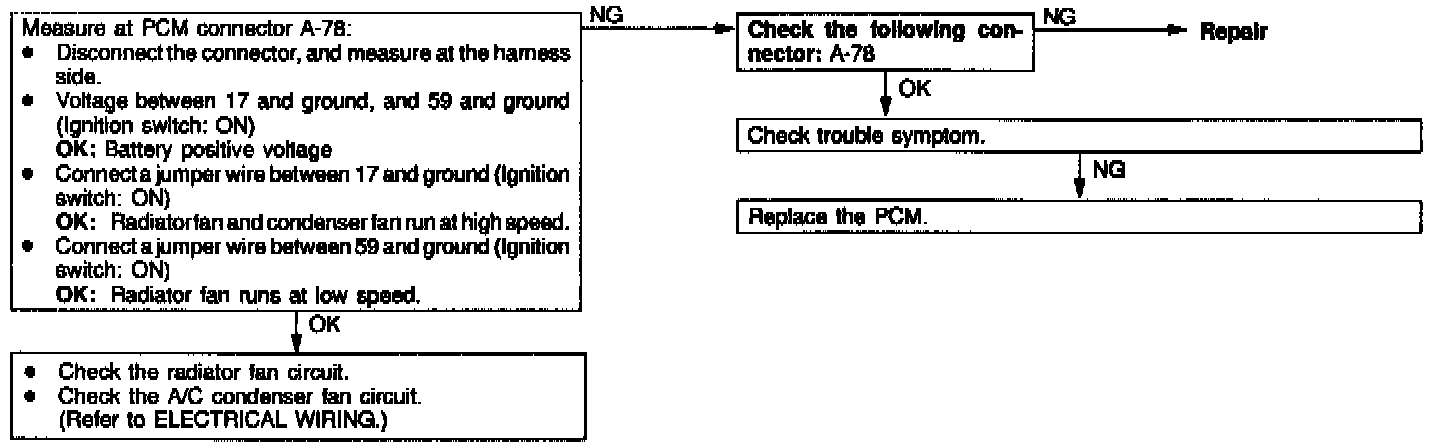

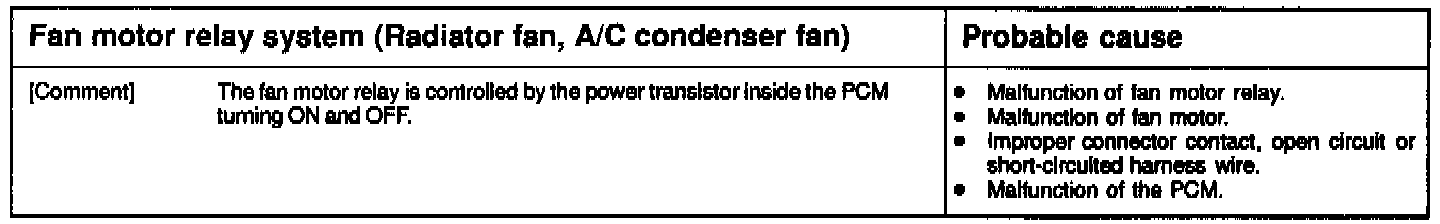

Fan Motor Relay System (Radiator Fan, A/C Condenser Fan)
