Timing Belt Tensioner Bracket - Precautions
NO.: TSB-96-11-004DATE: May, 1996
MODEL: 1995-96 Eclipse
SUBJECT:
TIMING BELT TENSIONER BRACKET
PURPOSE

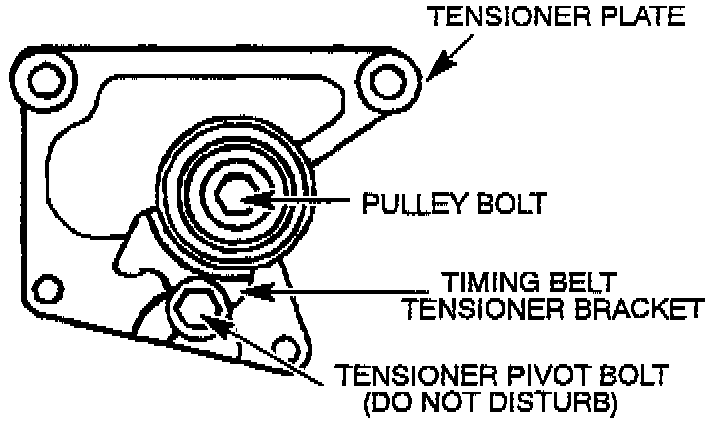

On affected vehicles, the tensioner pivot bolt on the timing belt tensioner bracket should never be tightened, loosened or removed. If the bolt is disturbed, the entire tensioner bracket must be replaced.
The original pulley bolt can be used when installing the new bracket. Torque the pulley bolt to 68 Nm (50 ft. lbs).
AFFECTED VEHICLES
1995-96 Eclipse models equipped with 2.0L non-turbocharged engine
PARTS INFORMATION
Description Part Number
Timing Belt Tension M04777346
Bracket
