Windshield Washer Motor: Testing and Inspection

1. Fill washer tank with water, then disconnect motor connector.

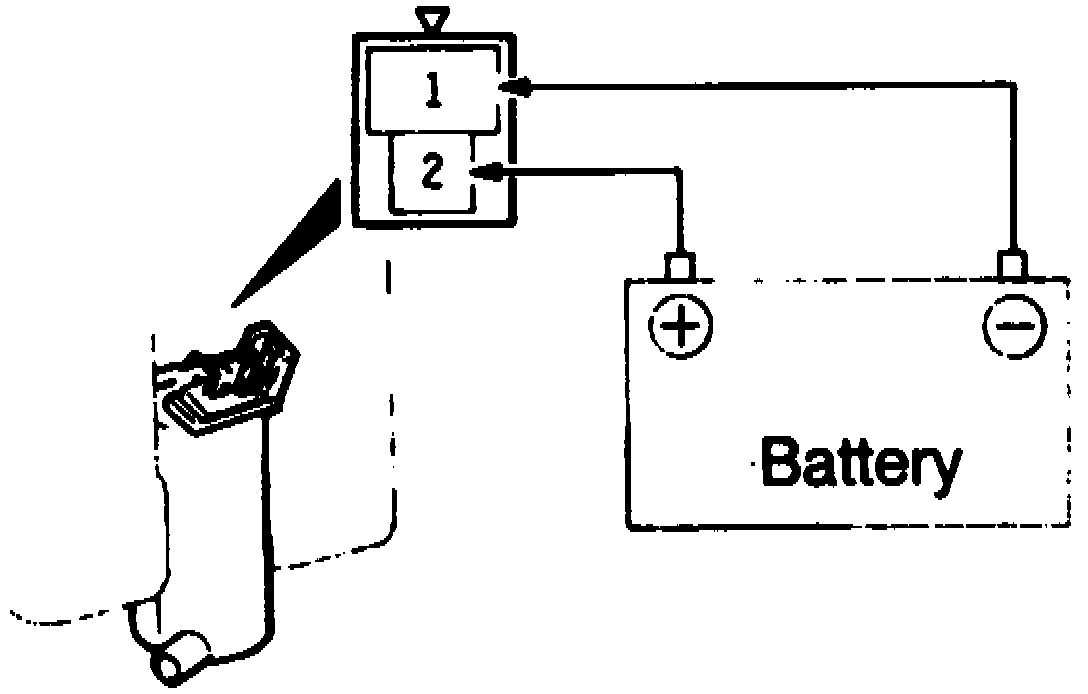

Fig. 28 Washer Motor Inspection:

2. Apply battery voltage to motor terminals, Fig. 28.
3. If a strong spray of water is emitted from ducts, motor operation is satisfactory; if not, replace motor.
