Front Drive Shaft - Revised Repair Kit Information
NO.: TSB-96-26-003DATE: September, 1996
MODEL: 1996-96 Eclipse
SUBJECT
REVISED FRONT DRIVE SHAFT REPAIR KIT INFORMATION - SERVICE MANUAL REVISION
PURPOSE
This bulletin revises information concerning front drive shaft repair kits in the Volume 1 service manuals for the 1995 and 1996 Eclipse. The front drive shaft damper kit is eliminated from both manuals and information about the Birfield joint (B.J.) repair kit is added to the 1995 manual. For more information about installing this newly added B.J. boot repair kit, refer to TSB-96-26-001. The part number for the B.J. boot kit is in the 1995 and 1996 Eclipse parts catalogs/microfiche.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of each affected service manual page.
AFFECTED VEHICLES
1995-96 Eclipse (All)
AFFECTED SERVICE MANUALS
1995 Eclipse Service Manual, Volume 1, Page 26-13
1996 Eclipse Service Manual, Volume 1, Page 26-14
SERVICE MANUAL REVISION

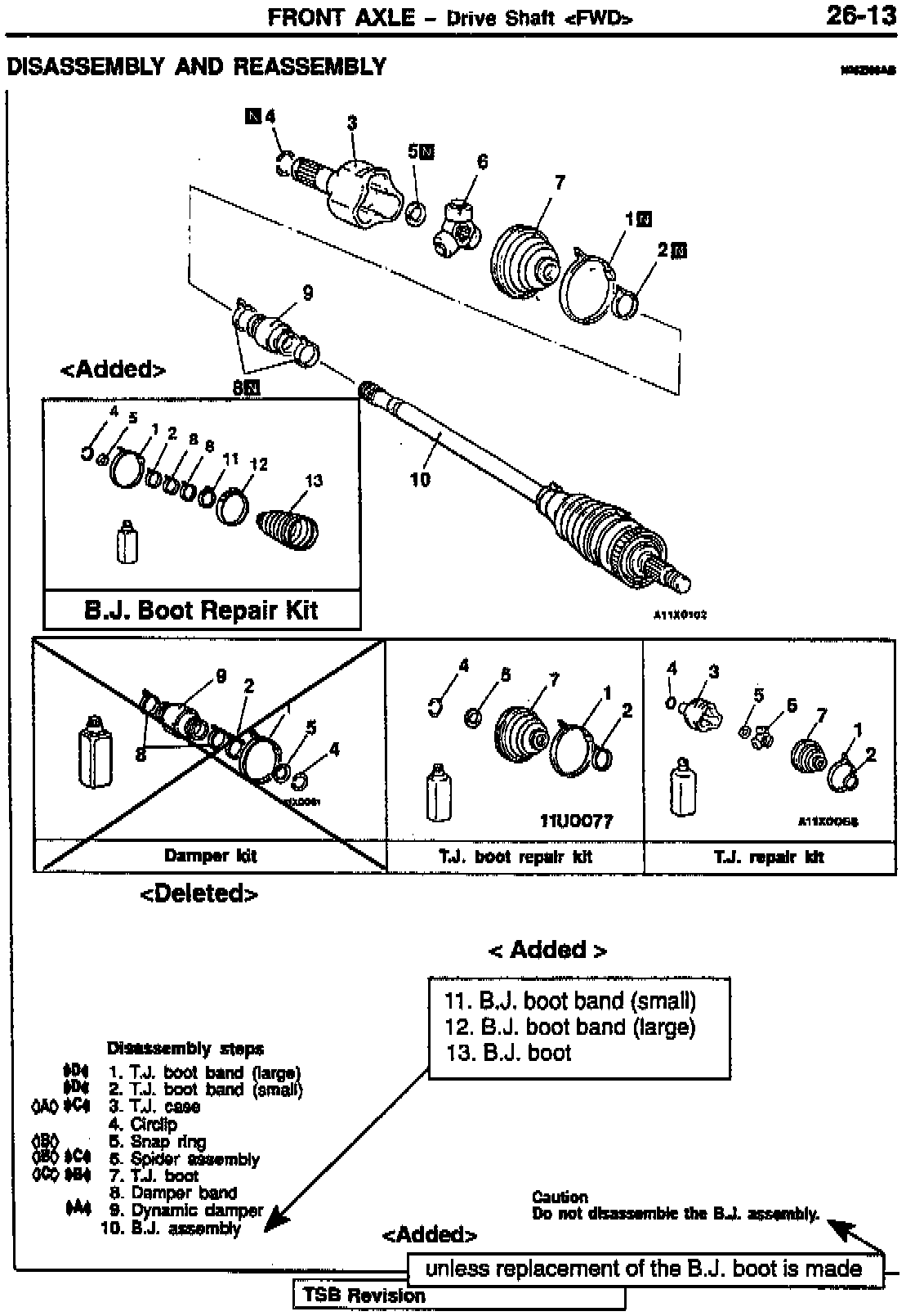

1995 Eclipse Service Manual, Volume 1, Page 26-13
Delete the information about the front drive shaft damper repair kit and add information about the B.J. Boot repair kit as shown.

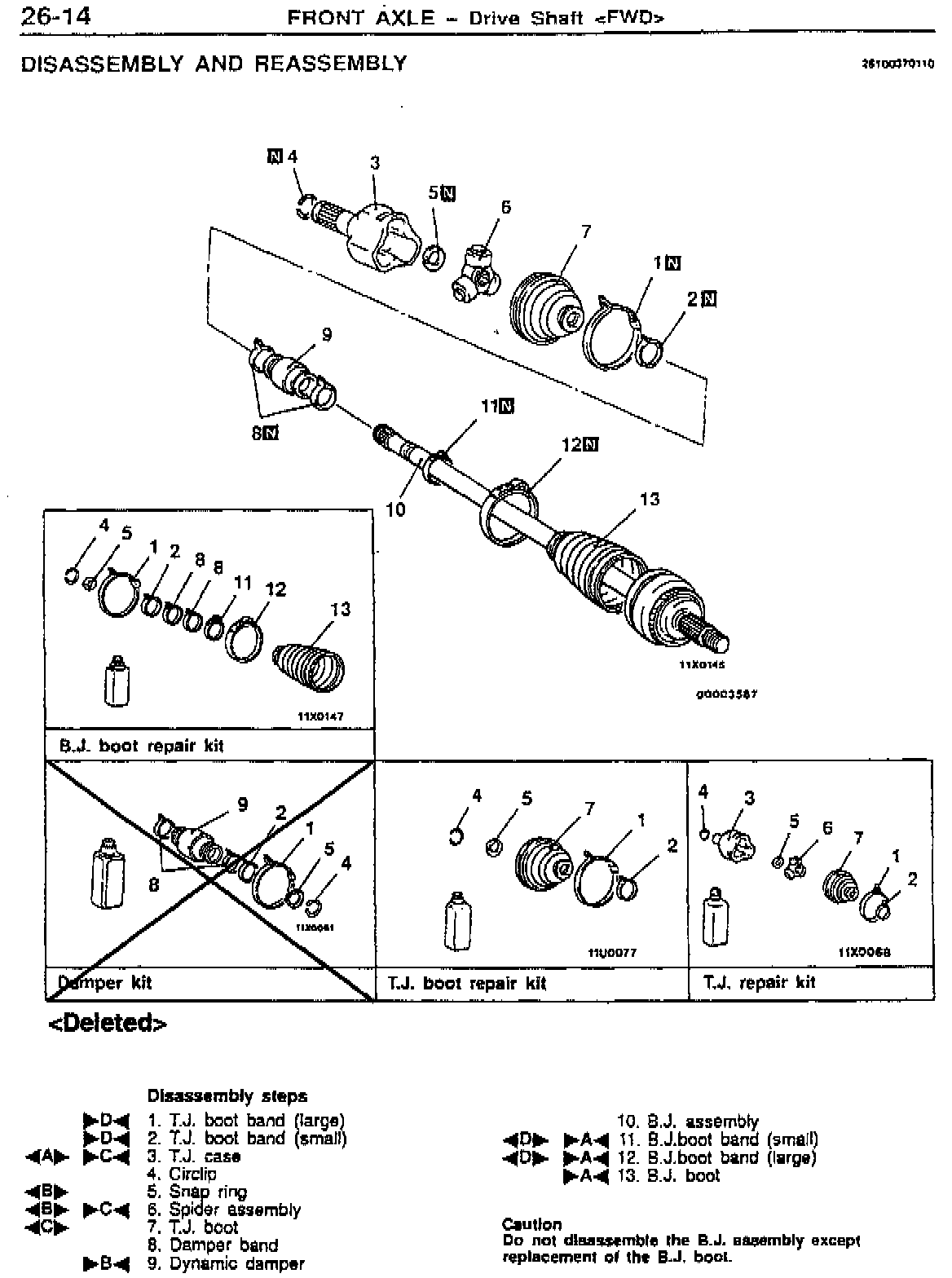

1996 Eclipse Service Manual, Volume 1, Page 26-14
Delete the information about the front drive shaft damper repair kit as shown.
