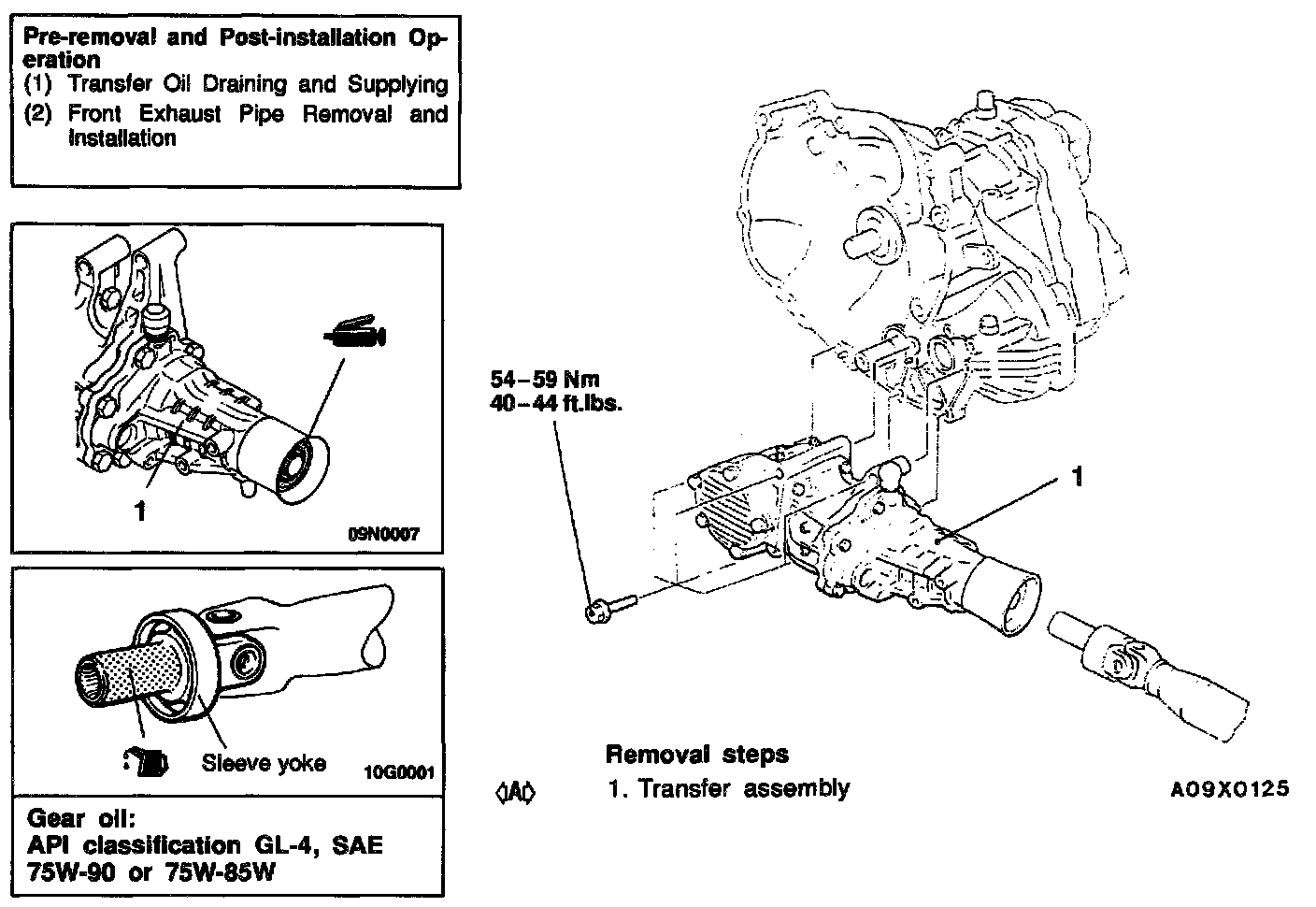

Transfer Assembly

REMOVAL AND INSTALLATION




REMOVAL SERVICE POINTS
(A) TRANSFER ASSEMBLY REMOVAL

CAUTION:

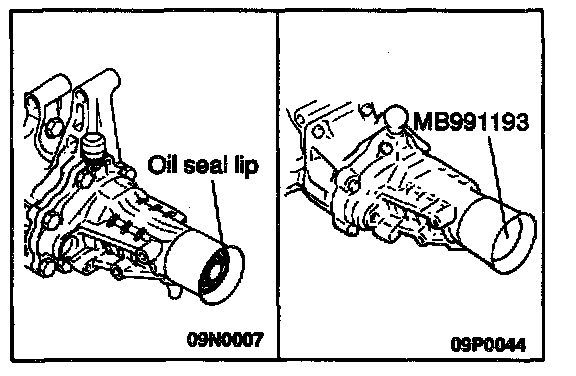

1. Do not damage the oil seal lip of the transfer.
2. Use the special tool to cover the transaxle case to prevent oil from gushing out or foreign materials from getting into the transaxle case.
