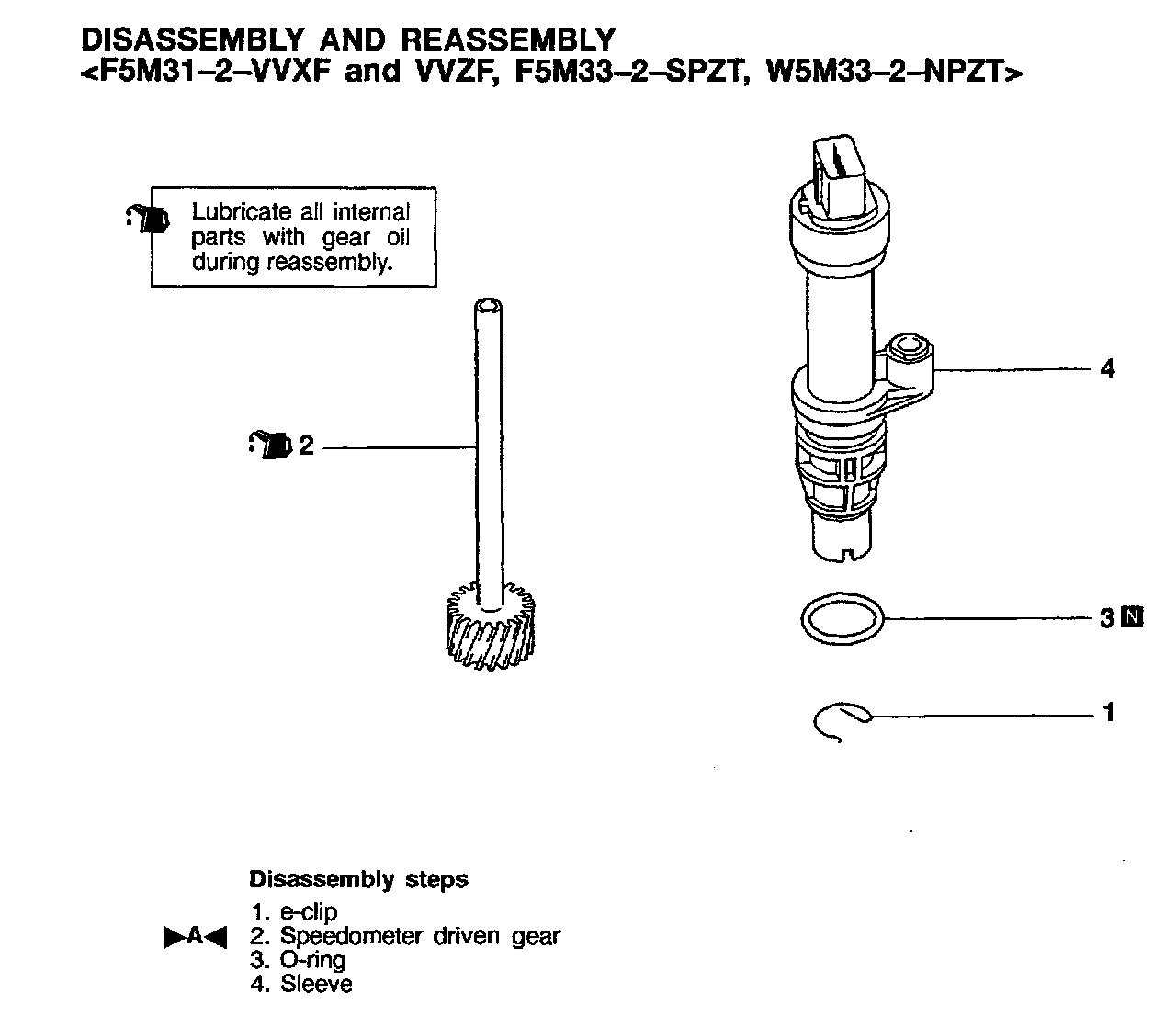

Speedometer Gear W5M33-2-NPZT






REASSEMBLY SERVICE POINTS

A. SPEEDOMETER DRIVEN GEAR INSTALLATION
(1) Apply gear oil sparingly to the speedometer driven gear shaft and insert the shaft.
