Output Shaft

FRONT OUTPUT SHAFT - AWD

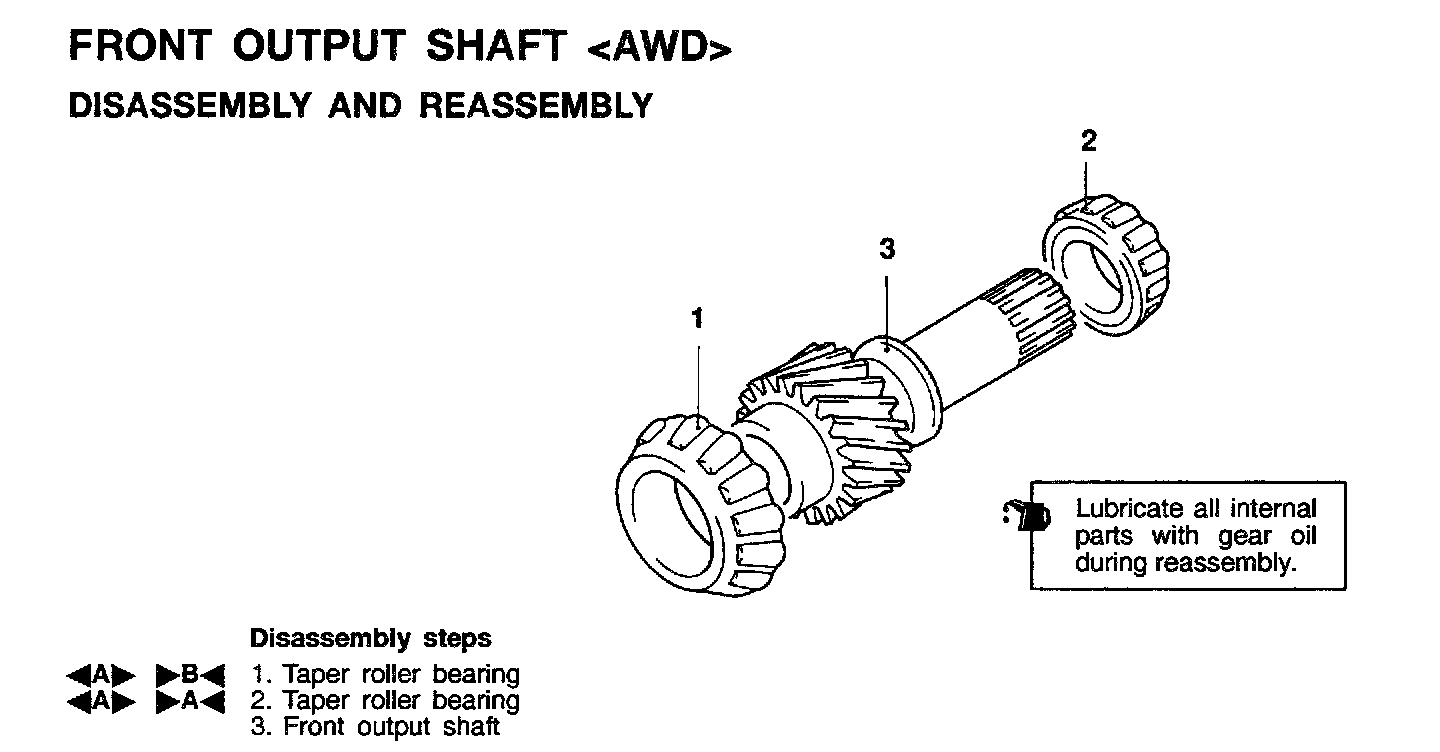

DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINTS

A. TAPER ROLLER BEARINGS REMOVAL

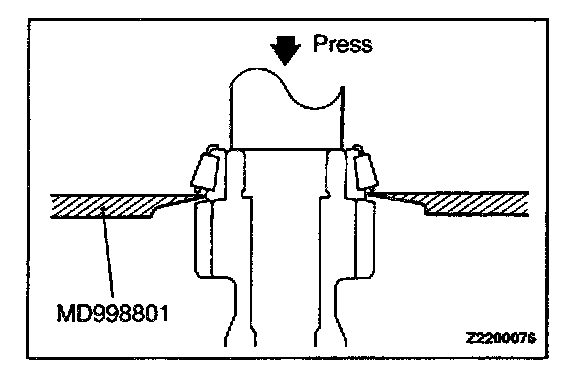

(1) Remove the taper roller bearings using the special tool.

NOTE:
(1) Do not reuse the bearing removed from the shaft.
(2) Replace the inner and outer races of the taper roller bearing as a set.

REASSEMBLY SERVICE POINTS

A. TAPER ROLLER BEARINGS INSTALLATION

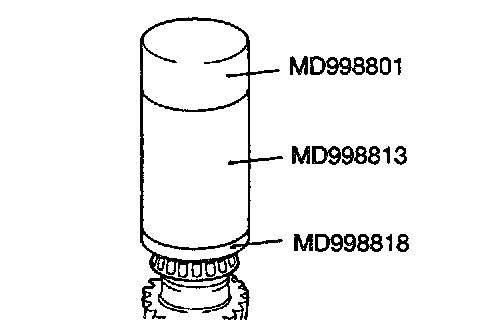

(1) Install the taper roller bearing using the special tool.

NOTE: Apply the special tool to the inner race only when installing the bearing.

B. TAPER ROLLER BEARINGS INSTALLATION

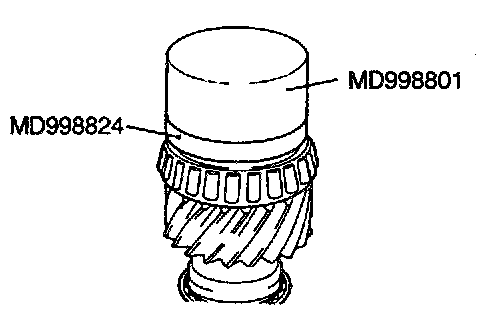

(1) Install the taper roller bearing using the special tool.

NOTE: Apply the special tool to the inner race only when installing the bearing.
