Hydraulic Hose: Service and Repair

1. Remove air cleaner assembly.
2. Drain clutch system fluid into an appropriate container.

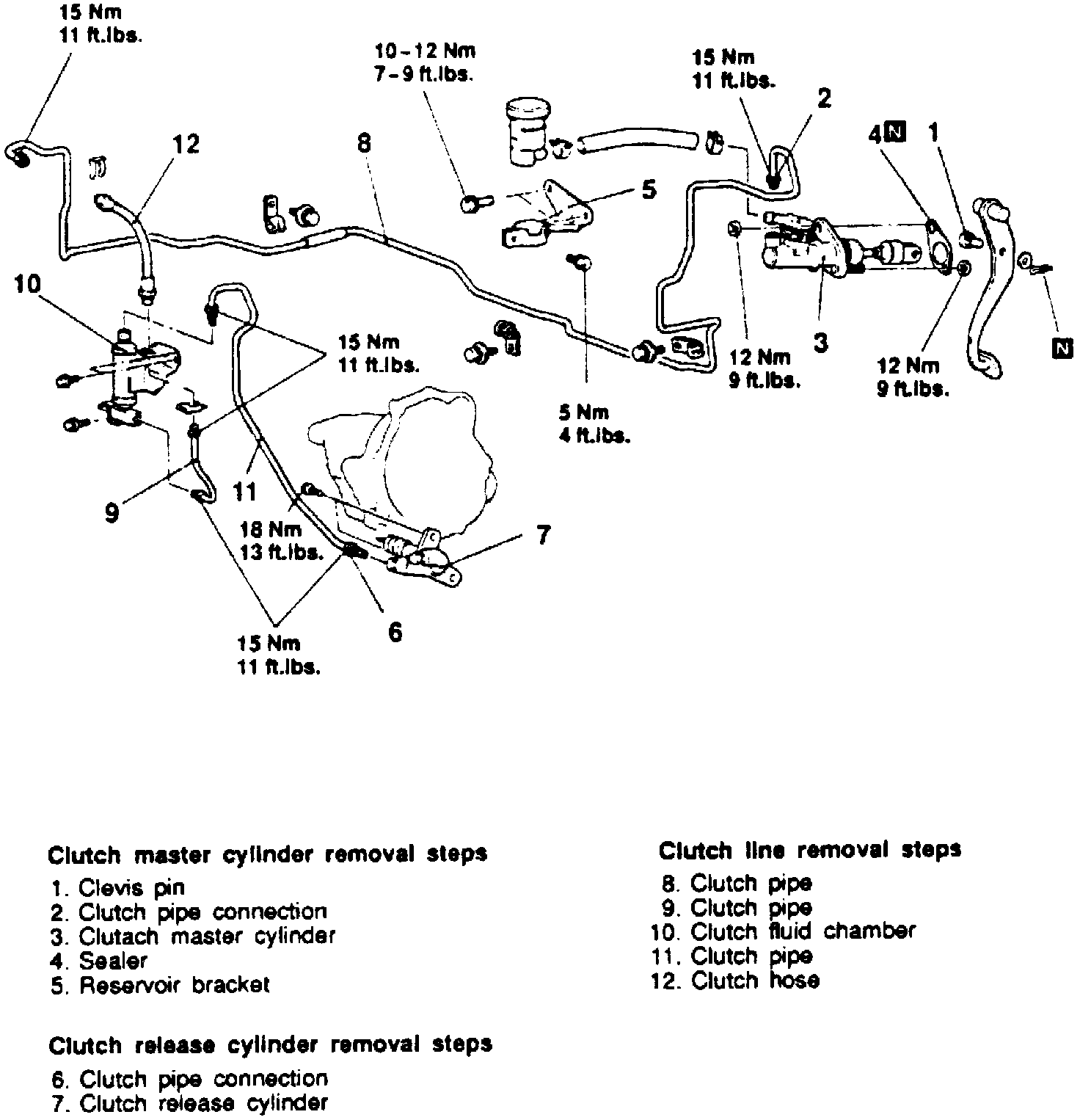

Fig. 16 Clutch Control Component Replacement:

3. Remove clutch control components in numbered sequence as shown, Fig. 16, noting the following:
a. Disconnect clutch hose from tube by securing nut on clutch hose, then loosen flare nut on clutch tube. Remove clip from clutch hose to remove clutch hose from bracket.
4. Reverse procedure to install. Temporarily tighten flare nut by hand, then tighten to specifications and ensure clutch hose does not become twisted.
