F4AC1

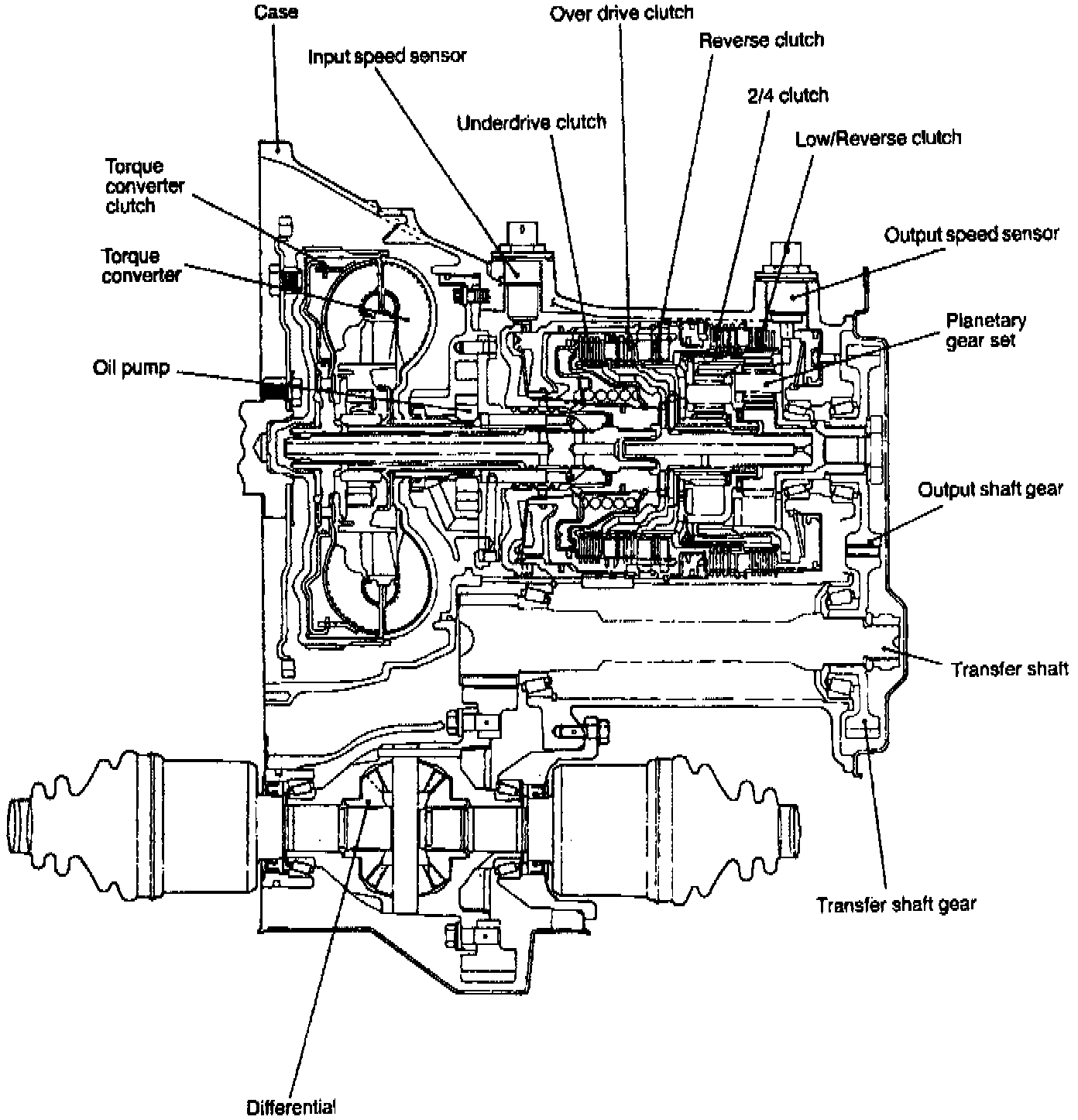

Fig. 7 Cross-Sectional View Of Automatic Transaxle:

The F4AC1 automatic transaxle, Fig. 7, is a fully adaptive, electronically controlled four speed full automatic transaxle. The F4AC1 transaxle uses a three element type torque converter with torque converter clutch.
The F4AC1 provides four forward speeds with ratios of 2.84:1,1.57:1, 1.00:1 and 0.069:1. Reverse ratio is 2.21:1 and the final gear ratio is 4.08:1. It includes damper, underdrive, reverse, 2/4, and low/reverse clutches.
It is also equipped with output and input speed sensors.
