Antenna - Inspection and Caution Revision

No:
TSB-97-54-013

DATE:
November, 1997

MODEL:
SEE BELOW

SUBJECT:
GLASS ANTENNA INSPECTION AND CAUTIONS - SERVICE MANUAL REVISION

[TSB Revision TSB-97-54-013]

PURPOSE

This bulletin contains additional glass antenna cautions and inspection procedures.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES
1992-97 3000GT
1992-96 Diamante
1995-97 Eclipse
1996-97 Eclipse Spyder
1994-97 Galant
1992-97 Montero
1997 Montero Sport

AFFECTED SERVICE MANUAL

1992-96 3000GT Service Manual, Volume 2, Page 54-189
1997 3000GT Service Manual, Volume 2, Page 54-87
1992-96 Diamante Service Manual, Volume 2, Page 54-127
1995 Eclipse Service Manual, Volume 2, Page 54-121
1996 Eclipse Service Manual, Volume 2, Pages 54-142
1997 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 54-91
1994-95 Galant Service Manual, Volume 2, Page 54-129
1996 Galant Service Manual, Volume 2, Page 54-127
1997 Galant Service Manual, Volume 2, Page 54-82
1992-95 Montero Service Manual, Volume 2, Page 54-144
1996 Montero Service Manual, Volume 2, Page 54-115
1997 Montero Service Manual, Volume 2, Page 54-78
1997 Montero Sport Service Manual. Volume 2, Page 54-173
1997 Montero Sport Technical Information Manual, Page 7-9

SERVICE MANUAL REVISION

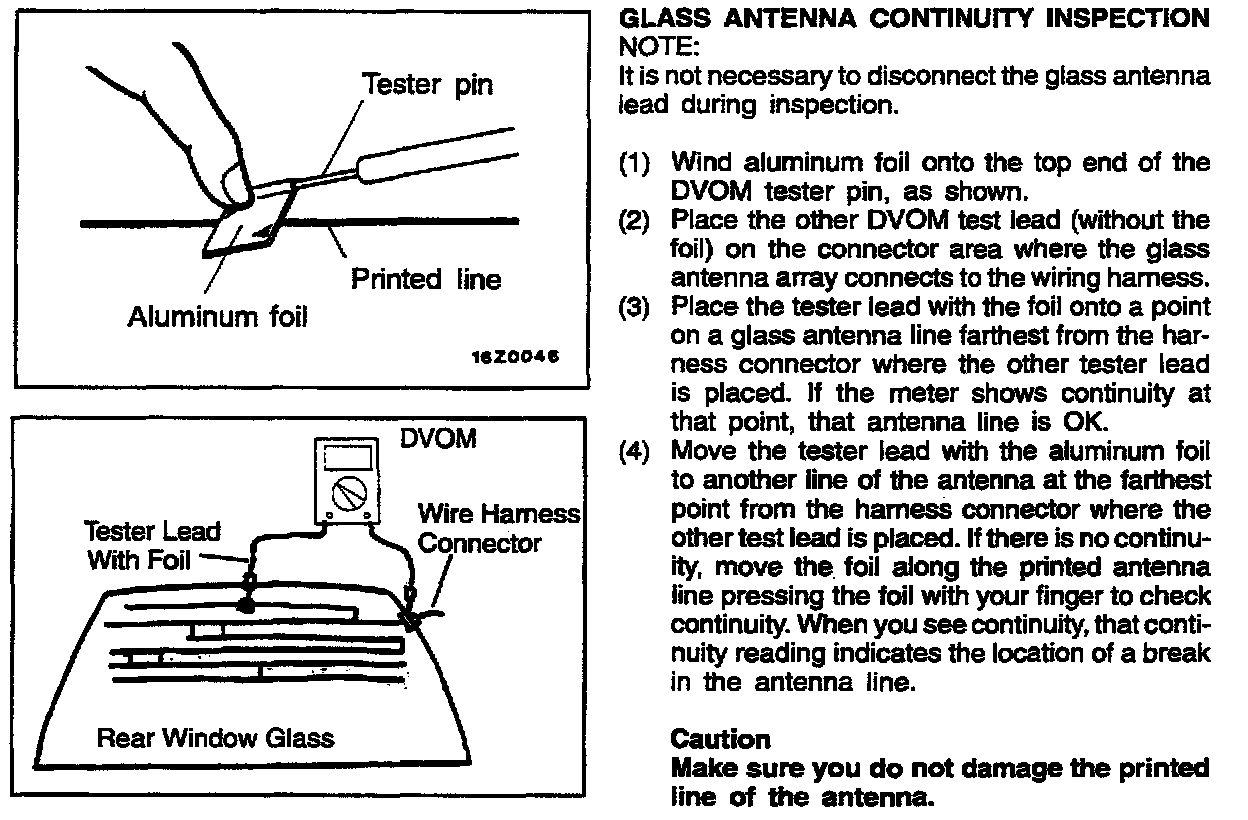

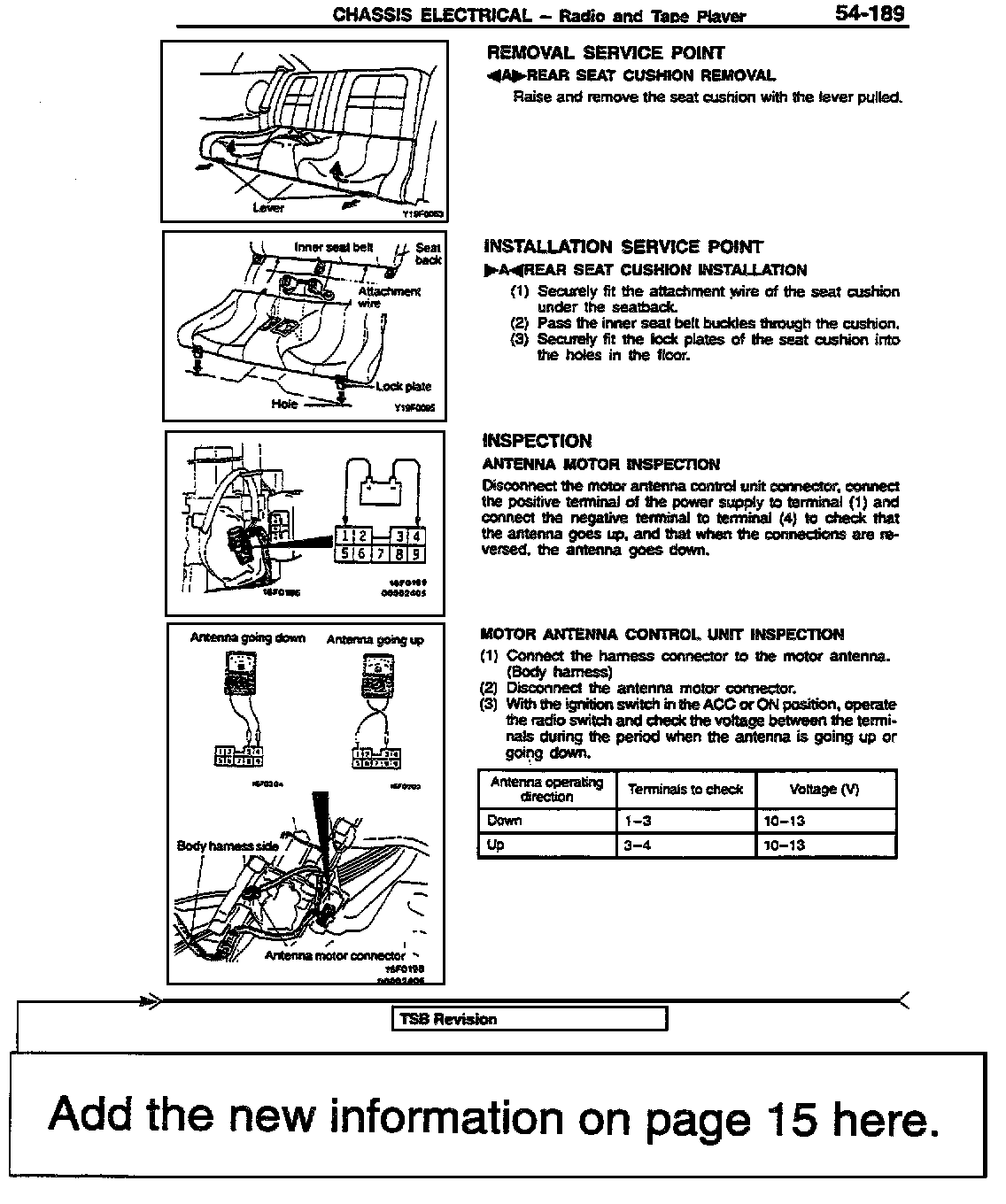

1992-96 3000GT Service Manual, Volume 2, Page 54-189 Add the new glass antenna caution and inspection procedures on page 15 of this bulletin to the area shown.

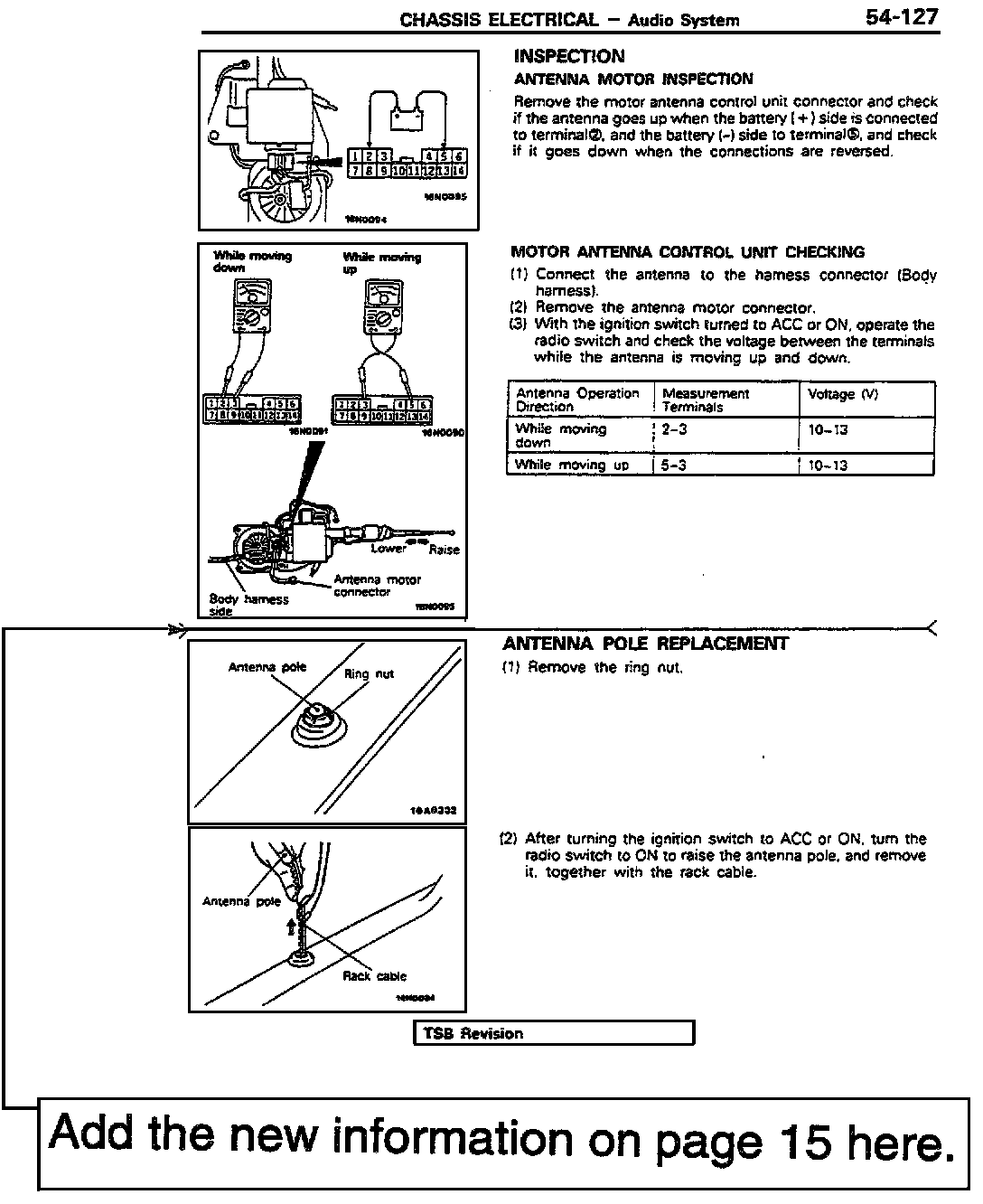

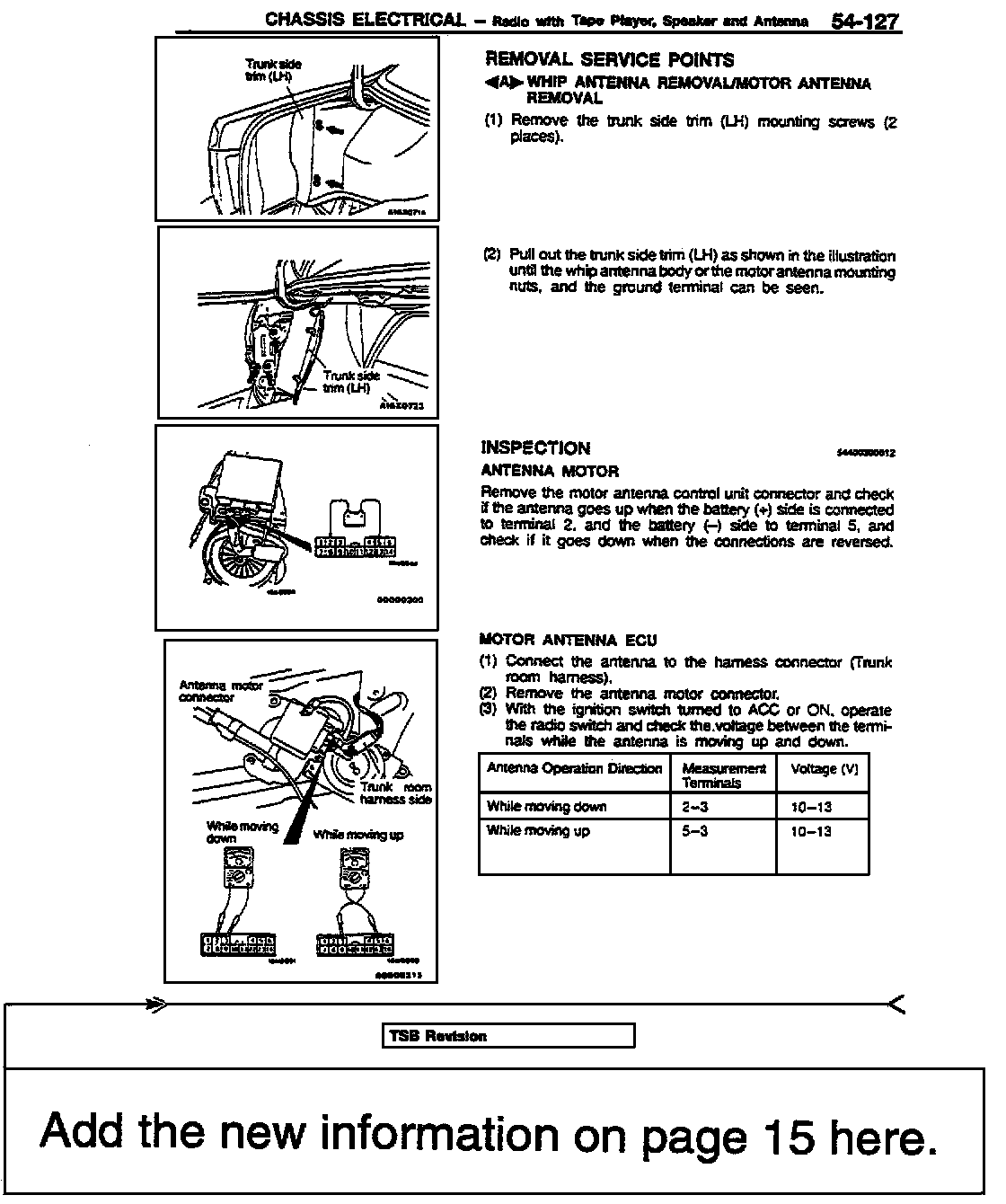

1992-96 Diamante Service Manual, Volume 2, Page 54-127 Add the new glass antenna caution and inspection procedures in the next to the last image of this bulletin to the area show.

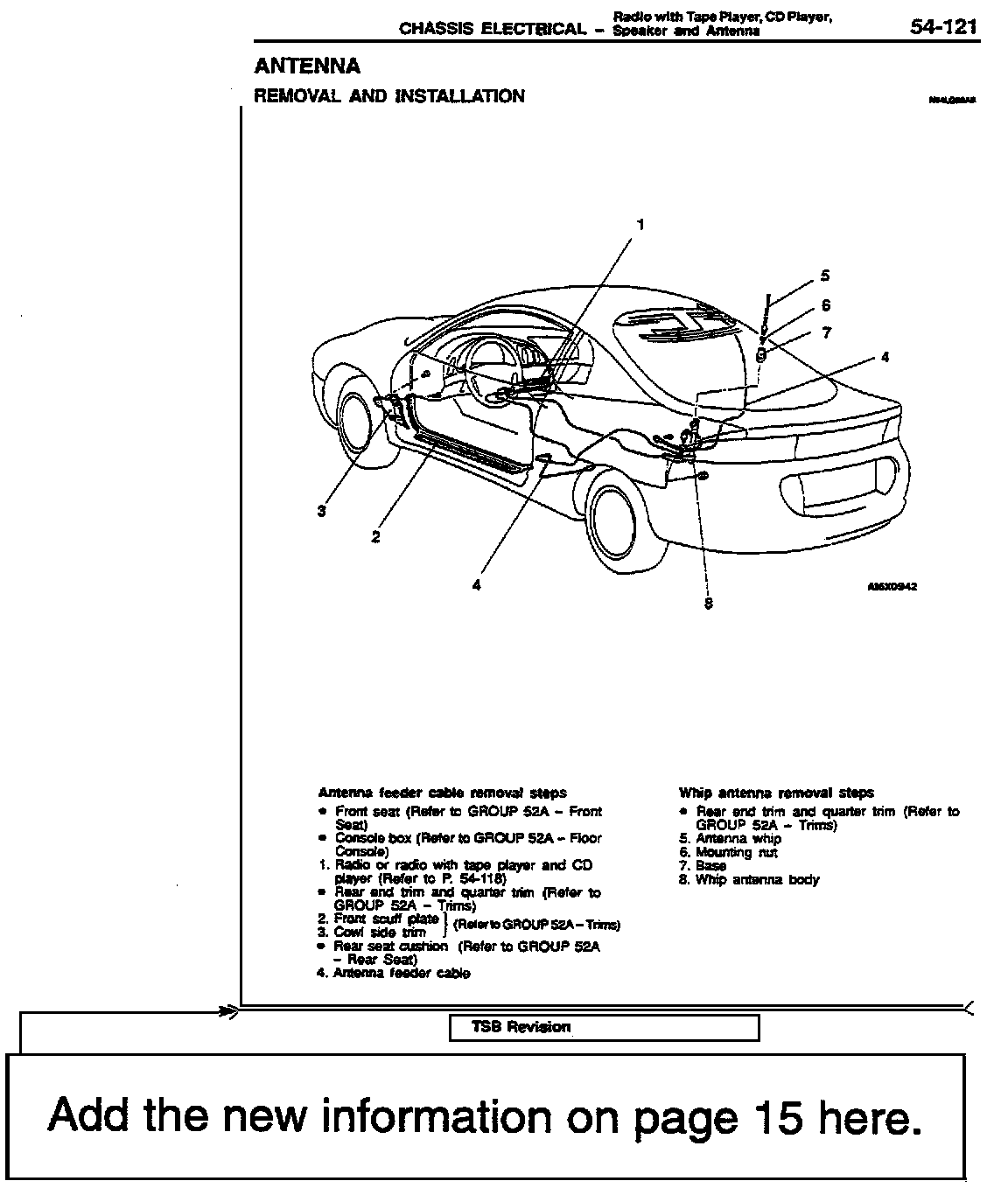

1995 Eclipse Service Manual, Volume 2, Page 54-121 Add the new glass antenna caution and inspection procedures in the next to the last image of this bulletin to the area shown.

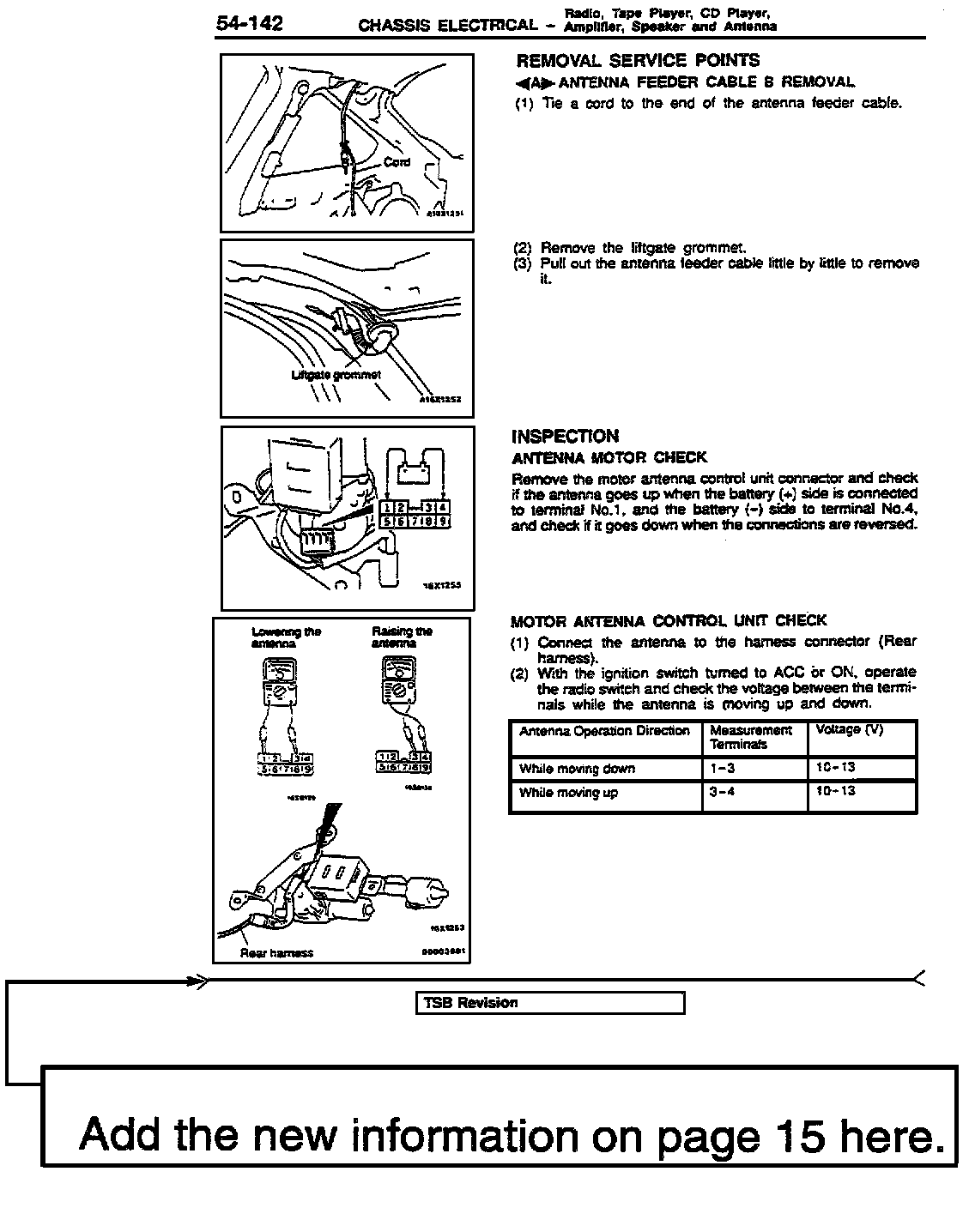

1996 Eclipse Service Manual, Volume 2, Page 54-142 Add the new glass antenna caution and inspection procedures in the next to the last image of this bulletin to the area shown.

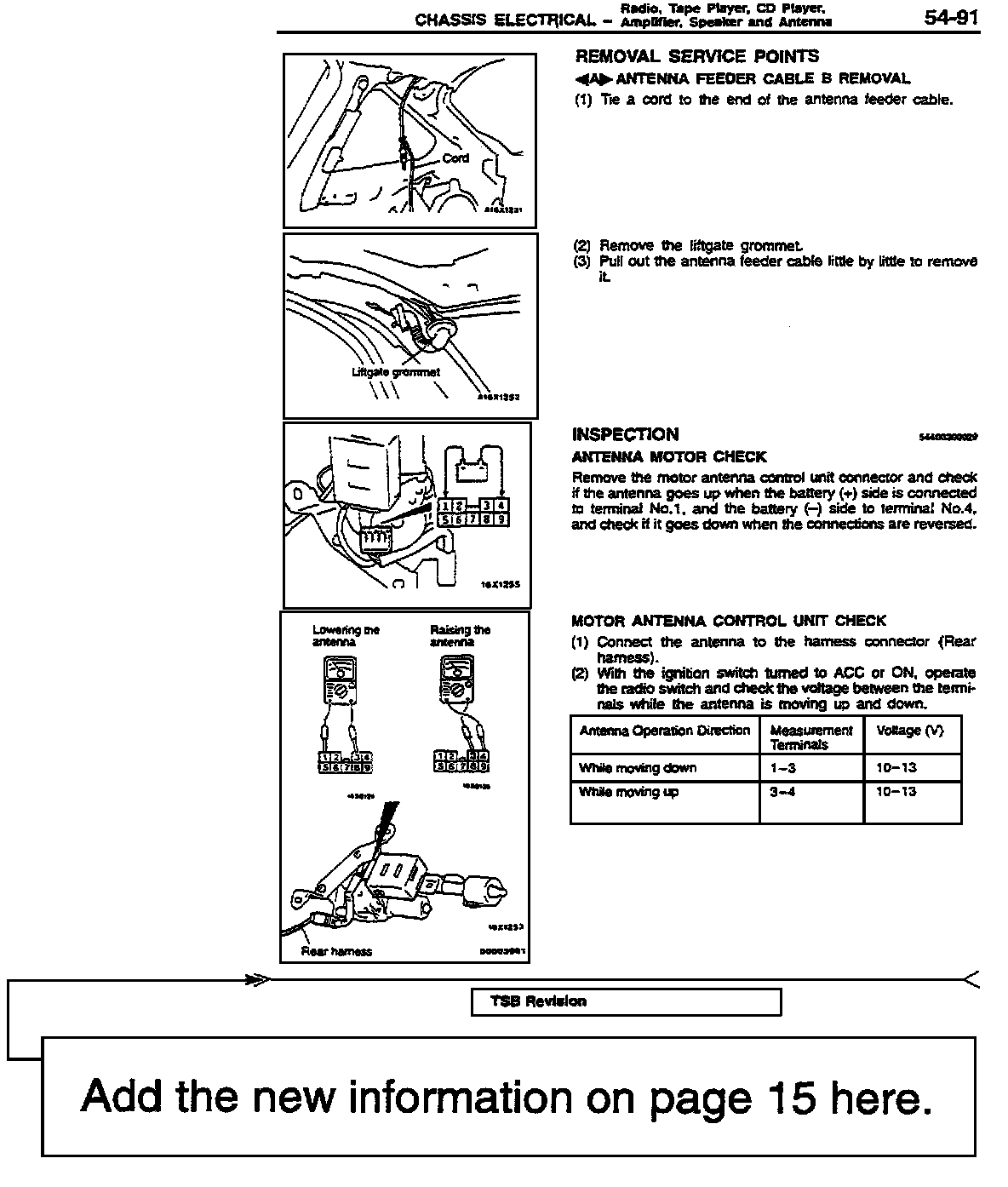

1997 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 54-91 Add the new glass antenna caution and inspection procedures in the next to the last image of this bulletin to the area shown.

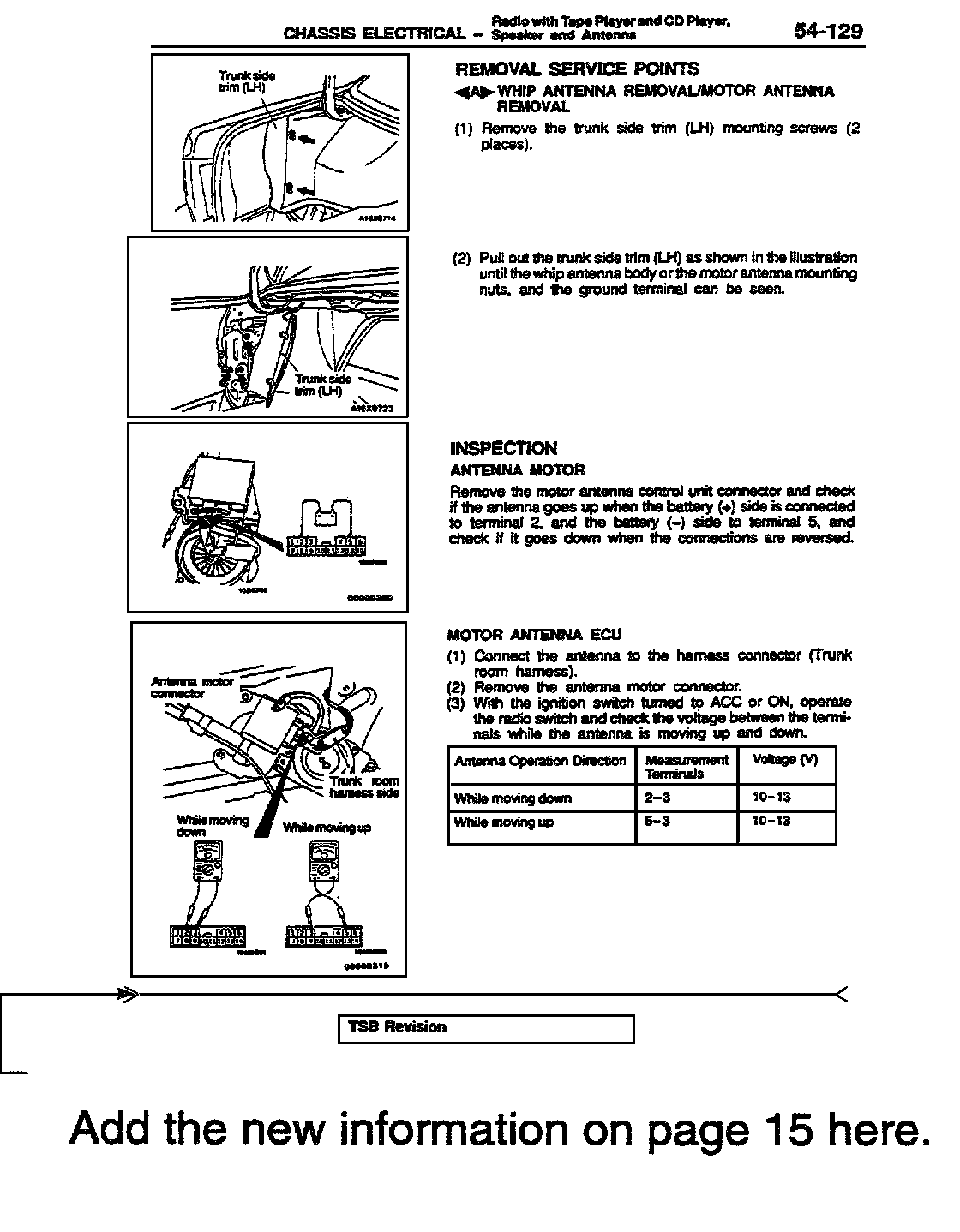

1994-95 Galant Service Manual, Volume 2, Page 54-129 Add the new glass antenna caution and inspection procedures on page 15 of this bulletin to the area shown.





1996 Galant Service Manual, Volume 2, Page 54-127 Add the new glass antenna caution and inspection procedures in the next to the last image of this bulletin to the area shown.





1997 Galant Service Manual, Volume 2, Page 54-82 Add the new glass antenna caution and inspection procedures in the next to the last image of this bulletin to the area shown.

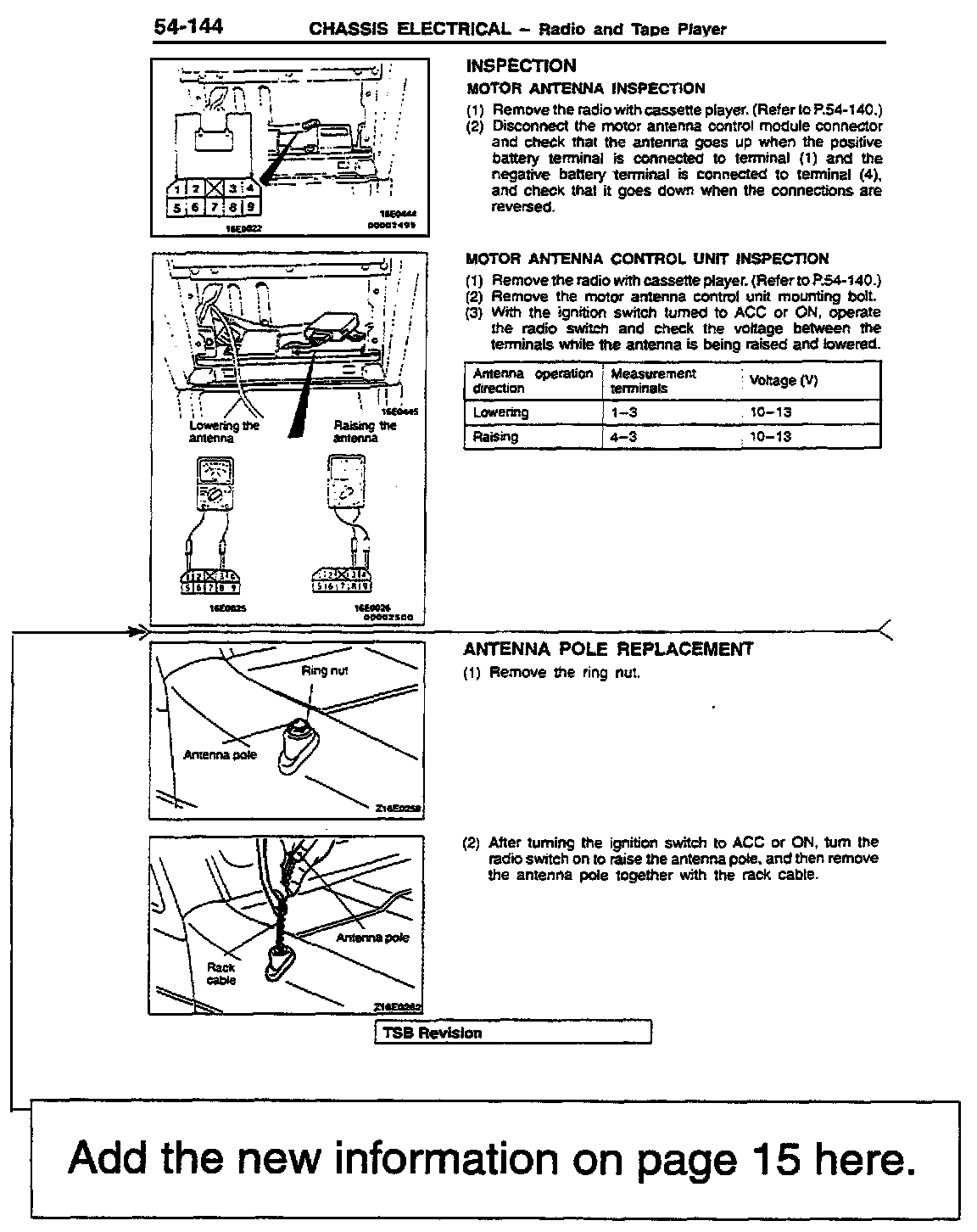

1992-95 Montero Service Manual, Volume 2, Page 54-144 Add the new glass antenna caution and inspection procedures in the next to the last image of this bulletin to the area shown.

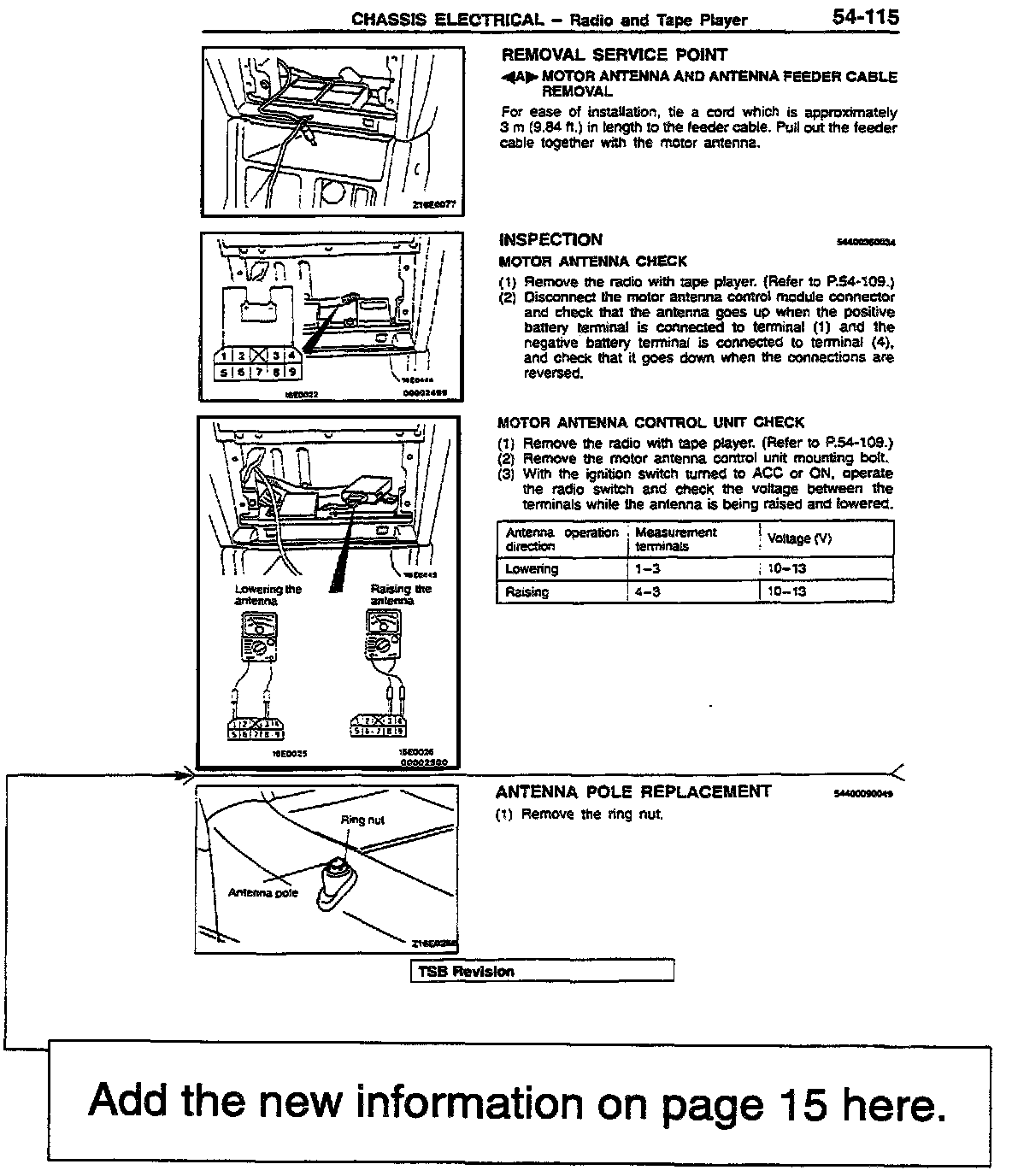

1996 Montero Service Manual, Volume 2, Page 54-115 Add the new glass antenna caution and inspection procedures in the next to the last image of this bulletin to the area shown.

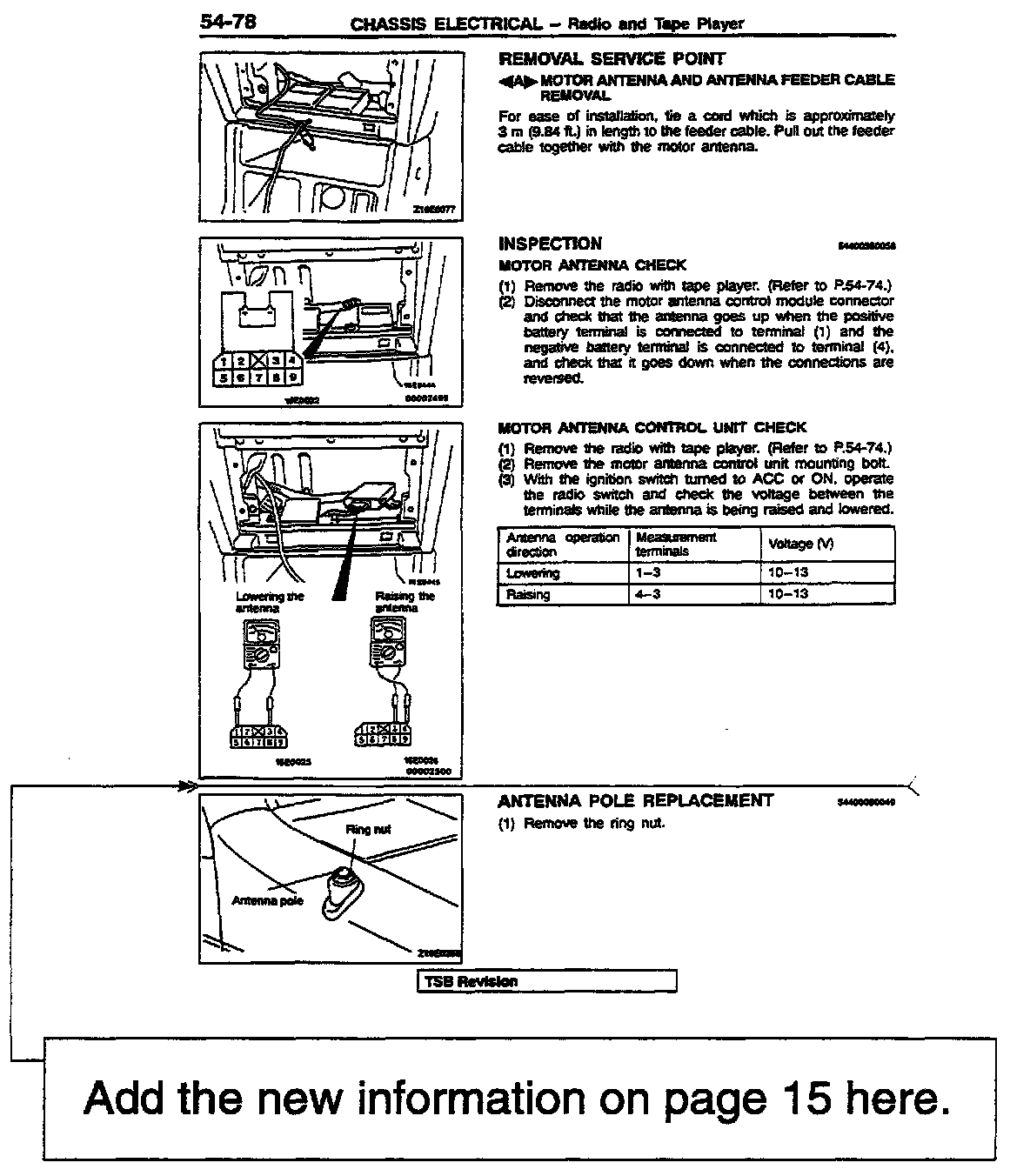

1997 Montero Service Manual, Volume 2, Page 54-78 Add the new glass antenna caution and inspection procedures in the next to the last image of this bulletin to the area shown.





1997 Montero Sport Service Manual, Volume 2, Page 54-173 Add the new glass antenna caution and inspection procedures in the next to the last image of this bulletin to the area shown.





Add the inspection procedures and caution to the proper place on each page as indicated in this bulletin.

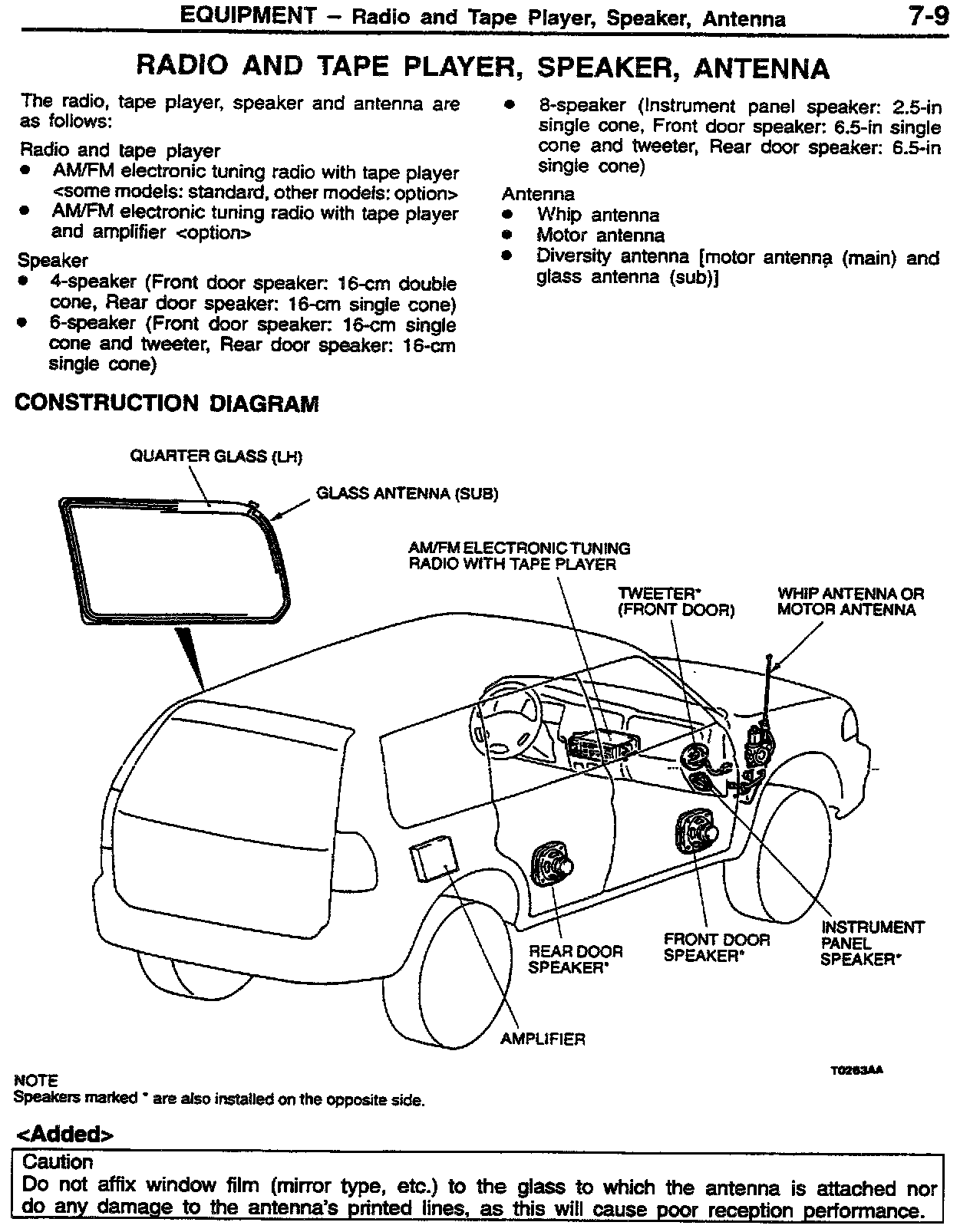

1997 Montero Sport Technical Information Manual, Page 7-9 Add the new glass antenna caution as shown.
