ABS - Data List Reference/Actuator Test Reference Table
NO.: TSB-98-35-004DATE: July, 1998
MODEL: 1995-97 Eclipse
SUBJECT: ABS DATA LIST REFERENCE AND ACTUATOR TEST REFERENCE TABLES - SERVICE MANUAL REVISION
[TSB Revision TSB-98-35-004]
PURPOSE
This bulletin contains new ABS Data List Reference and Actuator Test Reference tables which were inadvertently omitted from the original service manuals. Add this new information to the end of each indicated page in the listed service manuals.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1995-97 Eclipse
AFFECTED SERVICE MANUALS
1995 Eclipse Service Manual, Volume 1, Pages 35B-19, 35C-17
1996 Eclipse Service Manual, Volume 1, Pages 35B-19, 350-17
1997 Eclipse & Eclipse Spyder Service Manual, Volume 1, Pages 35B-20, 35C-17
SERVICE MANUAL REVISIONS

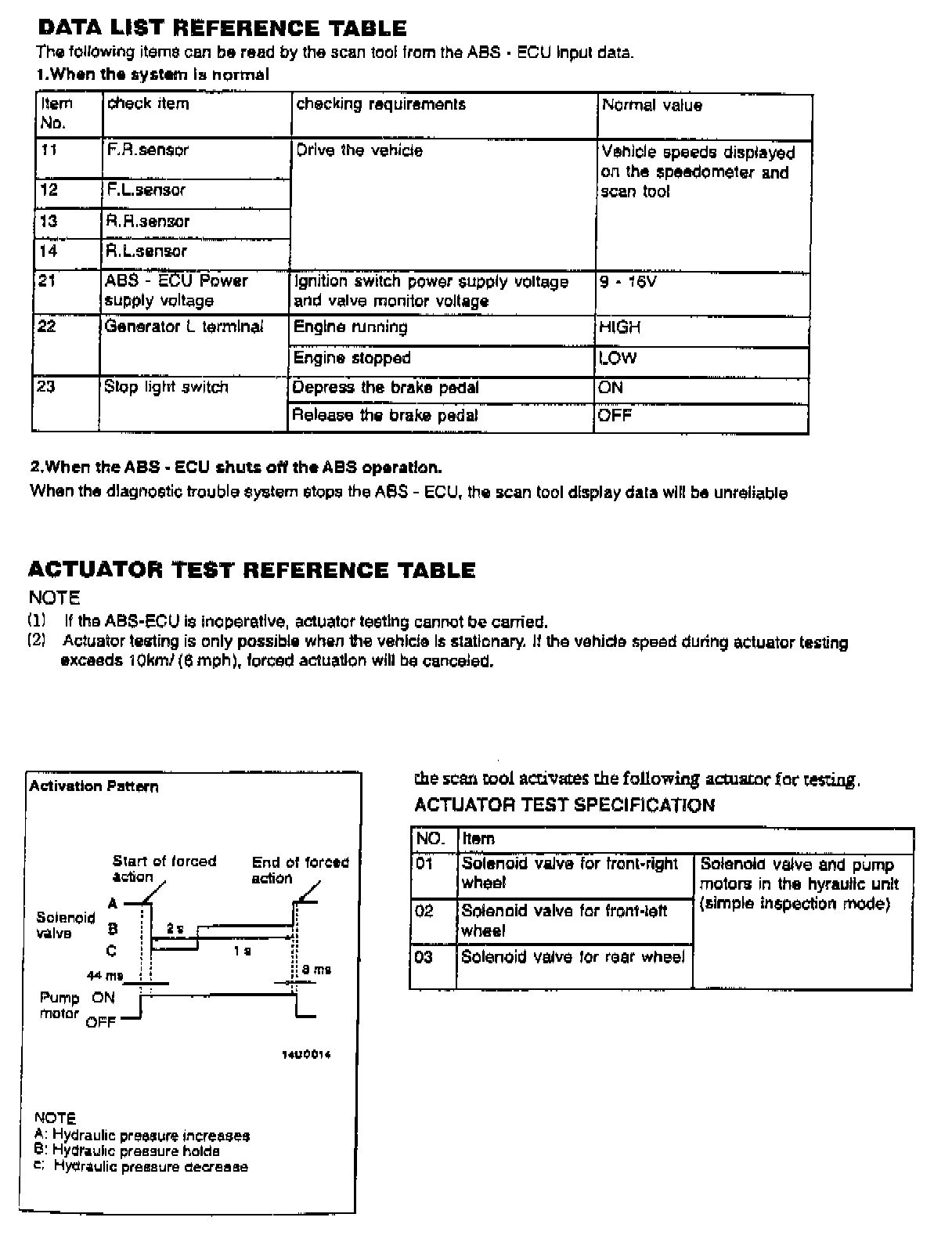

Add the following new Data List Reference Table and Actuator Test Reference Table to the end of the following service manual pages:
1995 & 1996 Eclipse Service Manuals, Volume 1, Page 35B-19
1997 Eclipse & Eclipse Spyder Service Manual, Volume 1, Page 35B-20

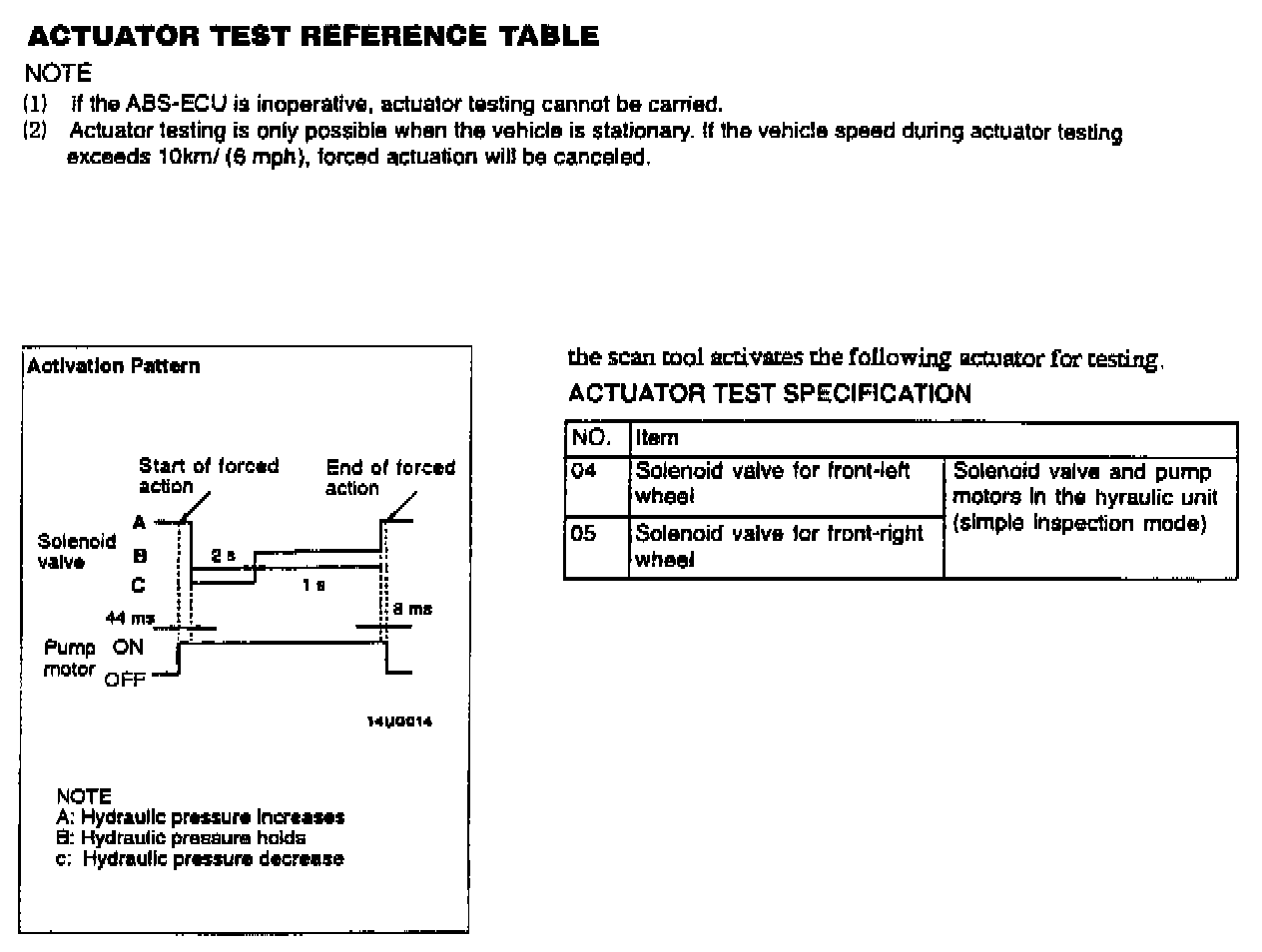

Add the following new Actuator Test Reference Table to the end of the following service manual pages:
1995 & 1996 Eclipse Service Manuals, Volume 1, Page 35C-17
1997 Eclipse & Eclipse Spyder Service Manual, Volume 1, Page 35C-17
