Lateral Lower Arm Ball Joint - Torque Revision
NO.: TSB-96-33A-004DATE: October, 1996
MODEL: See Below
SUBJECT:
REVISED LATERAL LOWER ARM BALL JOINT TORQUE SPECIFICATION - SERVICE MANUAL REVISION
TSB Revision TSB-96-33A-004
PURPOSE
The standard breakaway torque specification for the lateral lower arm ball joint in the listed service manuals is incorrect. The correct torque specification is: 1.5 Nm (13 in.lbs.) or less.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1995-96 Eclipse
1994-96 Galant
AFFECTED SERVICE MANUAL
1995 Eclipse Service Manual, Volume 1, Pages 33A-3 and 33A-12
1996 Eclipse Service Manual, Volume 1, Pages 3?A-3 and 33A-13
1994-95 Galant Service Manual, Volume 1, Pages 33A-3 and 33A-12
1996 Galant Service Manual, Volume 1, Pages 33A-3 and 33A-12
SERVICE MANUAL REVISION

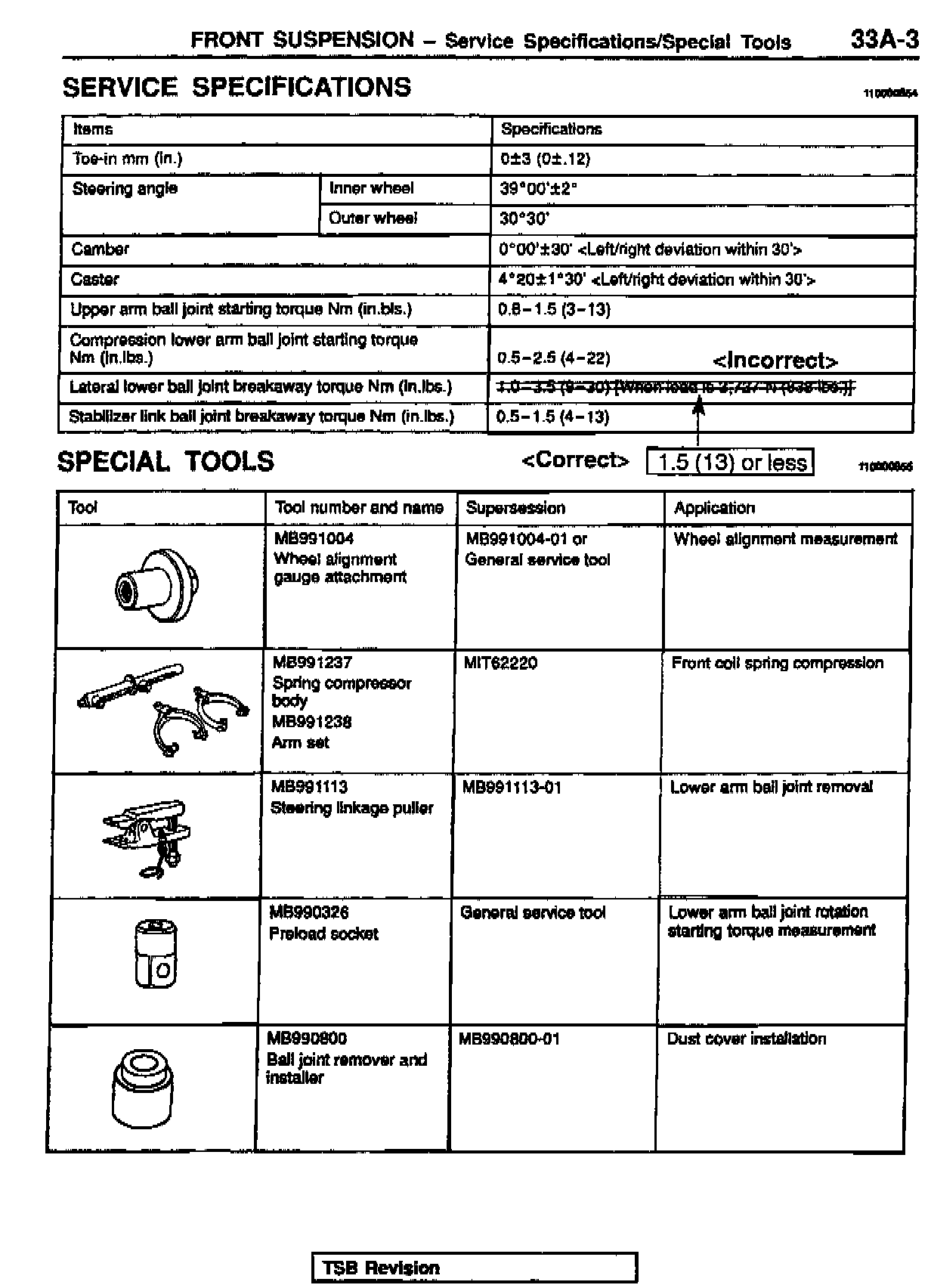

1995 Eclipse Service Manual Volume 1, Page 33A-3
Correct the lateral lower arm ball joint breakaway torque specification as shown.

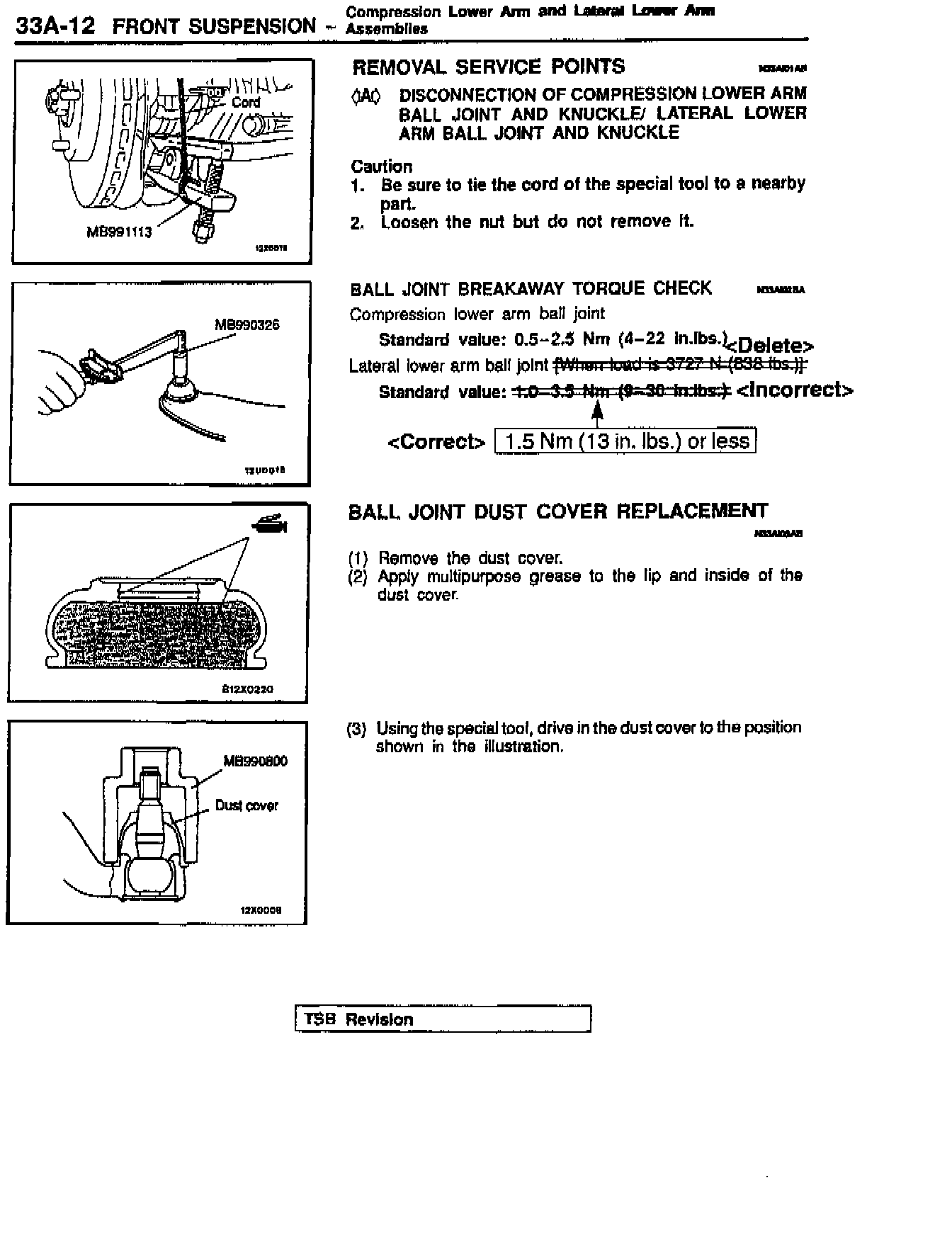

1995 Eclipse Service Manual Volume 1, Page 33A-12
Correct the lateral lower arm ball joint breakaway torque specification as shown.

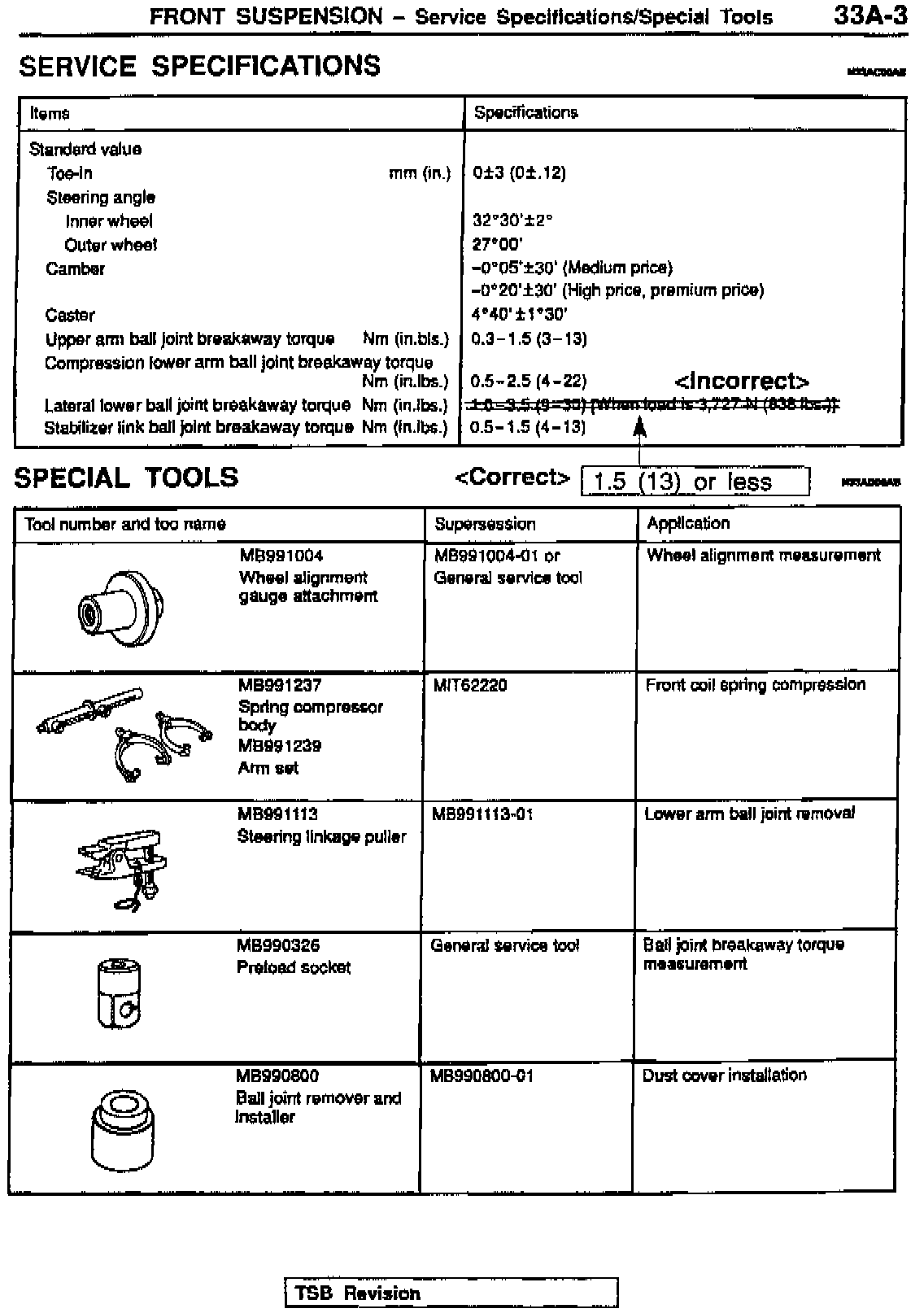

1996 Eclipse Service Manual Volume 1, Page 33A-3
Correct the lateral lower arm ball joint breakaway torque specification as shown.

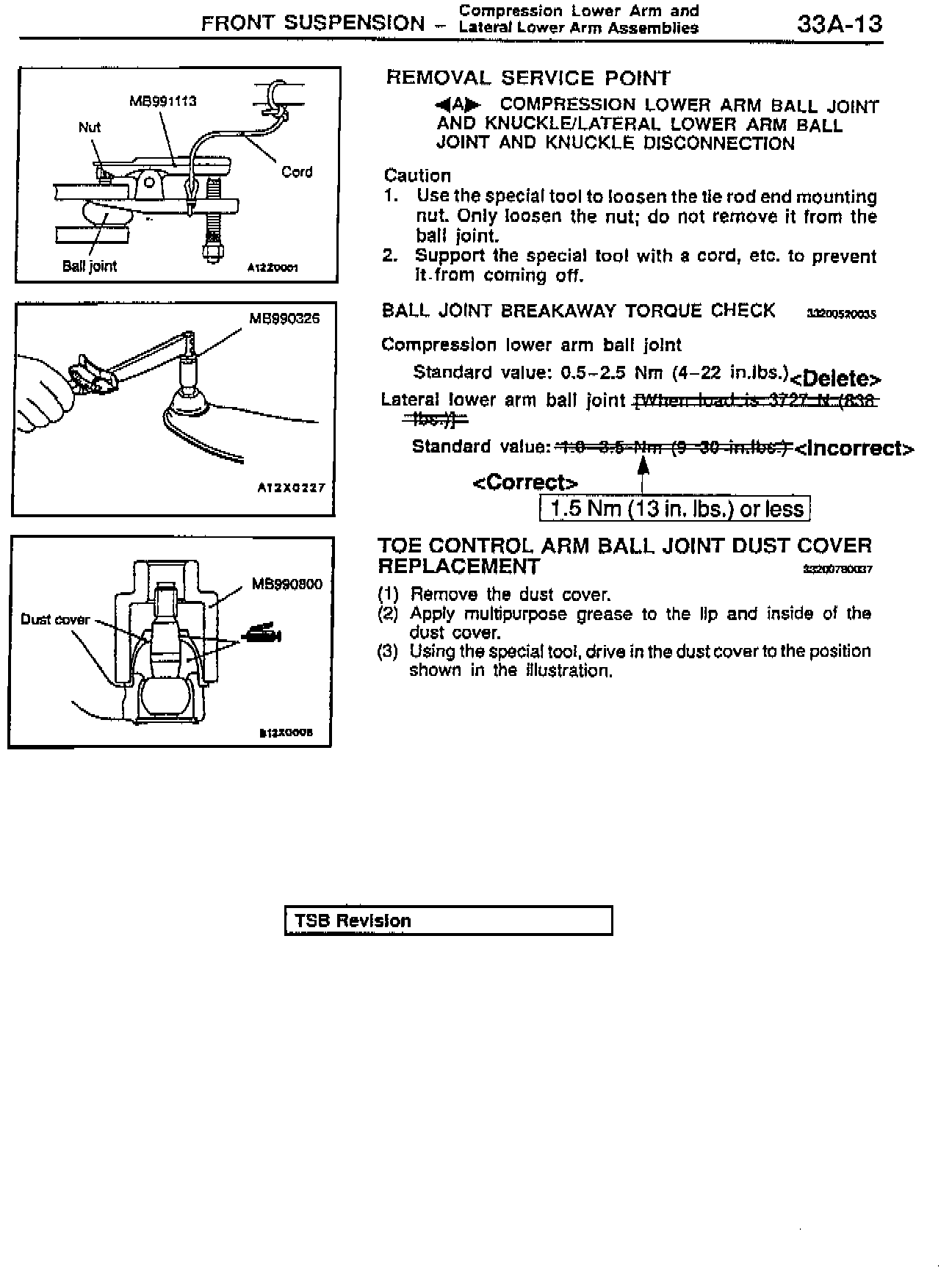

1996 Eclipse Service Manual Volume 1, Page 33A-13
Correct the lateral lower arm ball joint breakaway torque specification as shown.

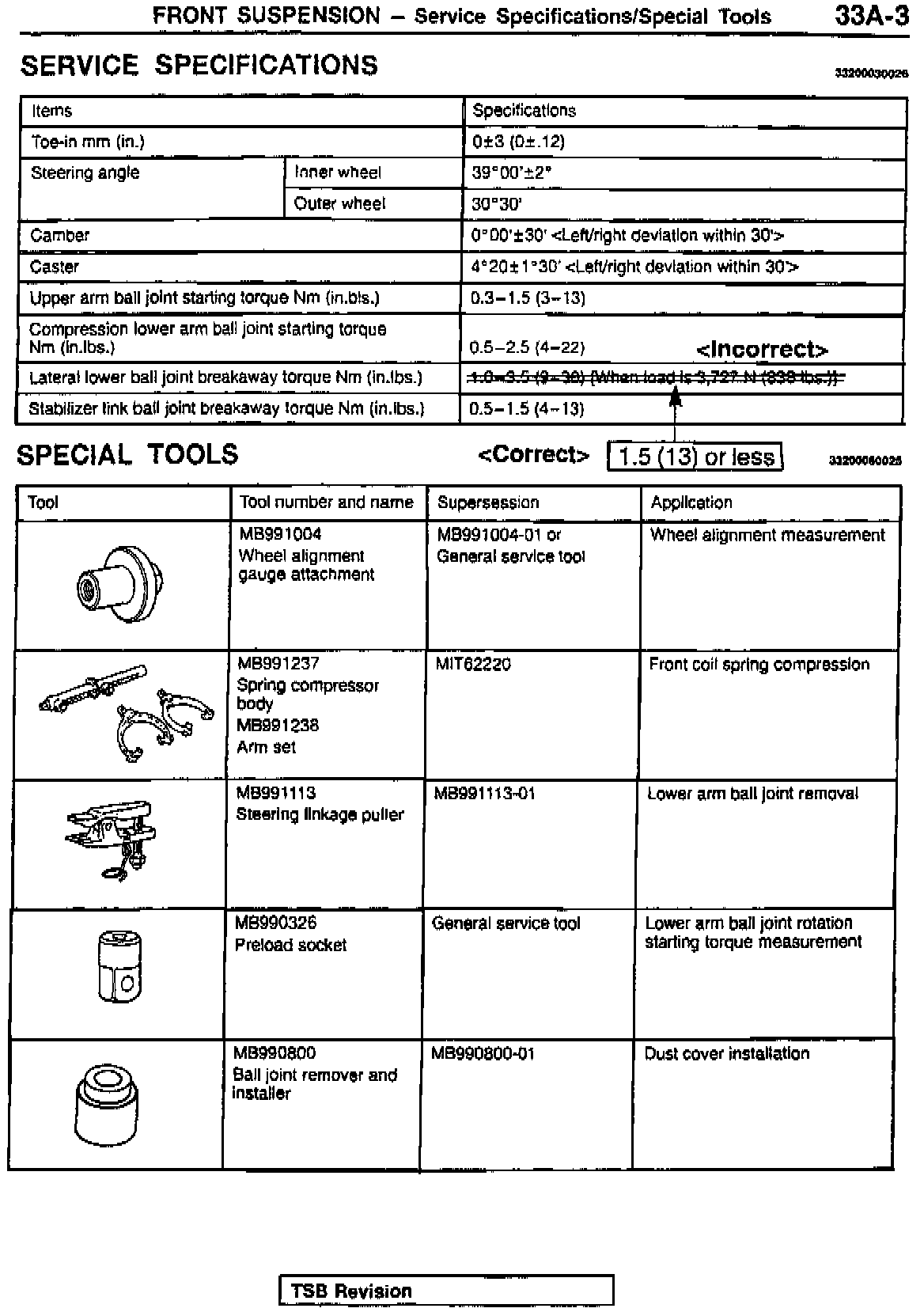

1994-95 Galant Service Manual Volume 1, Page 33A-3
Correct the lateral lower arm ball joint breakaway torque specification as shown.

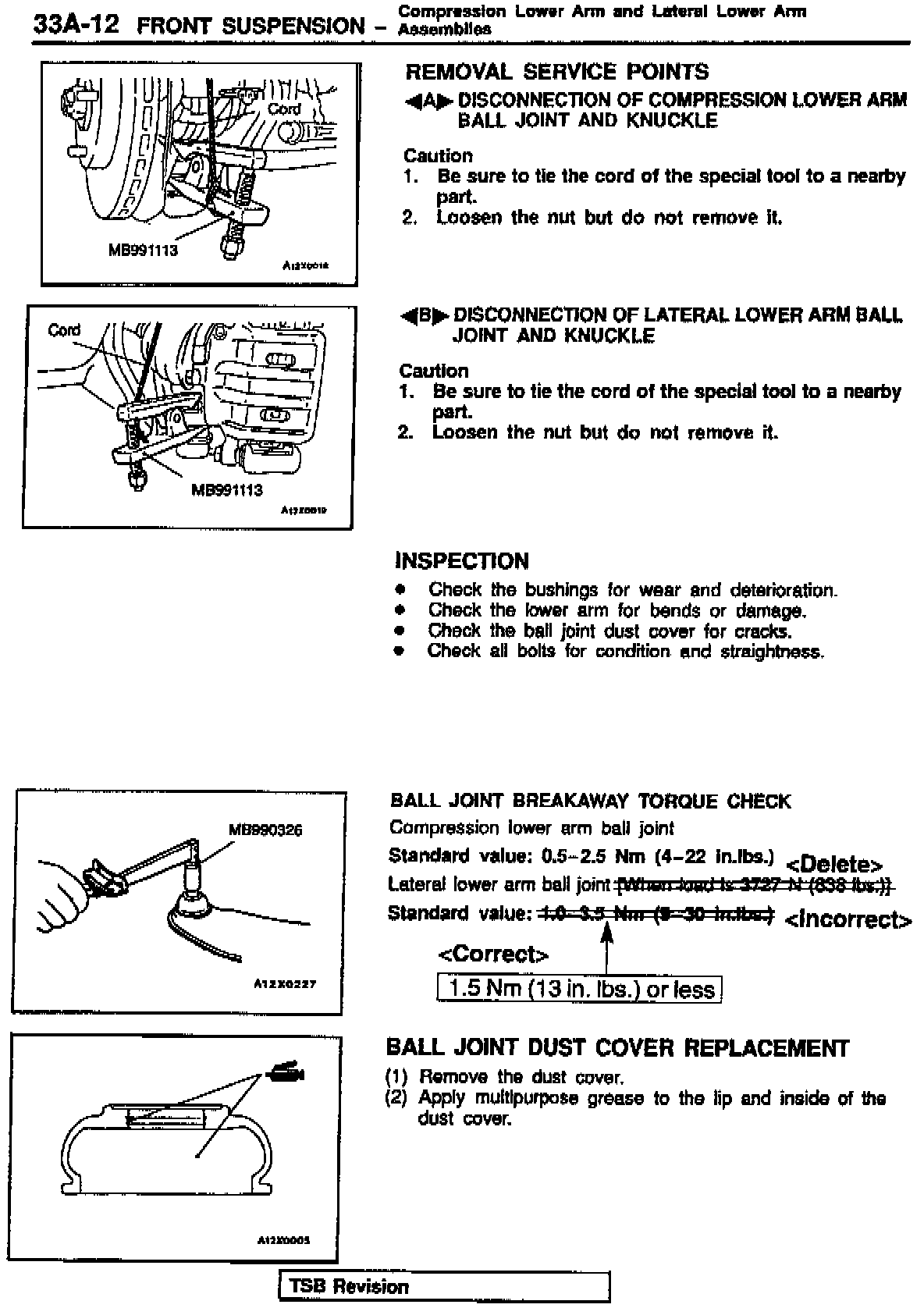

1994-95 Galant Service Manual Volume 1, Page 33A-12
Correct the lateral lower arm ball joint breakaway torque specification as shown.

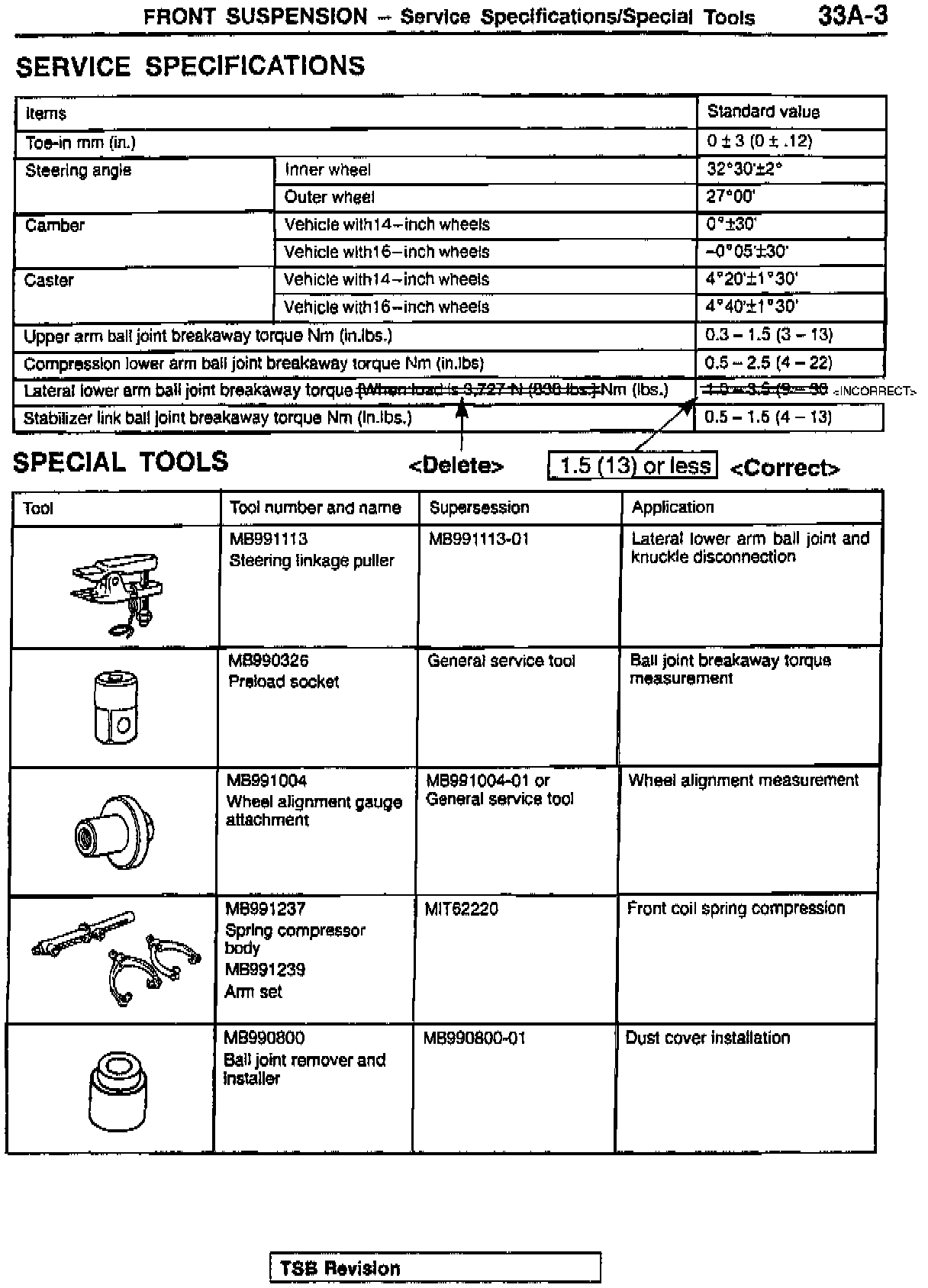

1996 Galant Service Manual Volume 1, Page 33A-3
Correct the lateral lower arm ball joint breakaway torque specification as shown.
1996 Galant Service Manual Volume 1, Page 33A-12
Correct the lateral lower arm ball joint breakaway torque specification as shown.
