Strut Service

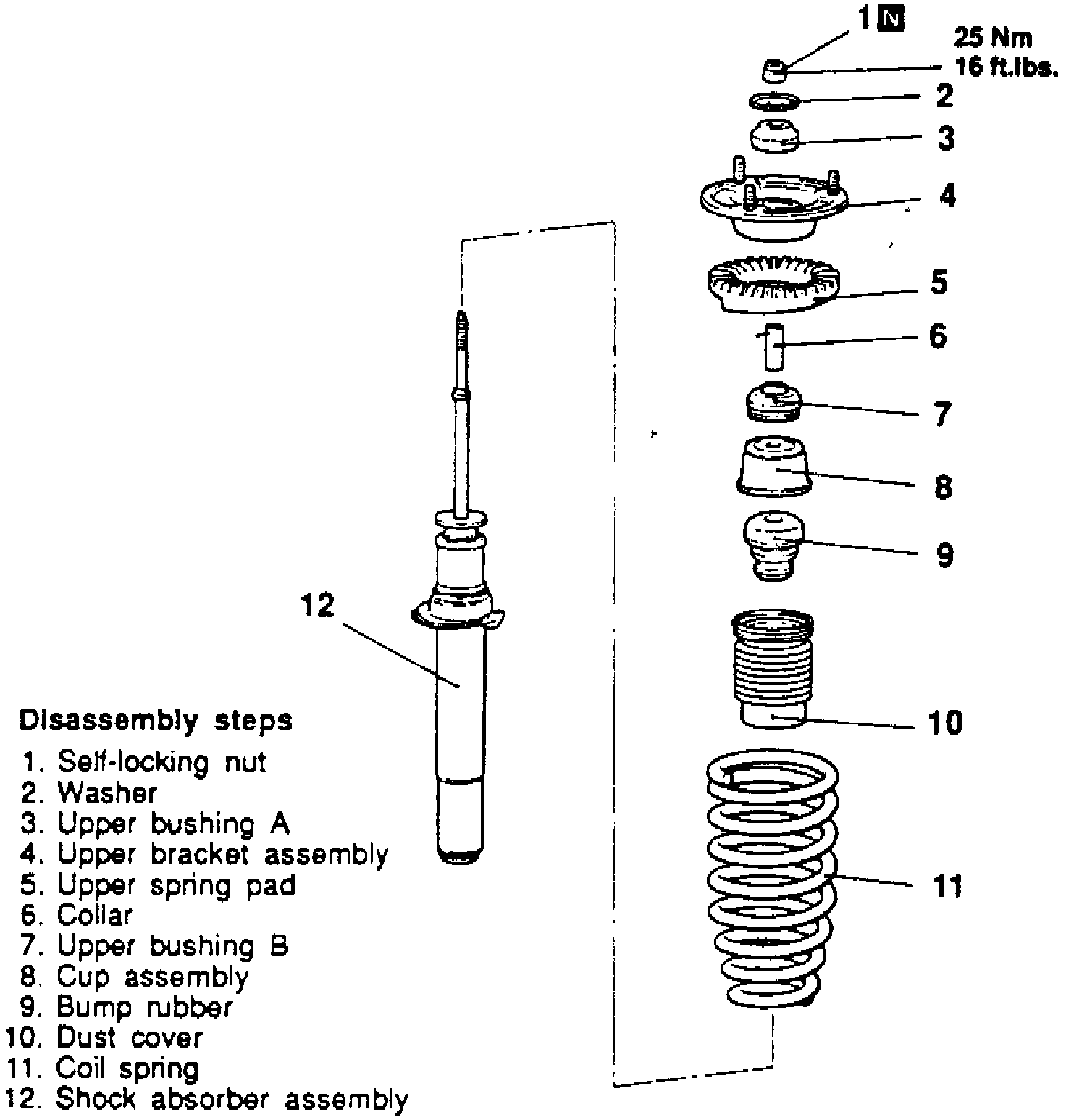

Fig. 14 Strut Disassembly:

Disassemble strut in numbered sequence, Fig. 22, noting the following:
1. Compress spring using spring compression tools No. MB991237 and MB991239, or equivalents, to ease in disassembly and assembly.
