Upper Control Arm

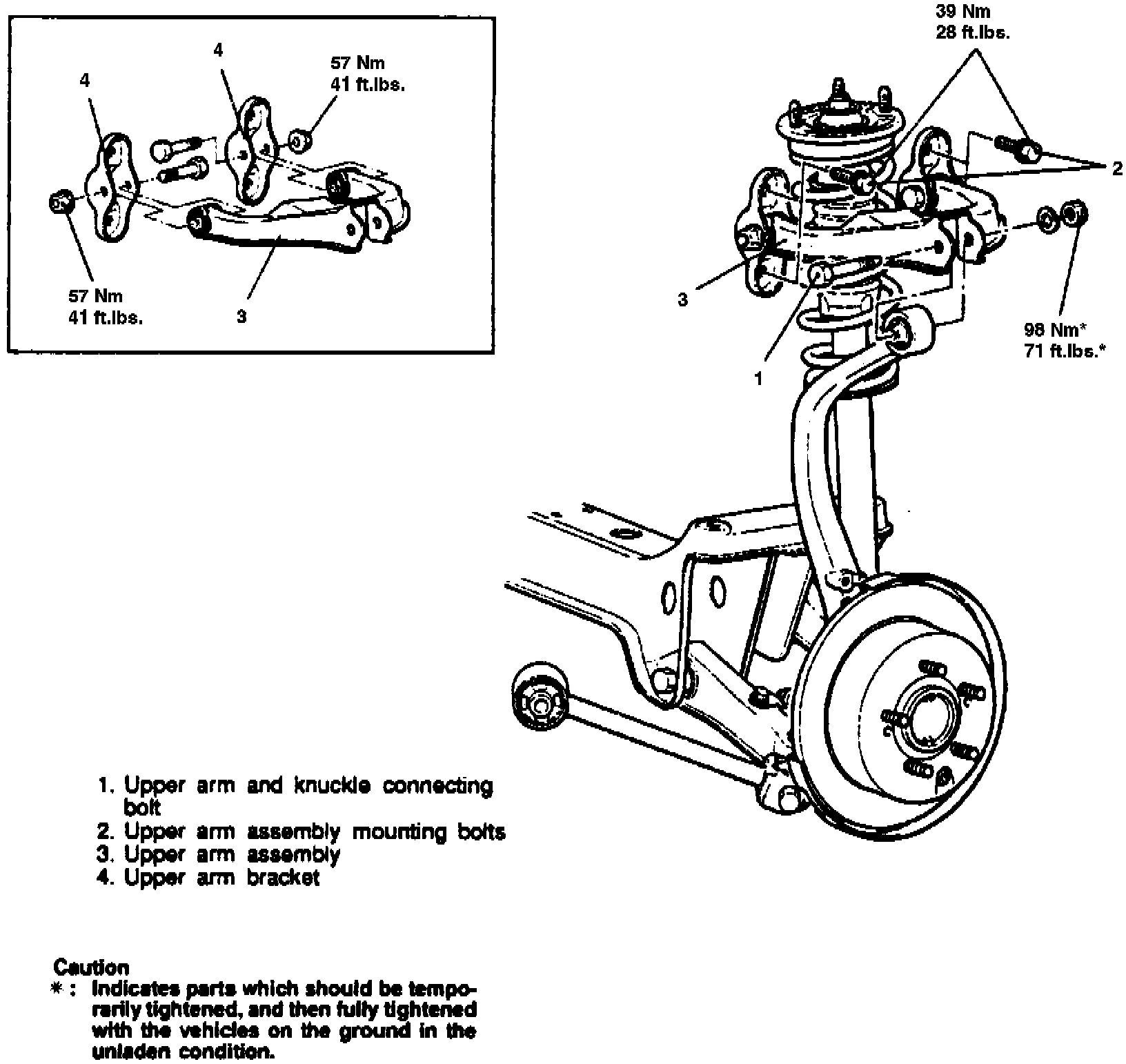

Fig. 28 Upper Arm Assembly:

1. Remove upper arm and connecting bolt, Fig. 28.
2. Remove upper arm assembly mounting bolts, then upper arm assembly.
3. Remove upper arm bracket.
4. Reverse procedure to install, noting the following:

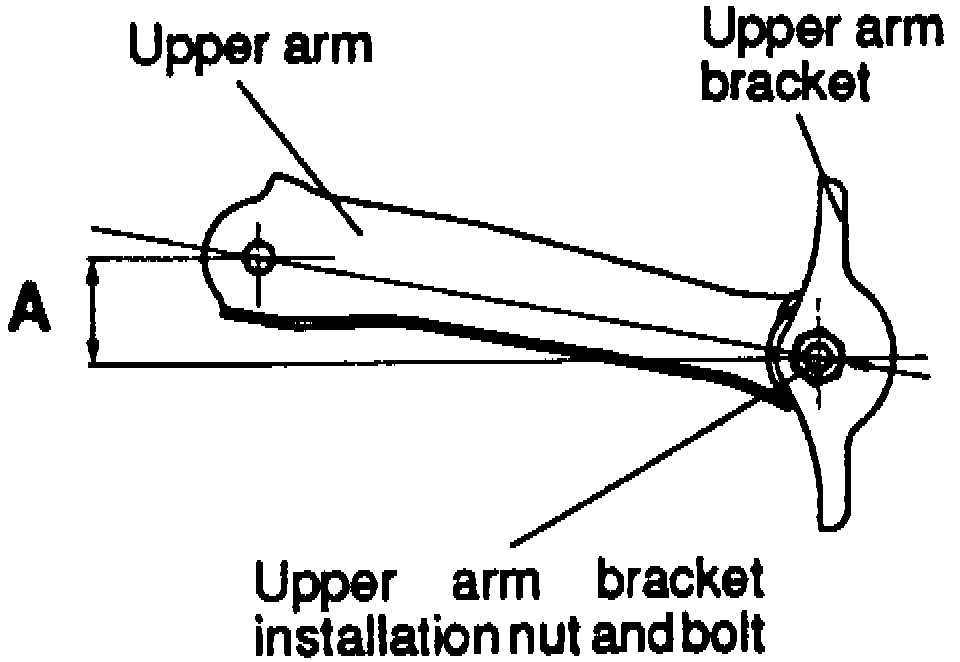

Fig. 29 Upper Arm Bracket Dimension:

a. Install the upper arm bracket so that dimension "A" is 1.46 ±0.08 inch, Fig. 29.

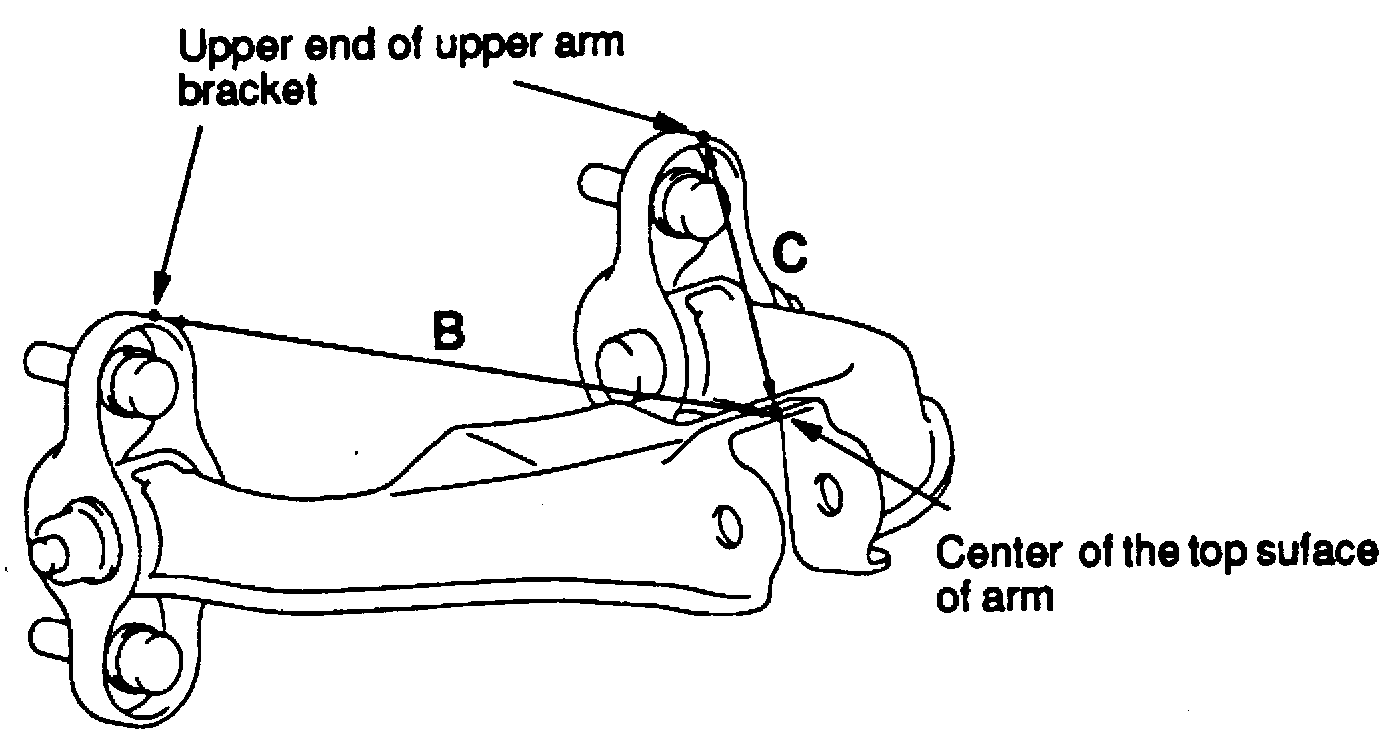

Fig. 30 Upper Arm Bracket Dimensions B & C:

b. Install the upper arm bracket so that dimension "B" is 8.40 inch, Fig. 30.
c. Install the upper arm bracket so that dimension "C" is 10.6 inch.
