Electrical Circuit - Diagram Corrections
NO: TSB-98-54-004DATE: July, 1998
MODEL: 1995 Eclipse
SUBJECT:
CIRCUIT DIAGRAM CORRECTIONS (INSTRUMENT PANEL, STARTING SYSTEM & INTERIOR LIGHTING) - SERVICE MANUAL REVISION
[TSB Revision TSB-98-54-004]
PURPOSE
This bulletin contains circuit diagram additions and corrections including the following:
^ Diode C-28 (for the door ajar warning light circuit) is added to the instrument panel and floor console diagrams.
^ Corrections to the starting system circuits for the 2.0L non-turbo equipped vehicles.
^ A new, correct interior light circuit diagram.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1995 Eclipse
AFFECTED SERVICE MANUALS
1995 Eclipse Service Manual, Volume 2, Pages 46, 16-32, 54-78
SERVICE MANUAL REVISIONS

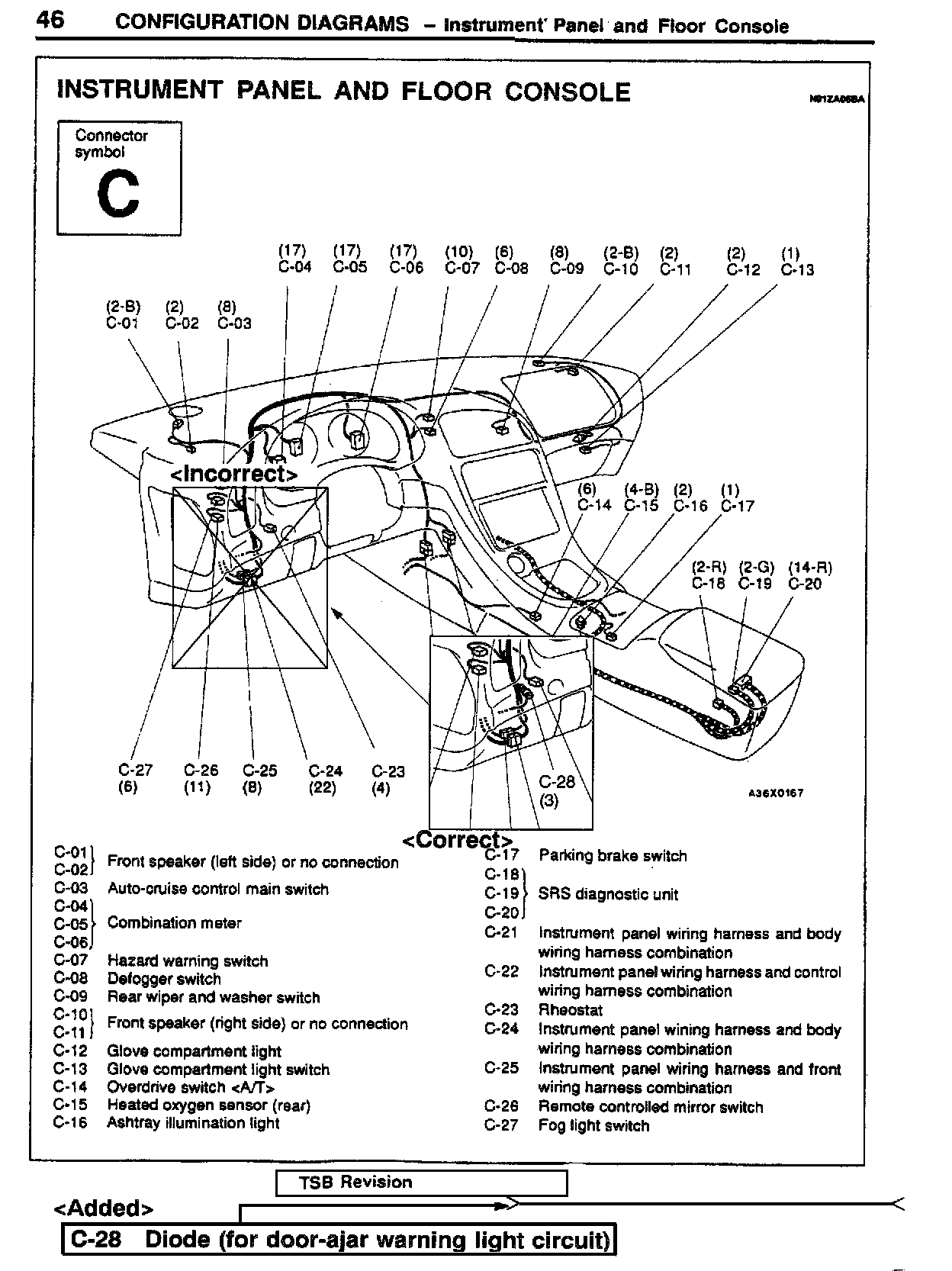

1995 Eclipse Service Manual, Volume 2, Page 46
Add the C-28 door ajar warning light diode as shown:

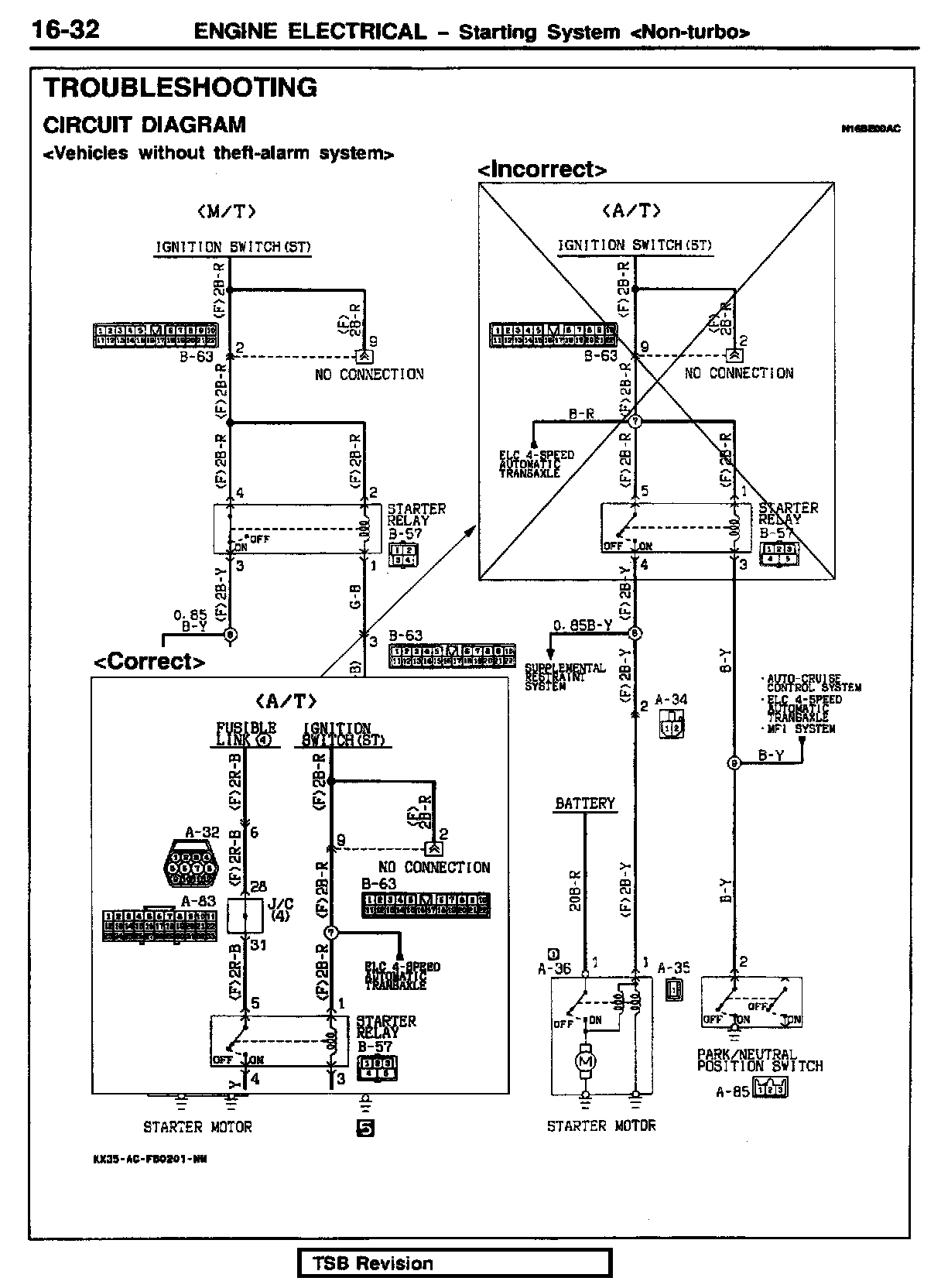

1995 Eclipse Service Manual, Volume 2, Pages 16-32
Revise the starting system circuit diagram as shown:

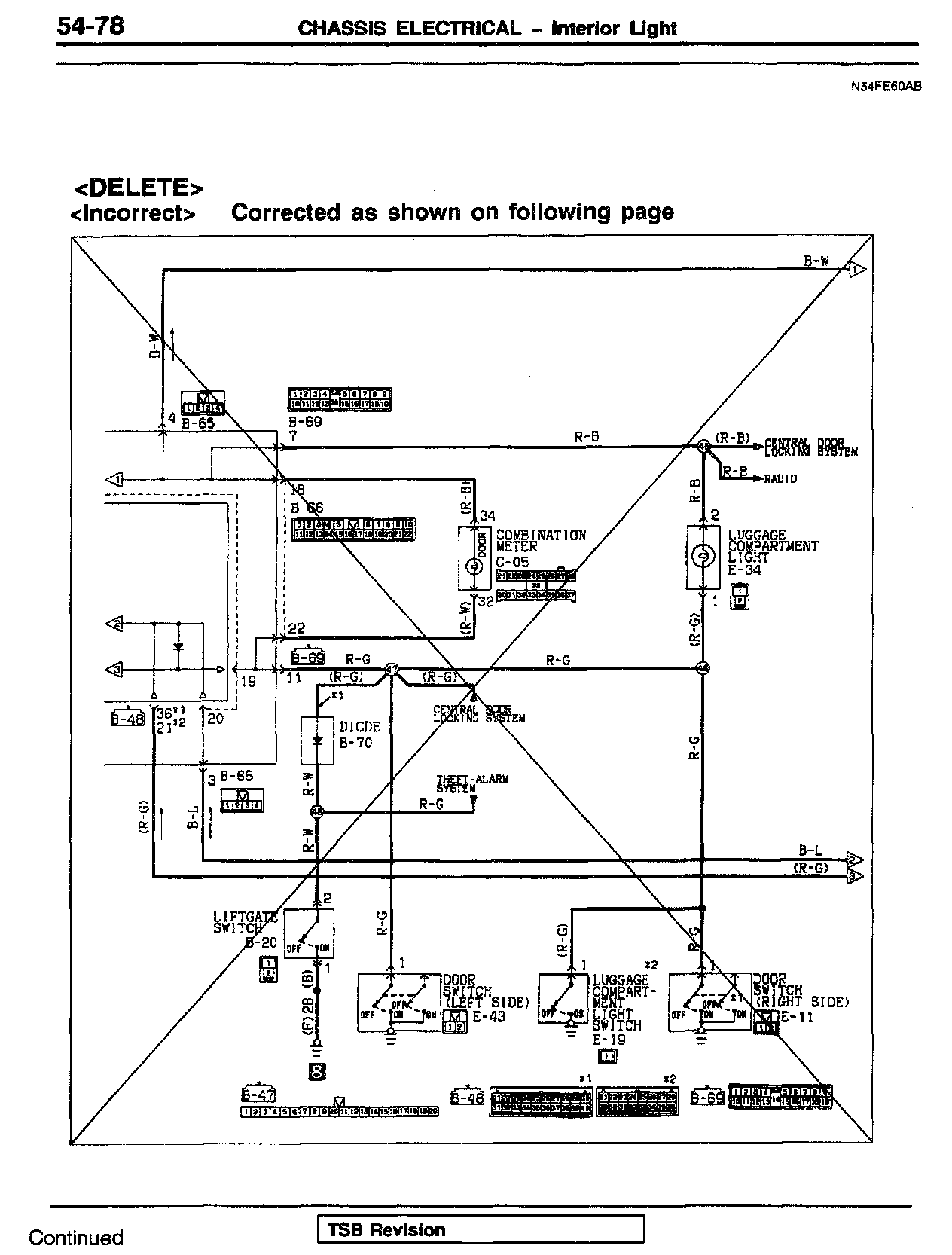

1995 Eclipse Service Manual, Volume 2, Page 54-78
Delete the current information from the indicated page and replace it with this information.

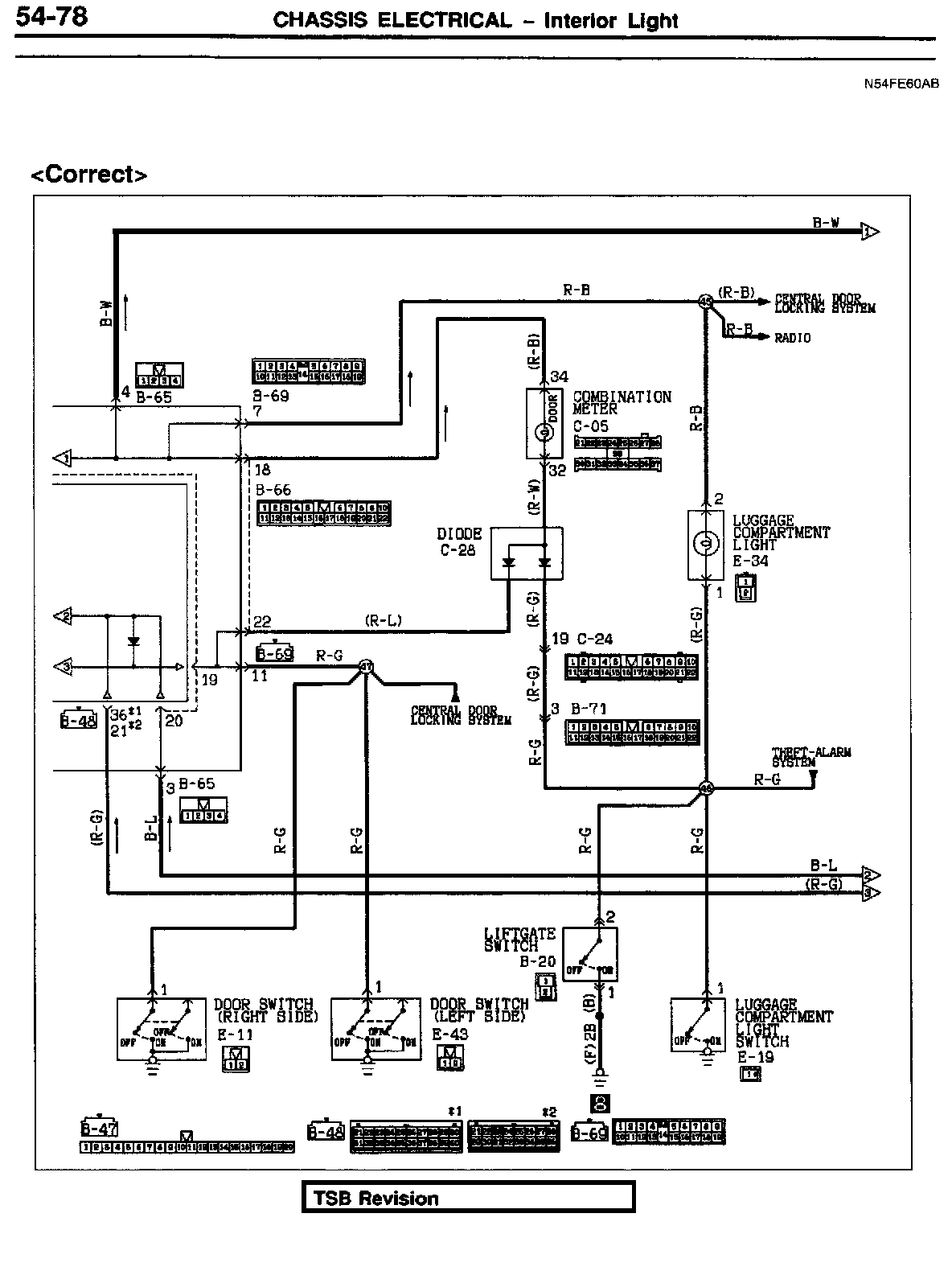

1995 Eclipse Service Manual, Volume 2, Page 54-78
Replace the original information on page 54-78 of the manual with the new information as shown.
