Removal and Replacement

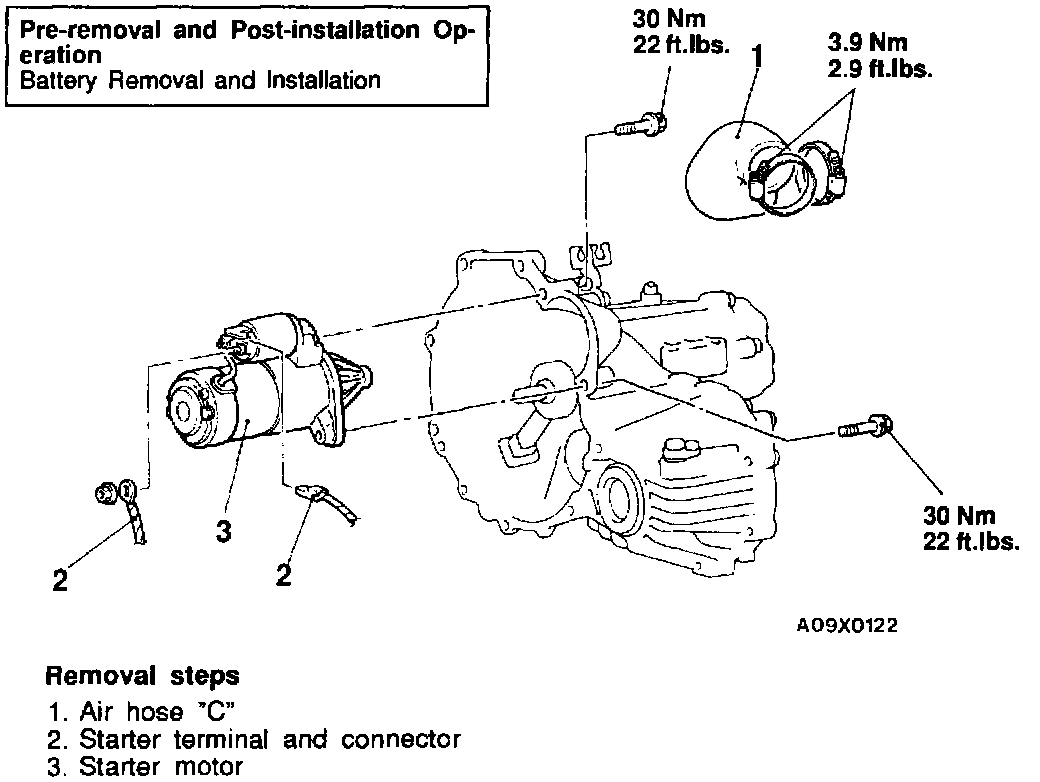

Starter Motor - Removal And Installation:

Pre-Removal
- Battery

REMOVE
1. Air hose "C"
2. Starter terminal and connector
3. Starter motor

INSTALL
1. Starter motor
2. Starter terminal and connector
3. Air hose "C"

Post-Installation
- Battery
