Removal and Installation Steps

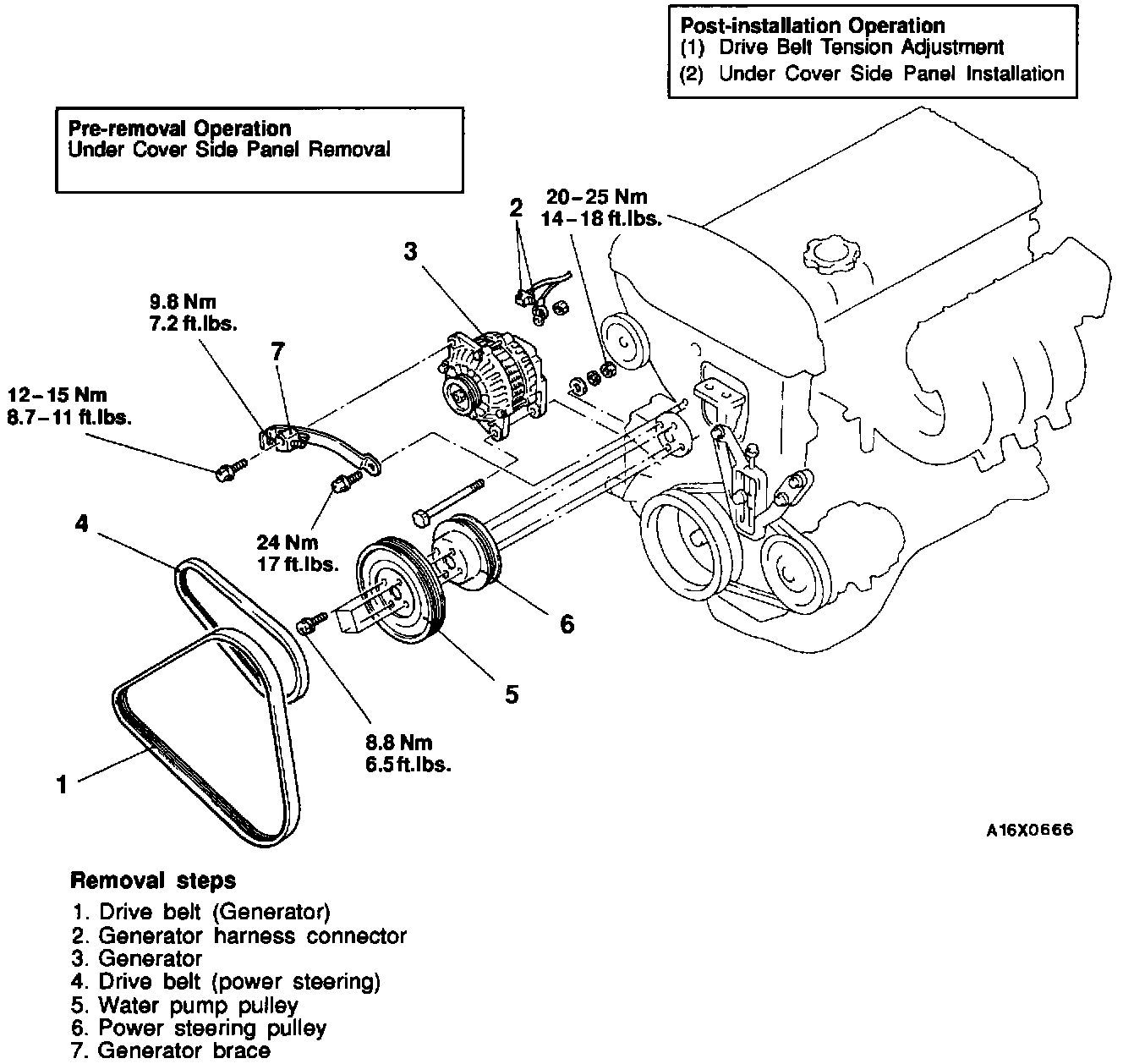

Generator - Removal And Installation:

Pre-Removal
- Under cover Side Panel

REMOVE
1. Drive belt (Generator)
2. Generator harness connector
3. Generator
4. Drive belt (power steering)
5. Water pump pulley
6. Power steering pulley
7. Generator brace

INSTALL
1. Generator brace
2. Power steering pulley
3. Water pump pulley
4. Drive belt (power steering)
5. Generator
6. Generator harness connector
7. Drive belt (Generator)

Post-Installation
- Drive Belt Tension of Adjustment
- Under cover Side Panel
