Removal Service Point

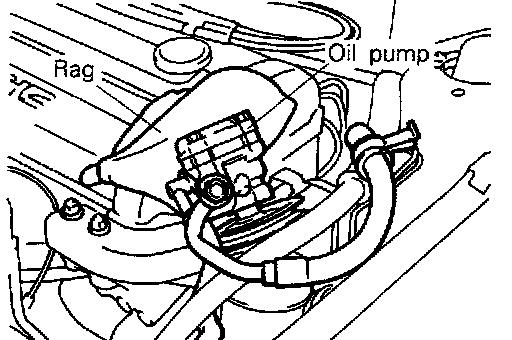

1. Remove the mounting bolt of the power steering oil pump, and hold the oil pump above the engine mount bracket. Use shop towel, etc. to prevent scarring or scratching of the rocker cover

NOTE: Do not disconnect the oil pump hose.

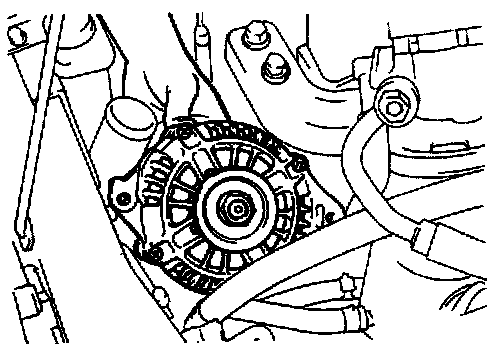

2. With the generator facing as shown in the figure, remove upward.
