Alternator Brush: Service and Repair

Brush Replacement:

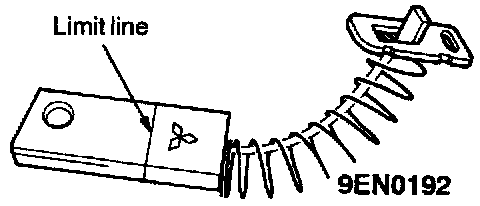

1. Replace brush by the following procedures if it has been worn to limit line.

Brush Replacement:

2. Unsolder pigtail and remove old brush and spring.

Brush Replacement:

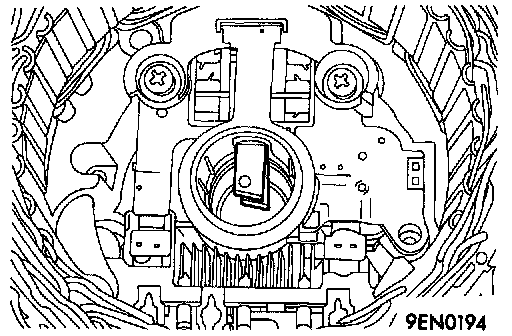

3. When installing a new brush, push the brush in the brush holder as shown in the illustration, and solder the lead wire.
