Headlamp Dimmer Switch: Service and Repair

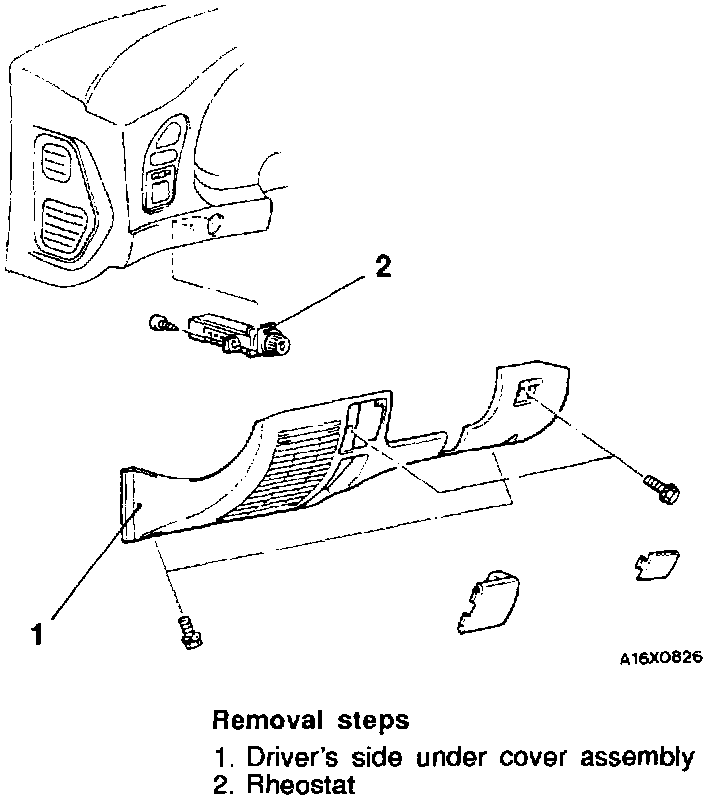

Rheostat - Removal And Installation:





REMOVE
1. Driver's side under cover assembly
2. Rheostat

INSTALL
1. Rheostat
2. Driver's side under cover assembly
