SRS - Trouble Shooting, Front Impact Sensor Inspection

NO.: TSB-95-2B-9O3

DATE: December, 1995

MODEL: 1994-95 Galant, 1995 Eclipse

SUBJECT:
SRS TROUBLESHOOTING FRONT IMPACT SENSOR INSPECTION -
SERVICE MANUAL REVISION

TSB Revision TSB-9552B-003

PURPOSE
This bulletin introduces an additional procedure for checking the SRS front impact sensor on the 1994-95 Galant and 1995 Eclipse. Revise the service manual for each model with the following information.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of each affected service manual page.

AFFECTED SERVICE MANUALS

1994-95 Galant, Volume 1, Pages 52B-22 & 52B-48
1995 Eclipse, Volume 1, Pages 52B-24 & 52B-44

SERVICE MANUAL REVISIONS

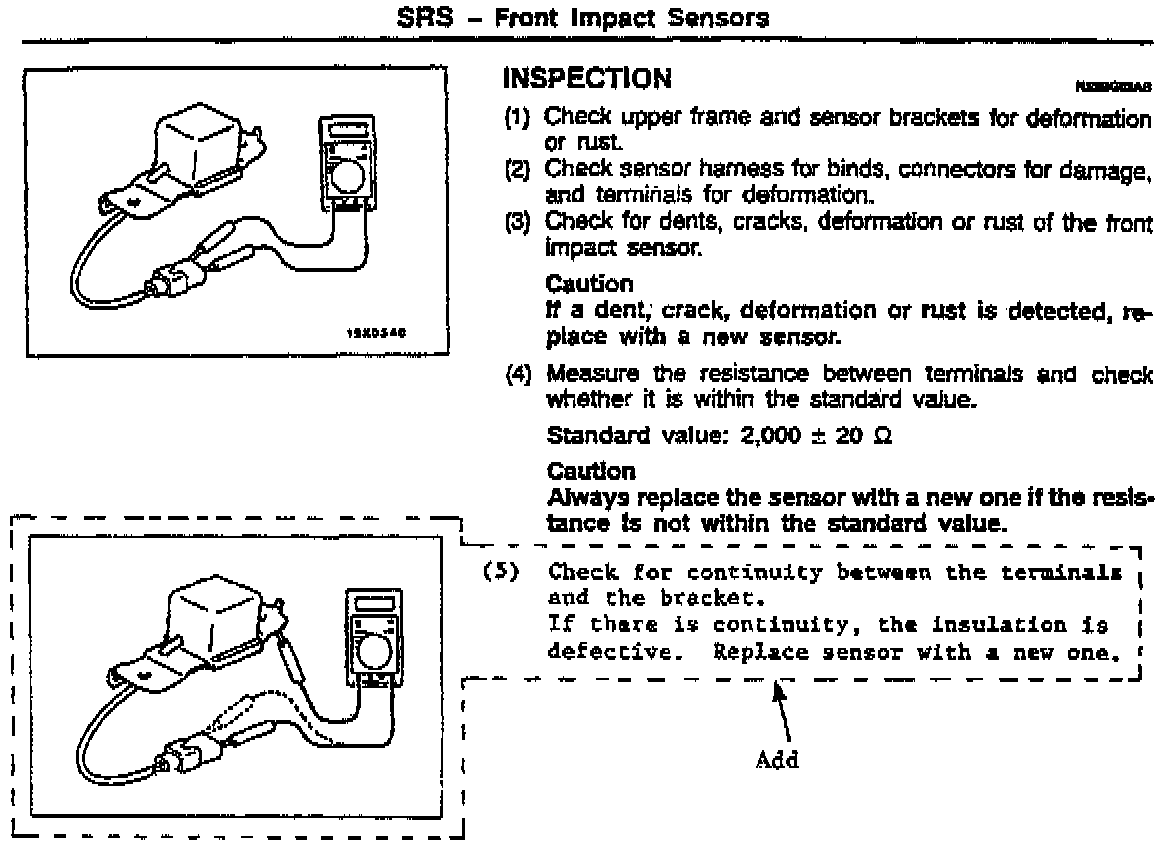

1994-95 Galant, Volume 1 Page 52B-22
1995 Eclipse, Volume 1, Page 52B-24





Add the new procedure to the service manual as shown.

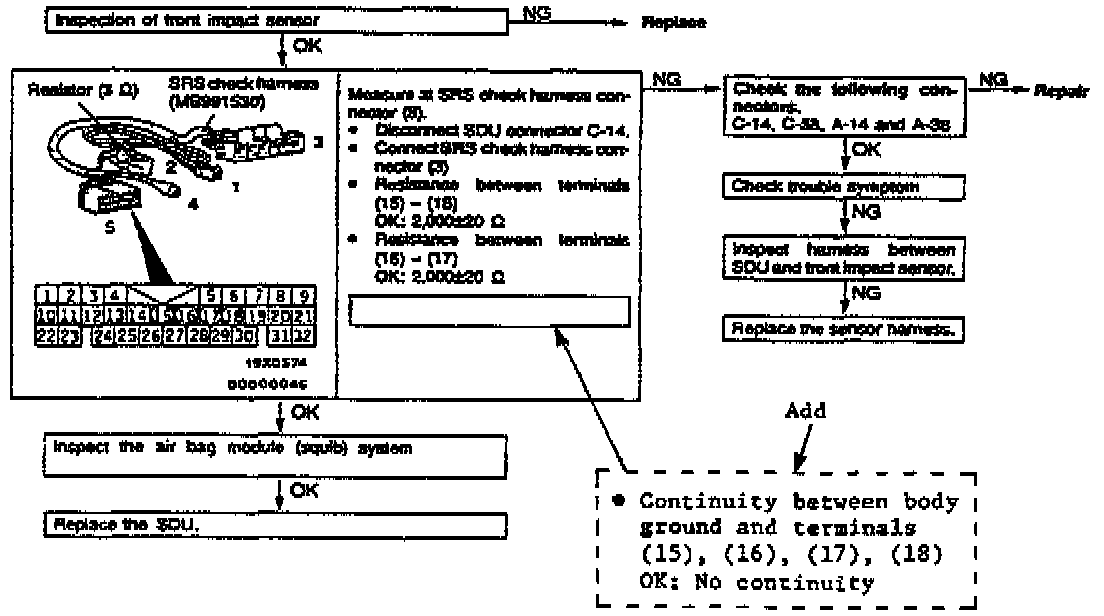

1994-95 Galant, Volume 1, Page 52B-48
1995 Eclipse, Volume 1, Page 52B-44





Add the new procedure to the manual as shown.
