Symptom Related Diagnostic Procedures

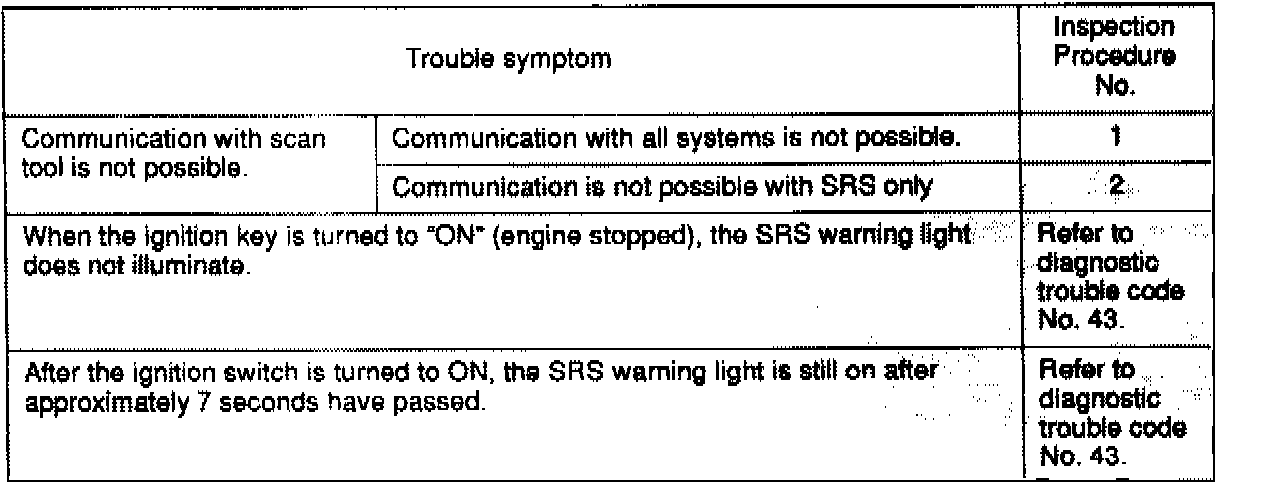

Inspection Chart For Trouble Symptoms

Get an understandinq of the trouble svmotoms and check accordinq to the inspection procedure chart.





Inspection Procedure For Trouble Symptoms

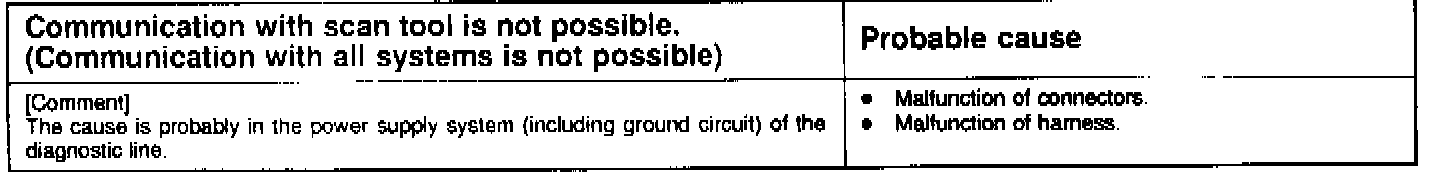

Inspection Procedure 1

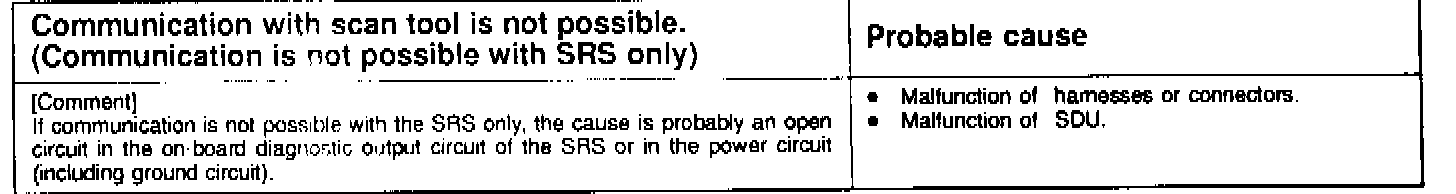

Inspection Procedure 2





1. Turn the ignition key to the "LOCk" position, disconnect the negative battery cable and tape the terminal.

Caution:
Wait at least 60 seconds after disconnecting the battery cable before doing any further work.

2. Remove the floor console assembly.

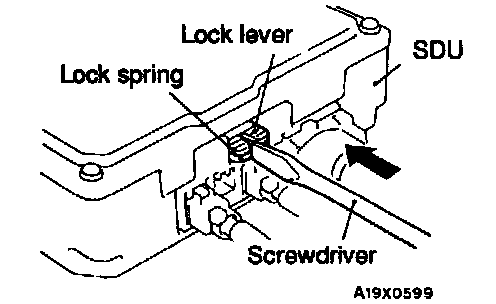

3. Place a flat-tipped screwdriver against the lock spring at the lock lever notch and push the spring toward the unit.

Caution:
Do not use excessive force to raise the lock lever(green).

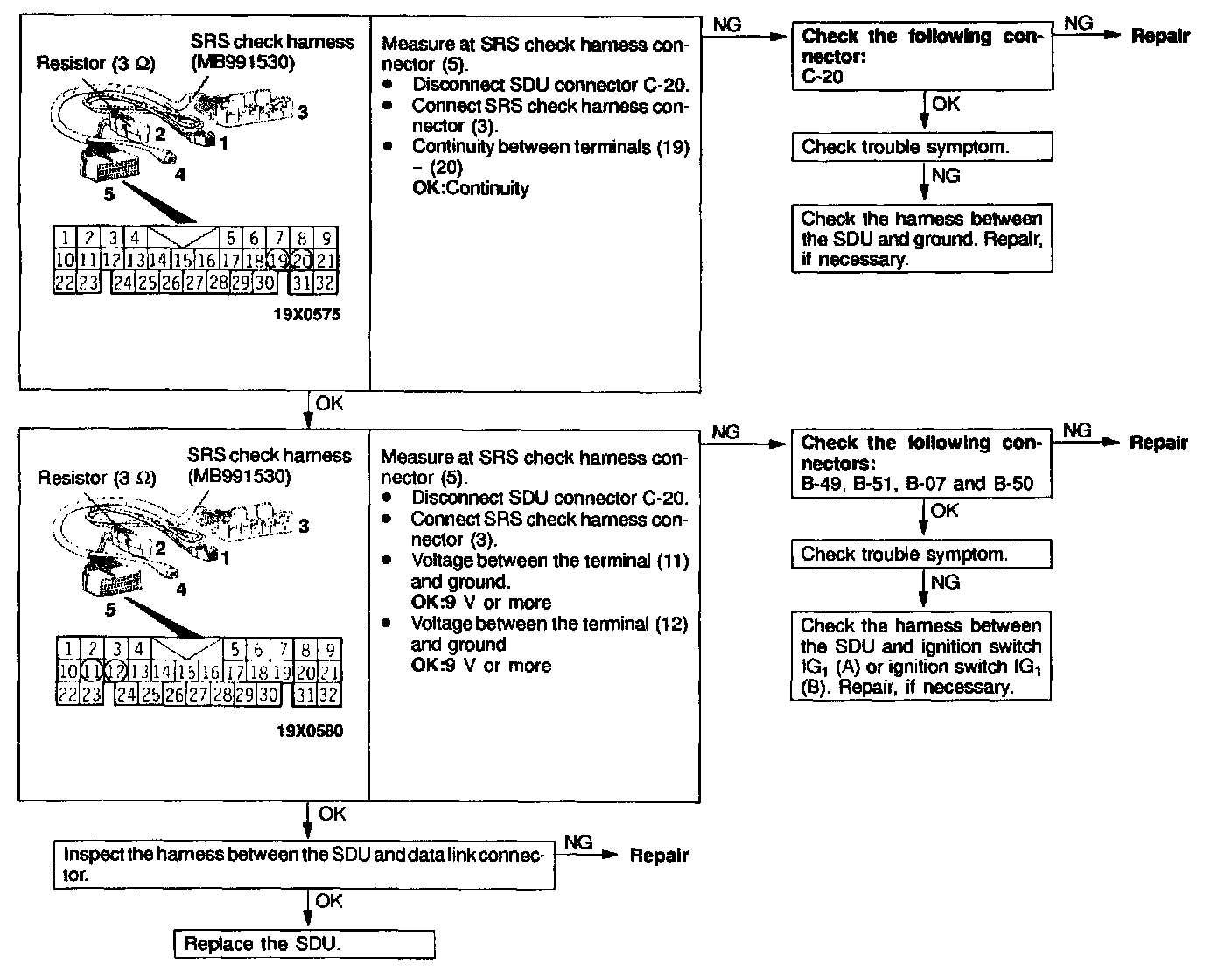

Flow Chart
