Diagnostic Troubleshooting Flow

TROUBLESHOOTING

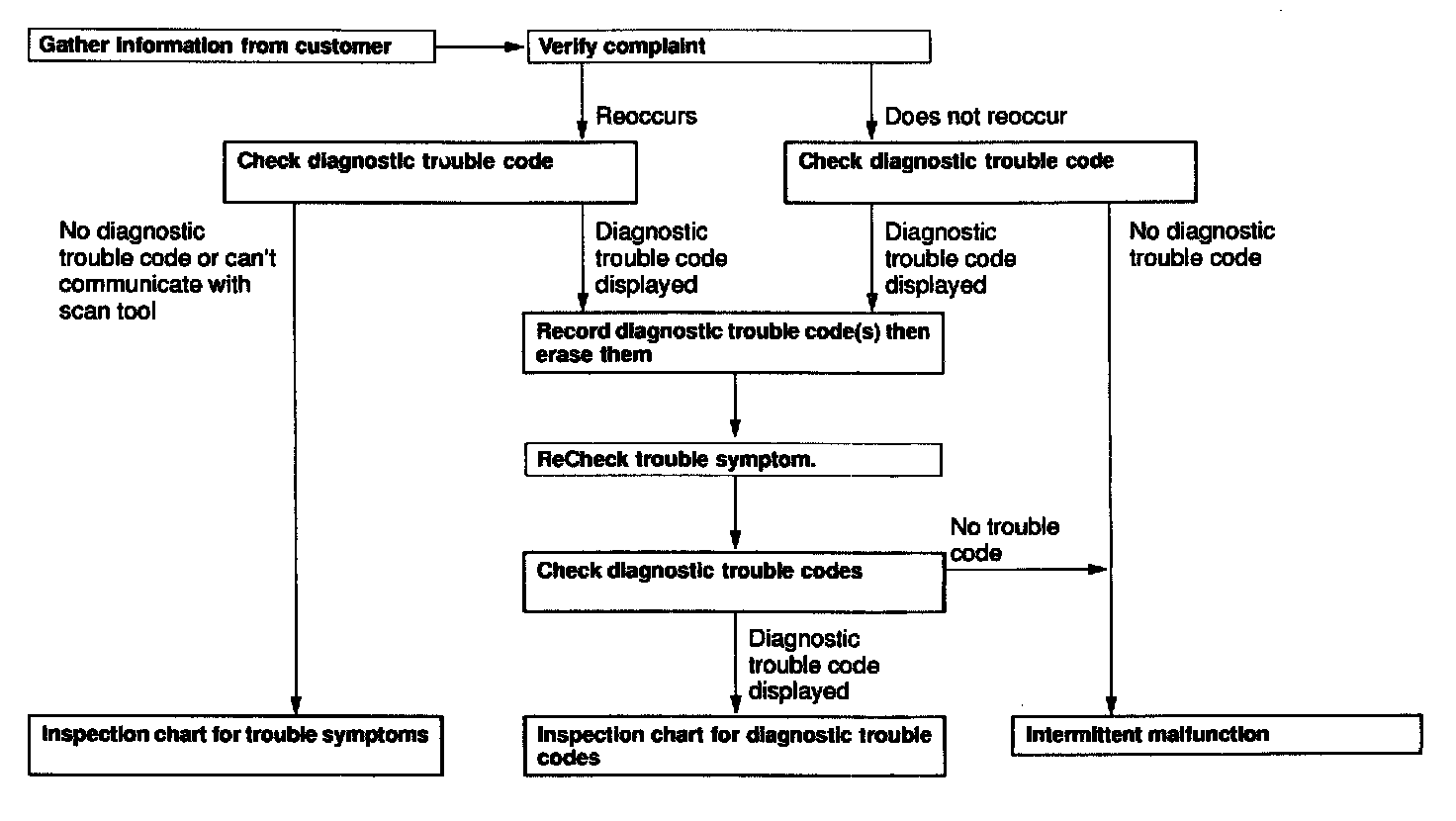

DIAGNOSTIC TROUBLESHOOTING FLOW





DIAGNOSTIC FUNCTION

DIAGNOSTIC TROUBLE CODES CHECK
Connect the scan tool to the data link connector and then check diagnostic trouble codes.

Caution:
Always turn the ignition switch OFF to connect or disconnect the scan tool.

ERASING DIAGNOSTIC TROUBLE CODES

Connect the scan tool to the data link connector, then erase the diagnostic trouble codes.
