SRS Circuit Diagram - Corrections

NO.: TSB-96-52B-001

DATE: April, 1996

MODEL: 1995 Eclipse

SUBJECT:
SRS CIRCUIT DIAGRAM CORRECTIONS - SERVICE MANUAL REVISION

TSB Revision TSB-96-52B-001

PURPOSE
This bulletin is issued to correct errors in the circuit diagrams for the Supplemental Restraint system in the 1995 Eclipse Service Manuals: Vols 1 and 2.

AFFECTED SERVICE MANUALS

Service Manual Page

1995 Eclipse, Vol. 1 52B-12, 13, 14, 15, 17
1995 Eclipse, Vol. 2 226, 227

SERVICE MANUAL REVISION
Please write the TSB number in the box at the bottom of each service manual page listed above to reference the corrected information.





1995 Eclipse Service Manual, Vol. 1, Page 528-12

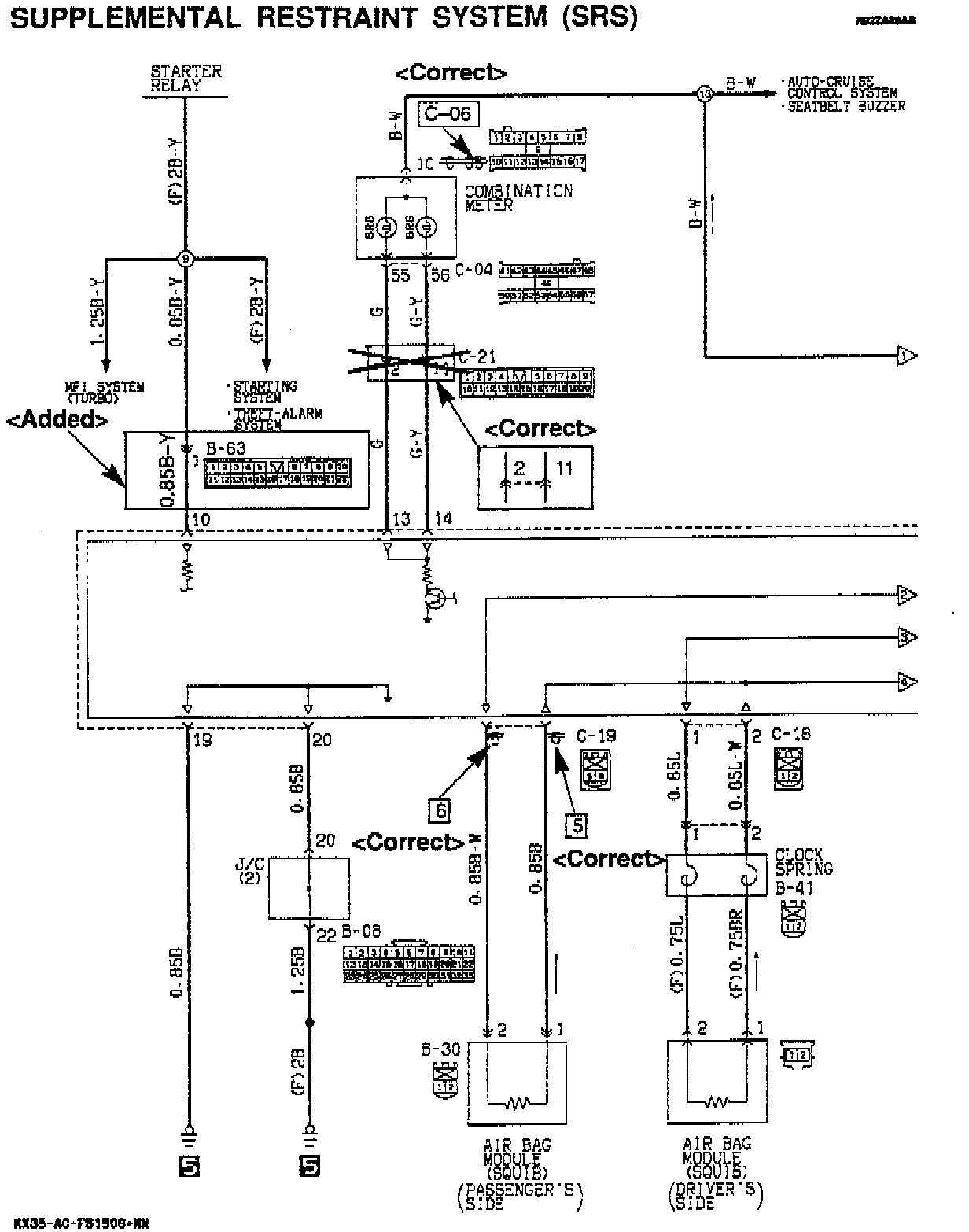

Please replace the entire page with the illustration.





1995 Eclipse Service Manual, Vol. 1, Page 52B-13

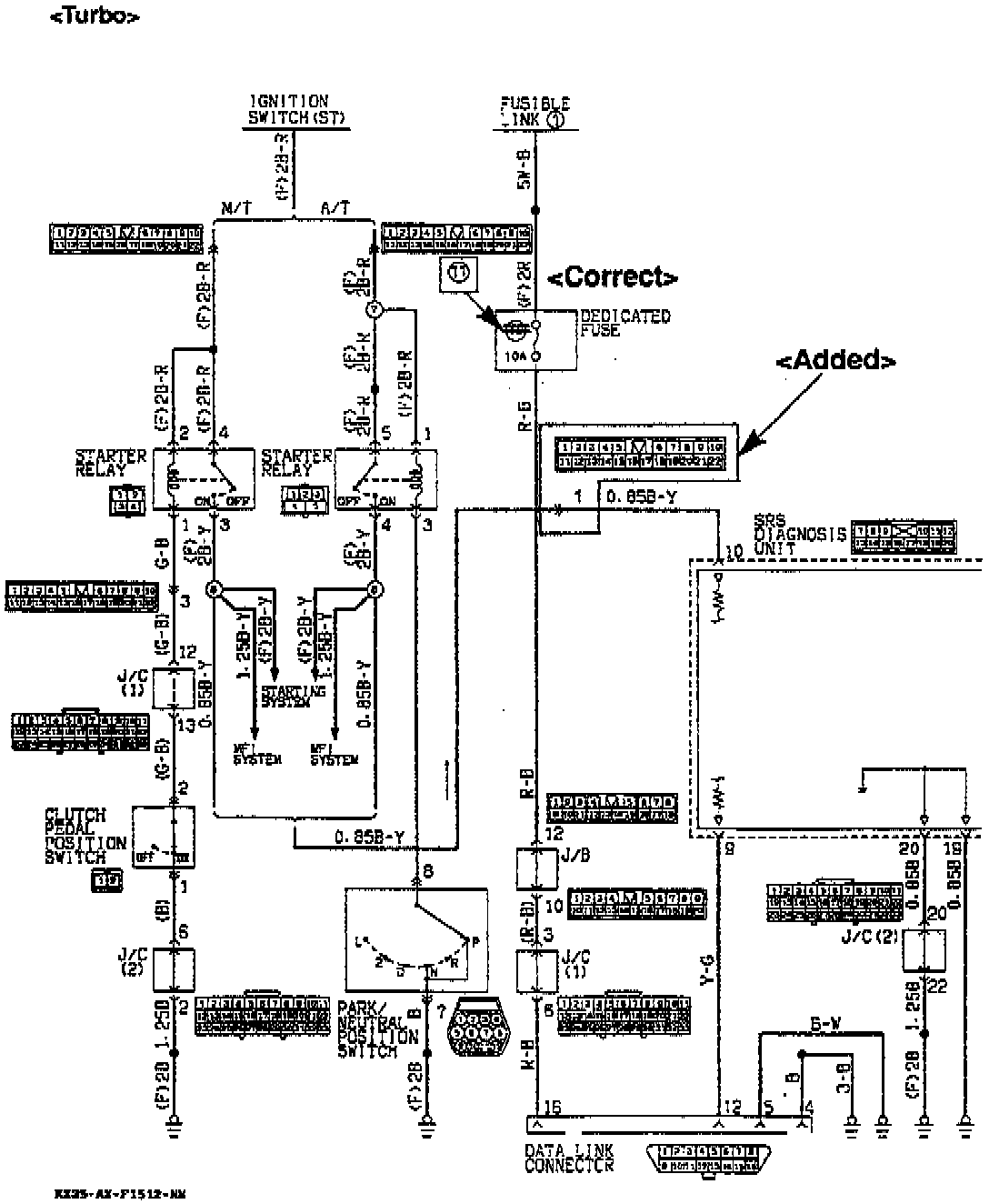

Please replace the entire page with the illustration.





1995 Eclipse Service Manual, Vol. 1, Page 52B-14
Please replace the entire page with the illustration.





1995 Eclipse Service Manual, Vol. 1, Page 52B-15

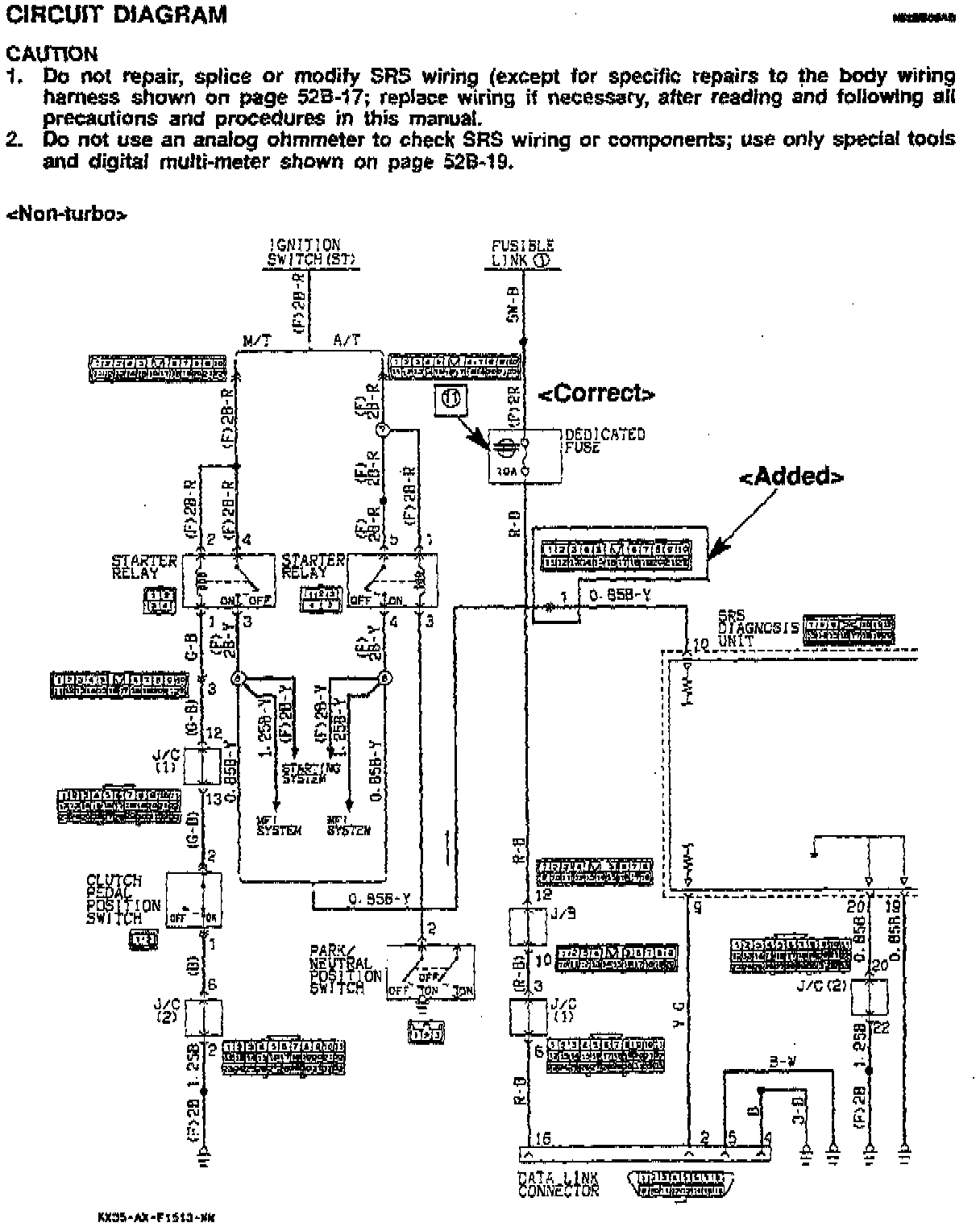

Please replace the entire page with the illustration.





1995 Eclipse Service Manual Vol. 17 Page 52B-17

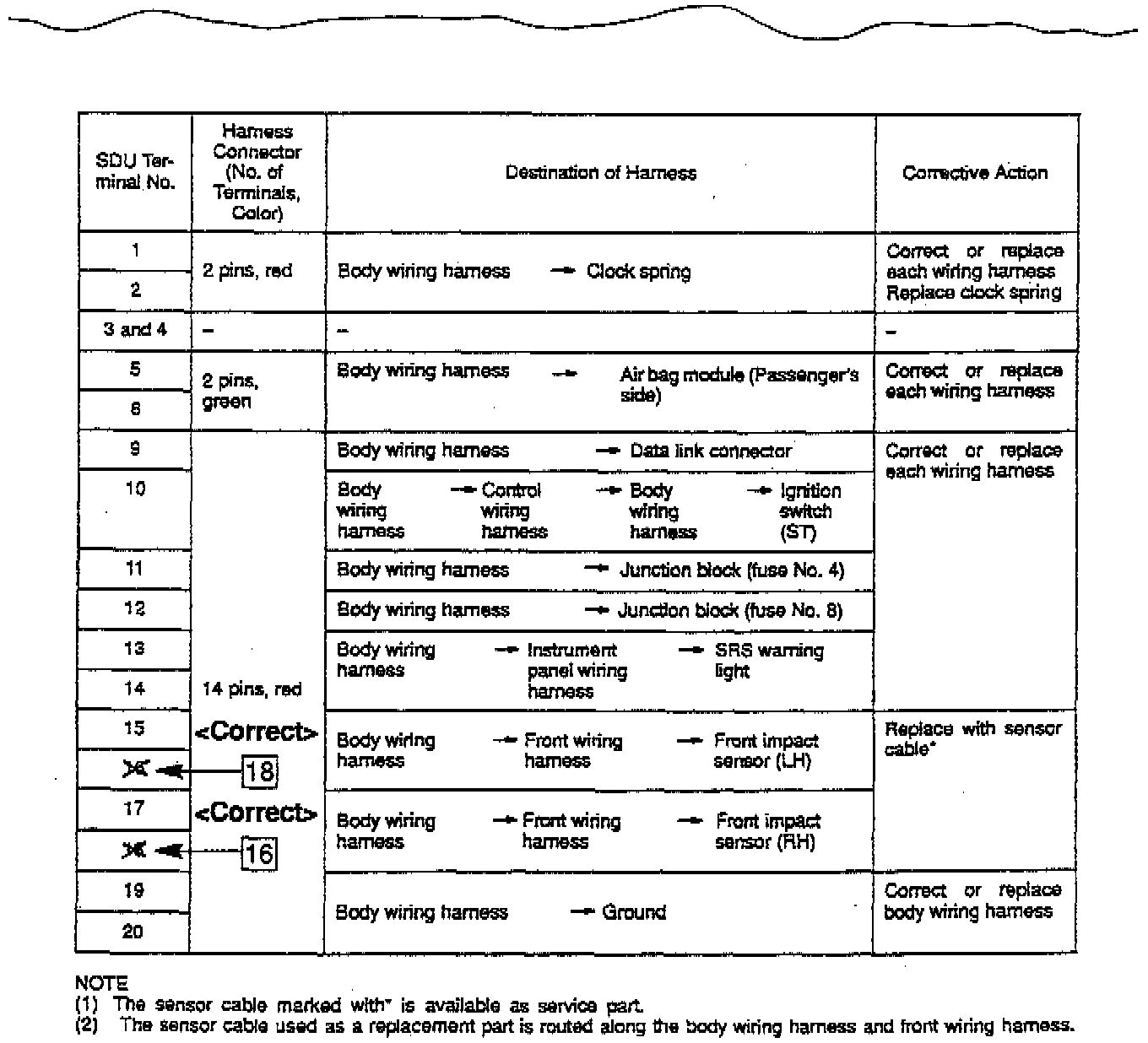

Please change the terminal numbers of the SRS Diagnosis Unit (SDU) as indicated.





1995 Eclipse Service Manual, Vol. 2, Page 226

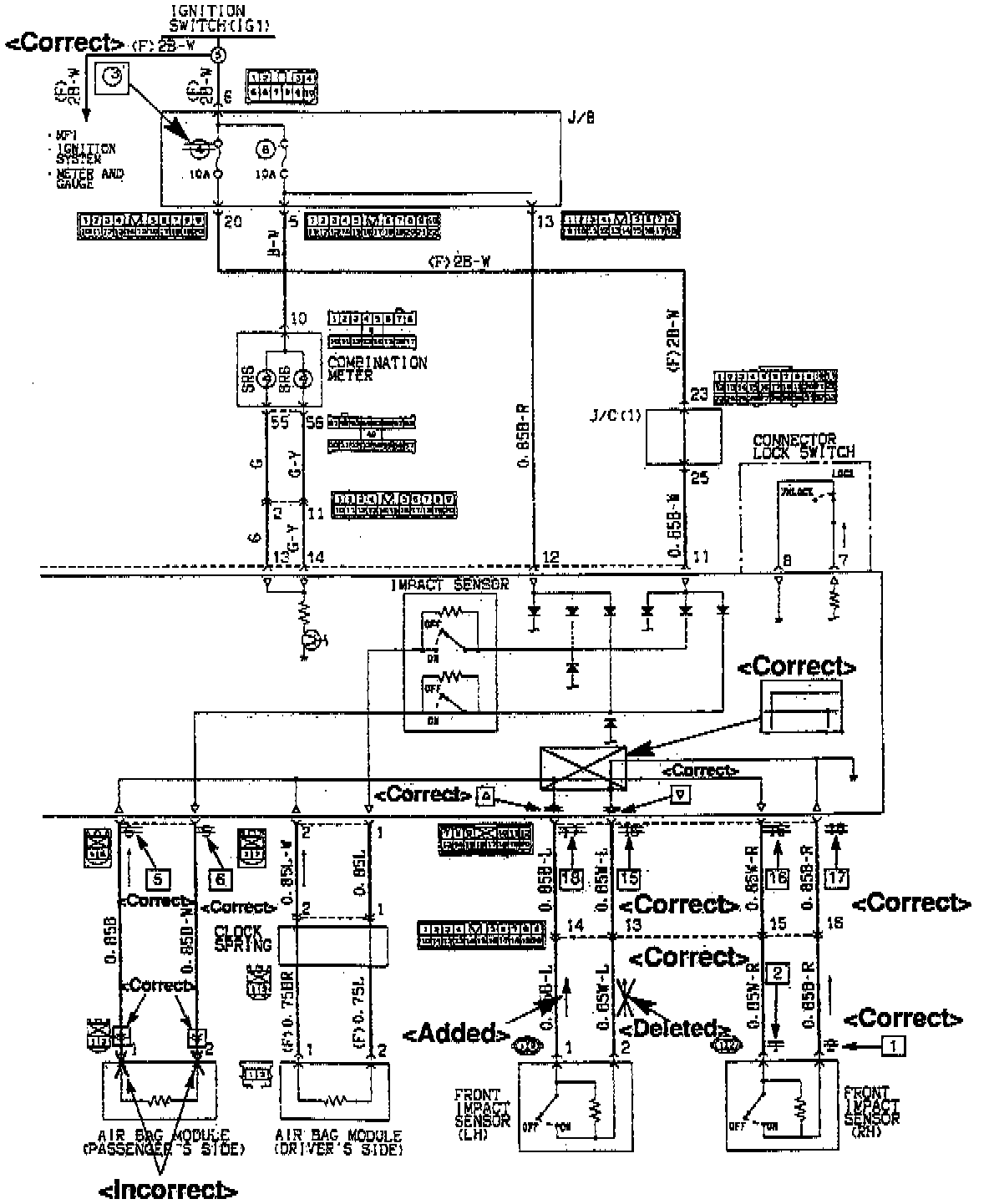

Please replace the entire page with the illustration.





1995 Eclipse Service Manual, Vol. 2, Page 227
Please replace the entire page with the illustration.
