Instrument Panel

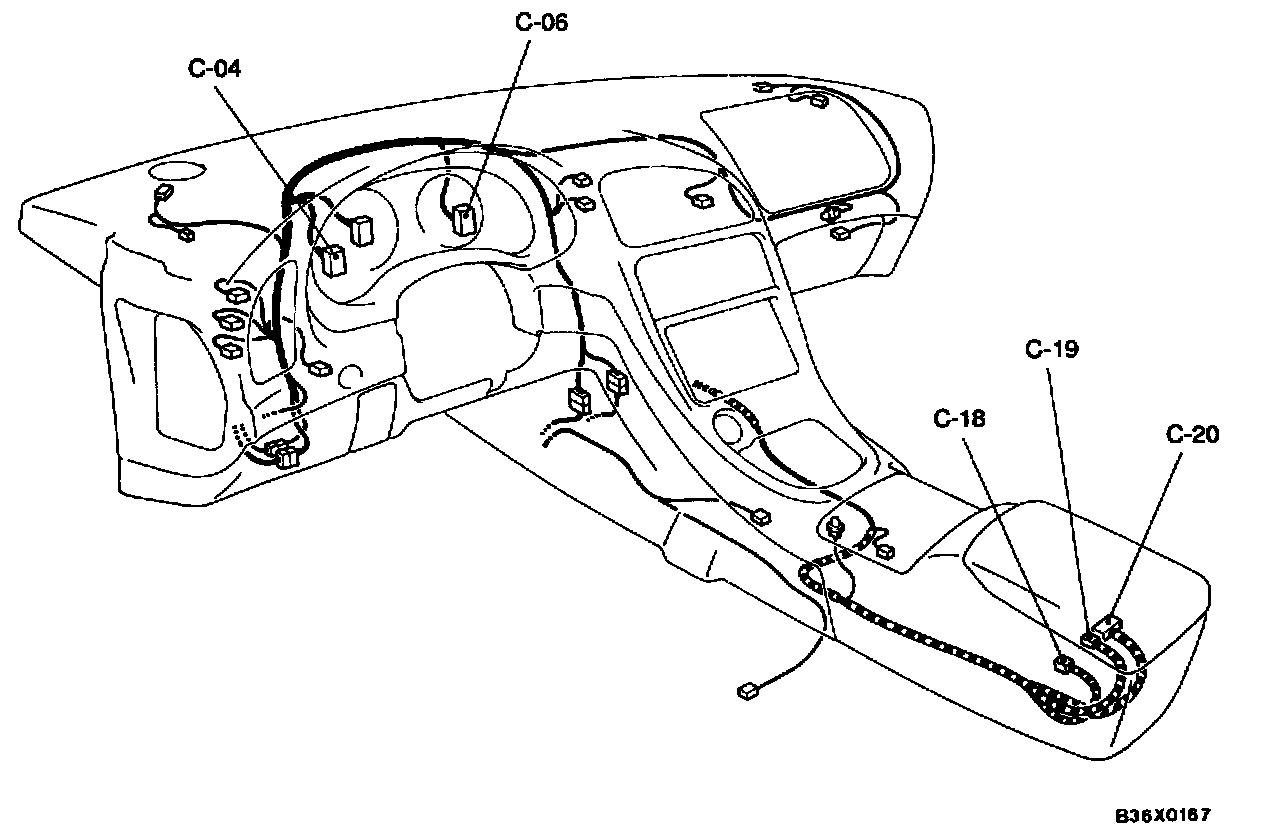

Instrument panel

C-04 Combination meter (For SRS warning light)
C-06 Combination meter (For SRS warning light)
C-18 2-pin red connector (Connector to SRS Diagnosis Unit)
C-19 2-pin green connector (Connector to SRS Diagnosis Unit)
C-20 14-pin red connector to body wiring harness (Connector to SRS Diagnosis Unit)
