Dash Panel
Dash Panel

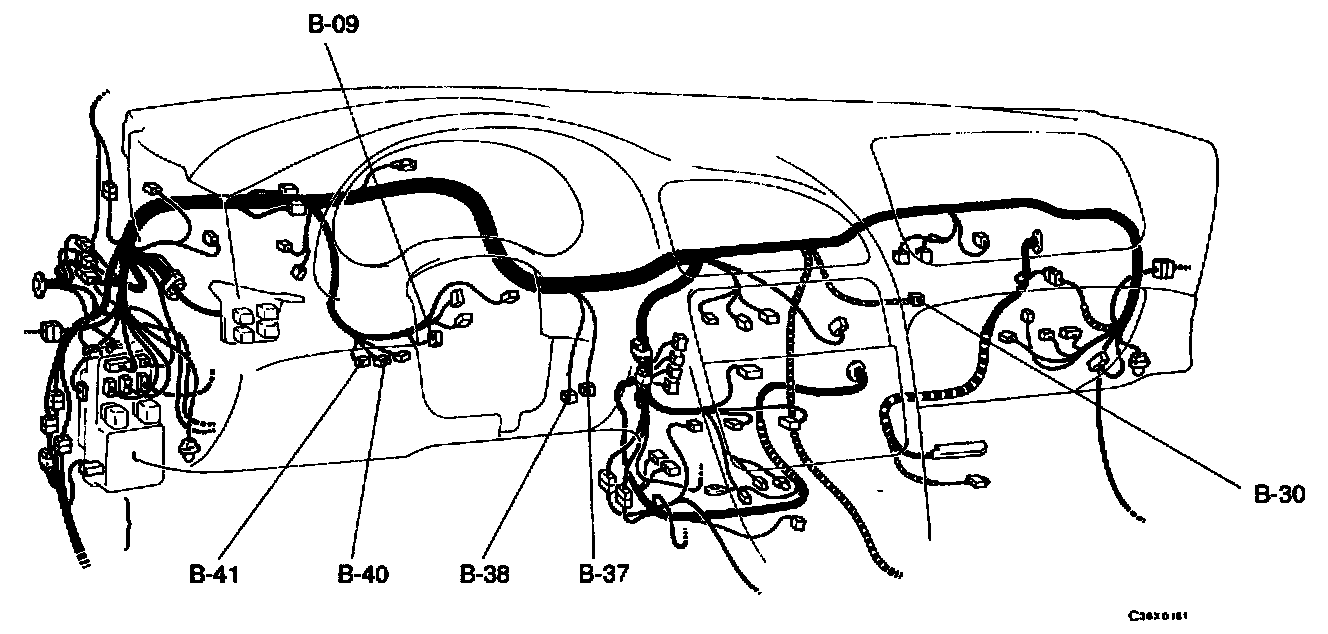

Dash panel
B-09 Ignition switch
B-30 Air bag module (passenger's side)
B-37 Data link connector (For scan tool)
B-38 Data link connector (For scan tool)
B-40 Clock spring
B-41 Air bag module (driver's side)
