Electrical Diagrams
CAUTION:1. Do not repair, splice or modify SRS wiring (except for specific repairs to the body wiring harness, replace wiring if necessary, after reading and following all precautions and procedures in this manual).
2. Do not use an analog ohmmeter to check SRS wiring or components; use only special tools and digital multi-meter.
Turbo Model Part 2 Of 2:

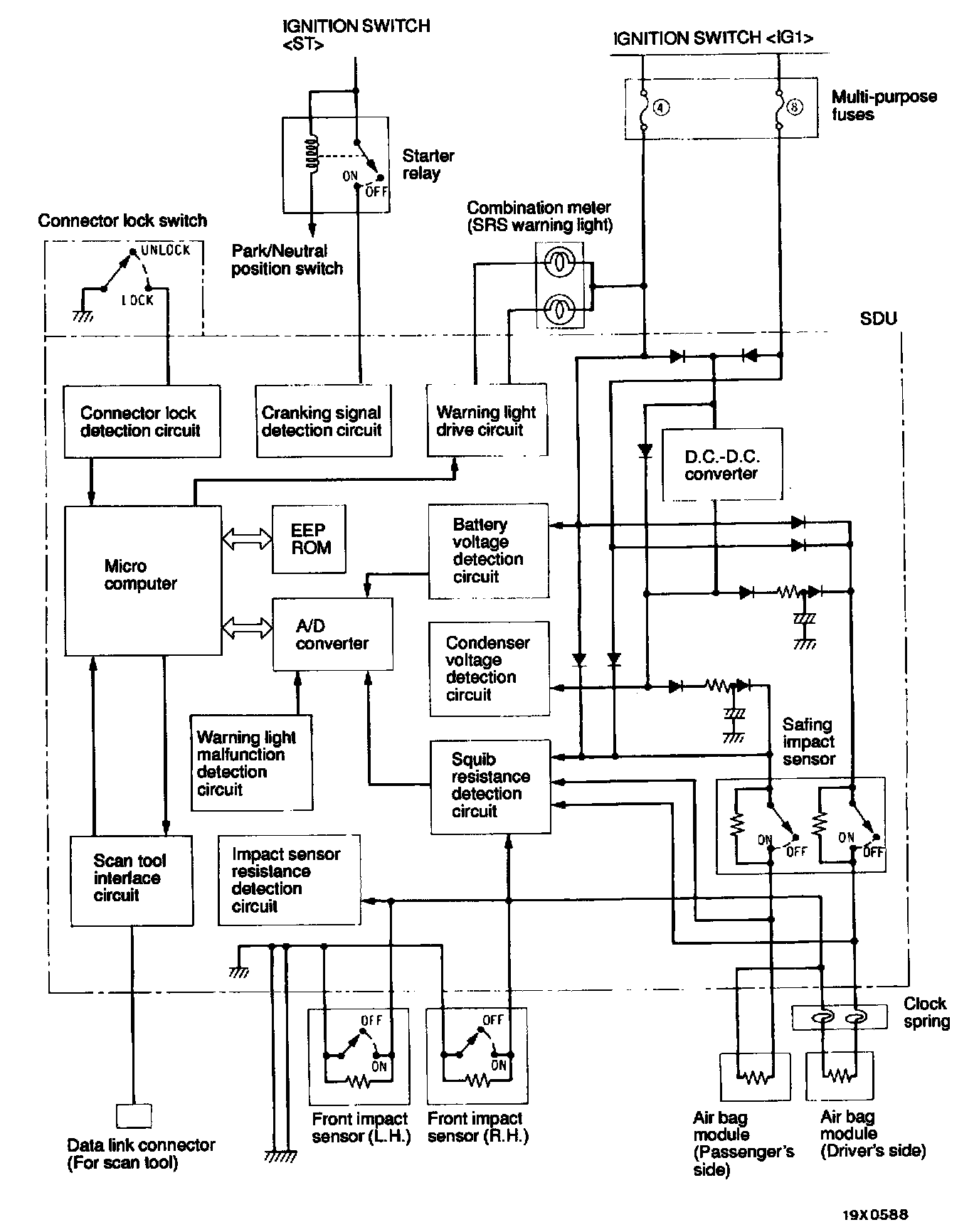

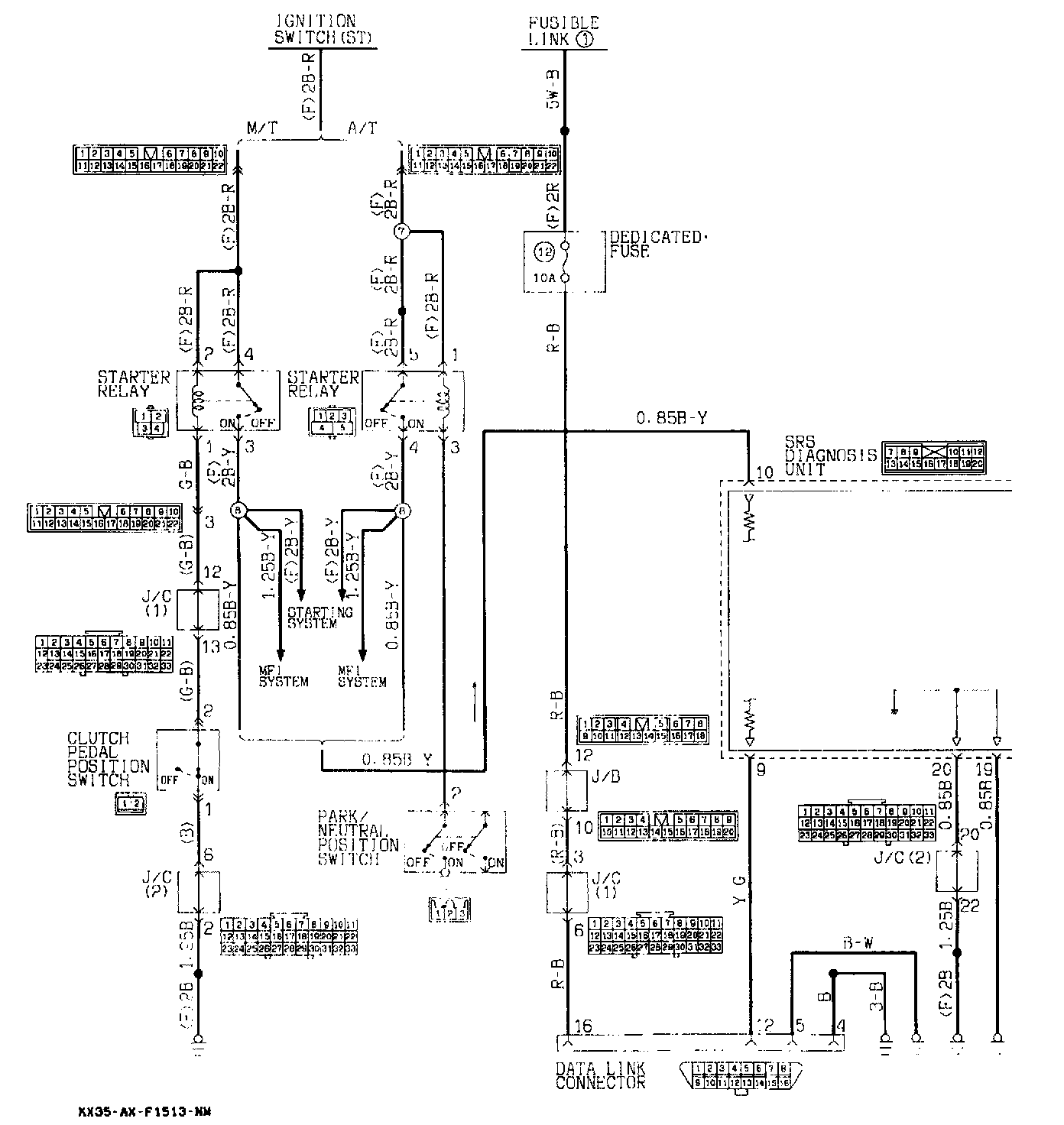

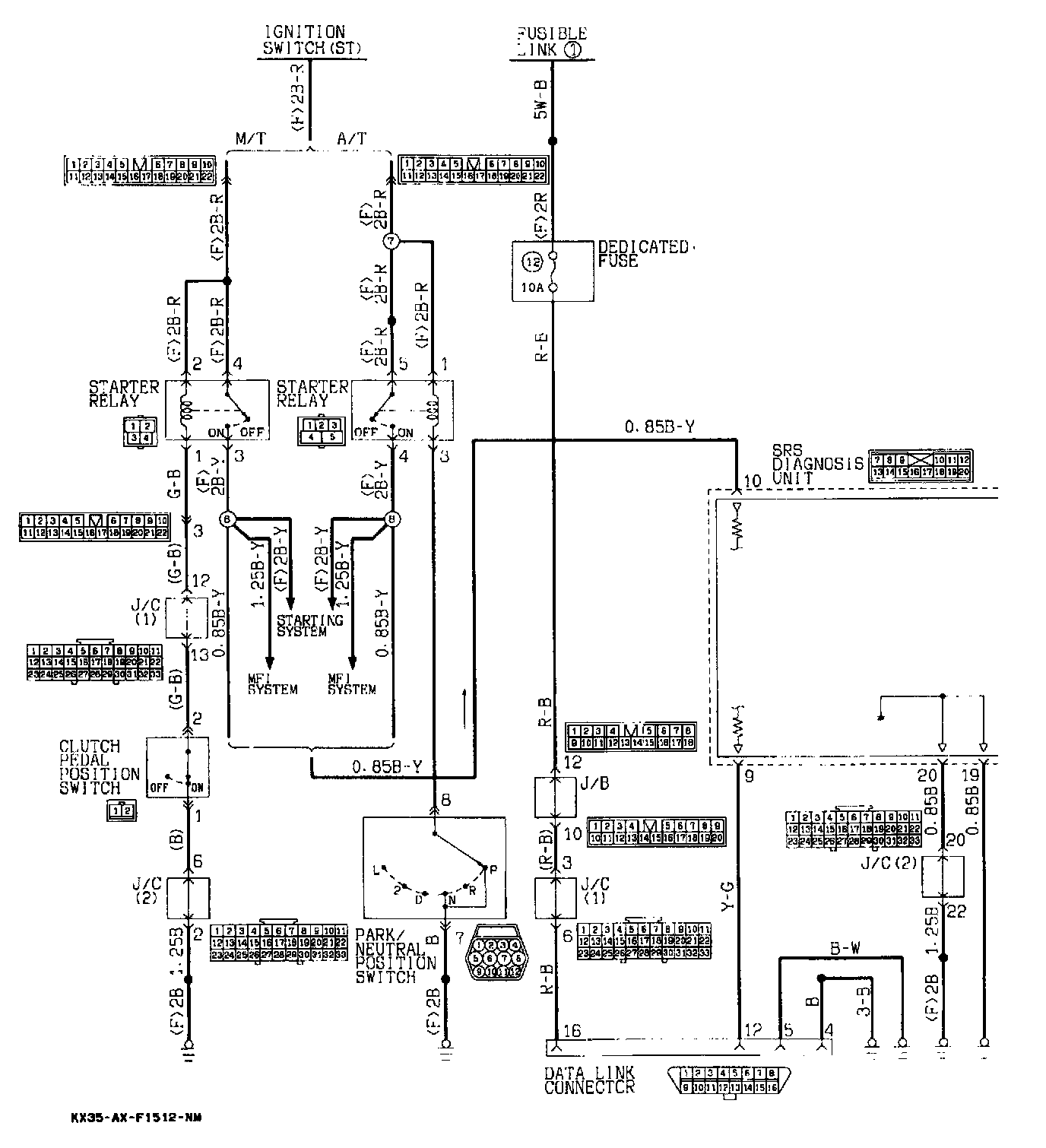

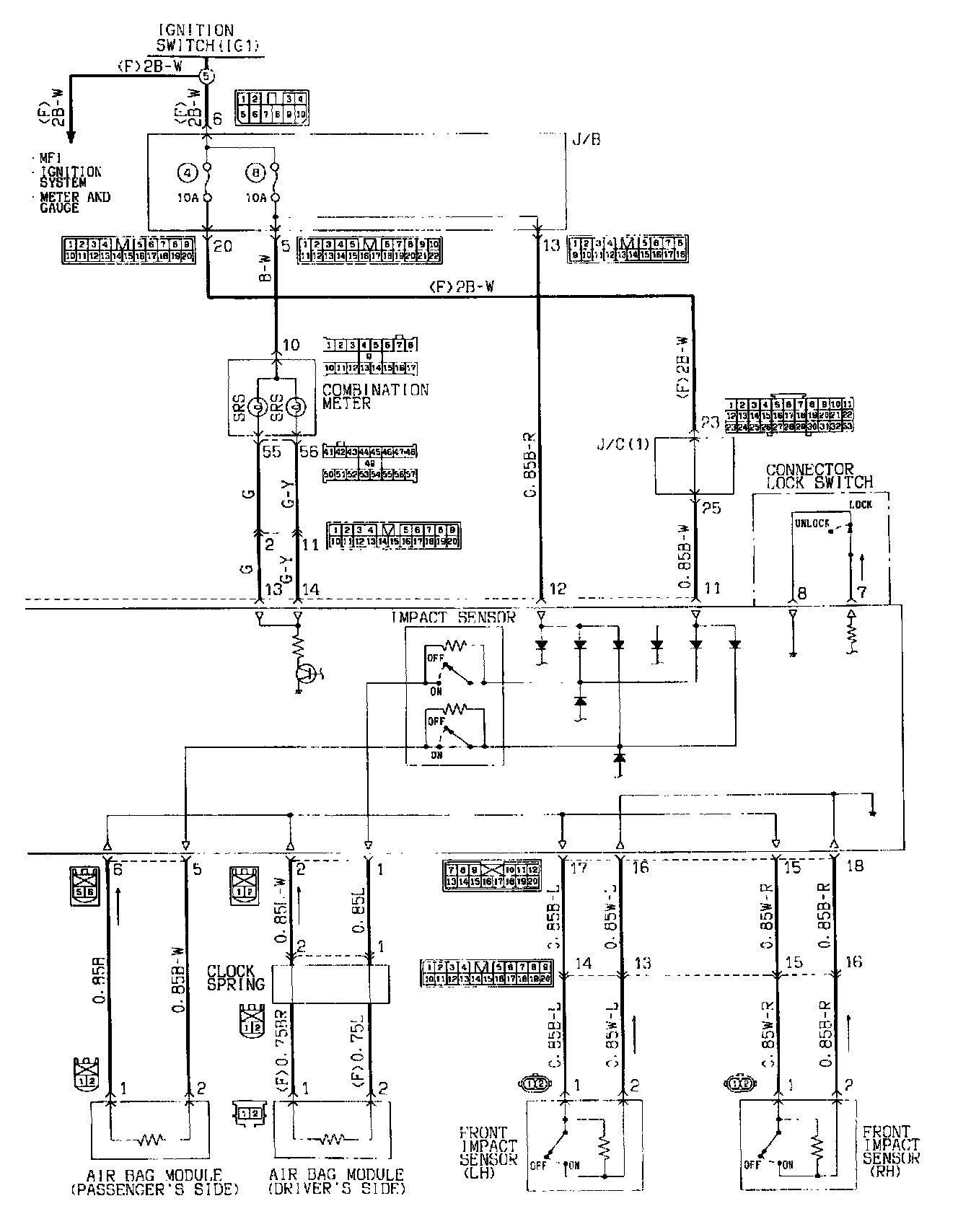

Circuit Diagram
