Starter Relay
>>
Testing and Inspection
>>
Manual Transmission
Manual Transmission

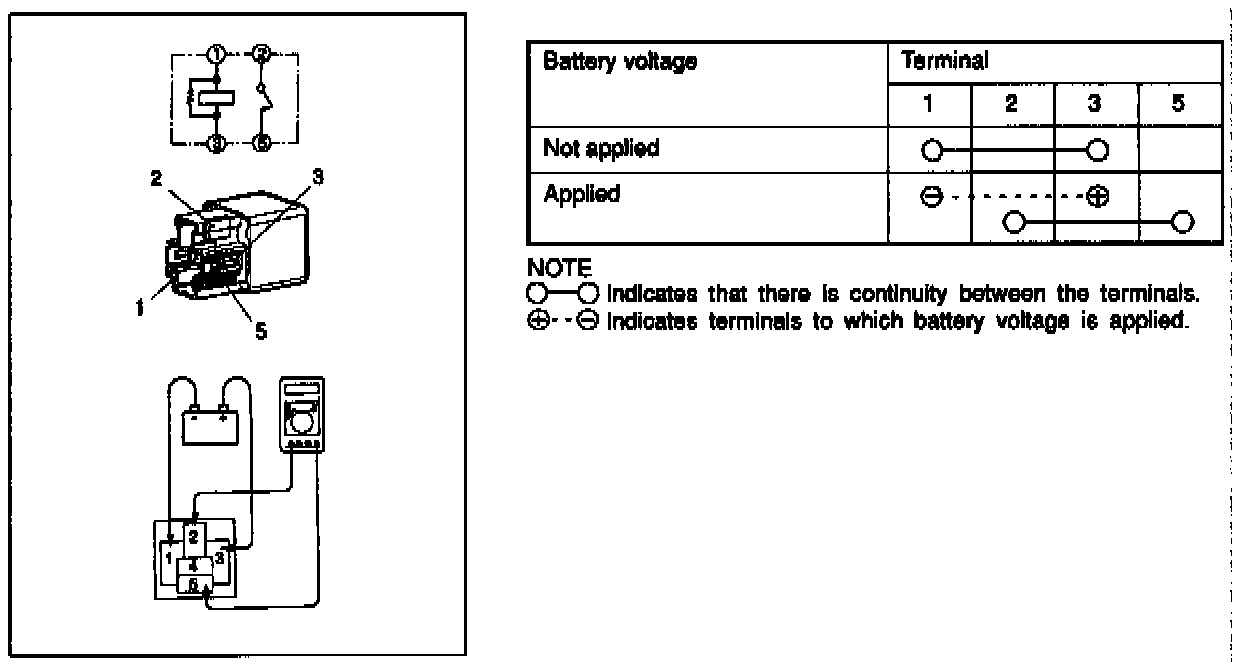

Fig. 12 Starter Relay Test:

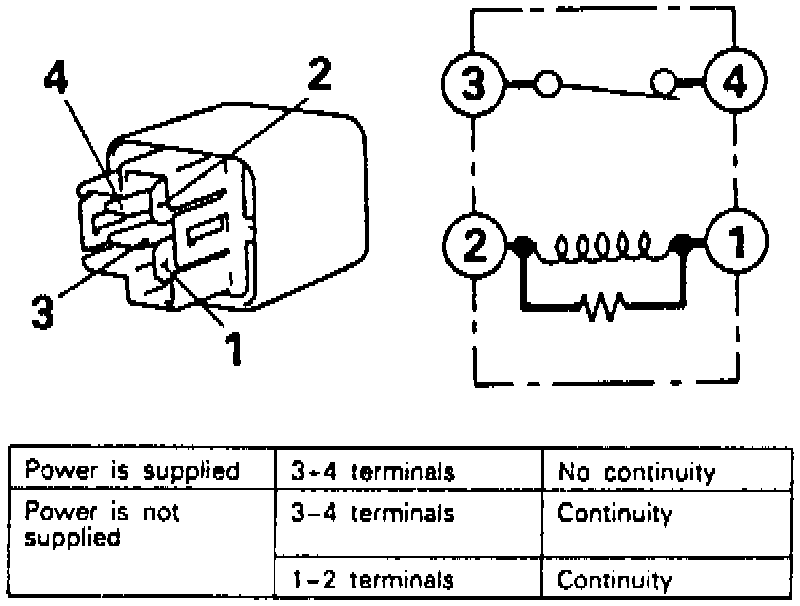

Fig. 16 Theft Alarm & Starter Relay Test:
For relay testing, refer to
Fig. 12 and 16
.
