Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Inspection Using Scan Tool, Road Test and Data List
Inspection Using Scan Tool, Road Test and Data List

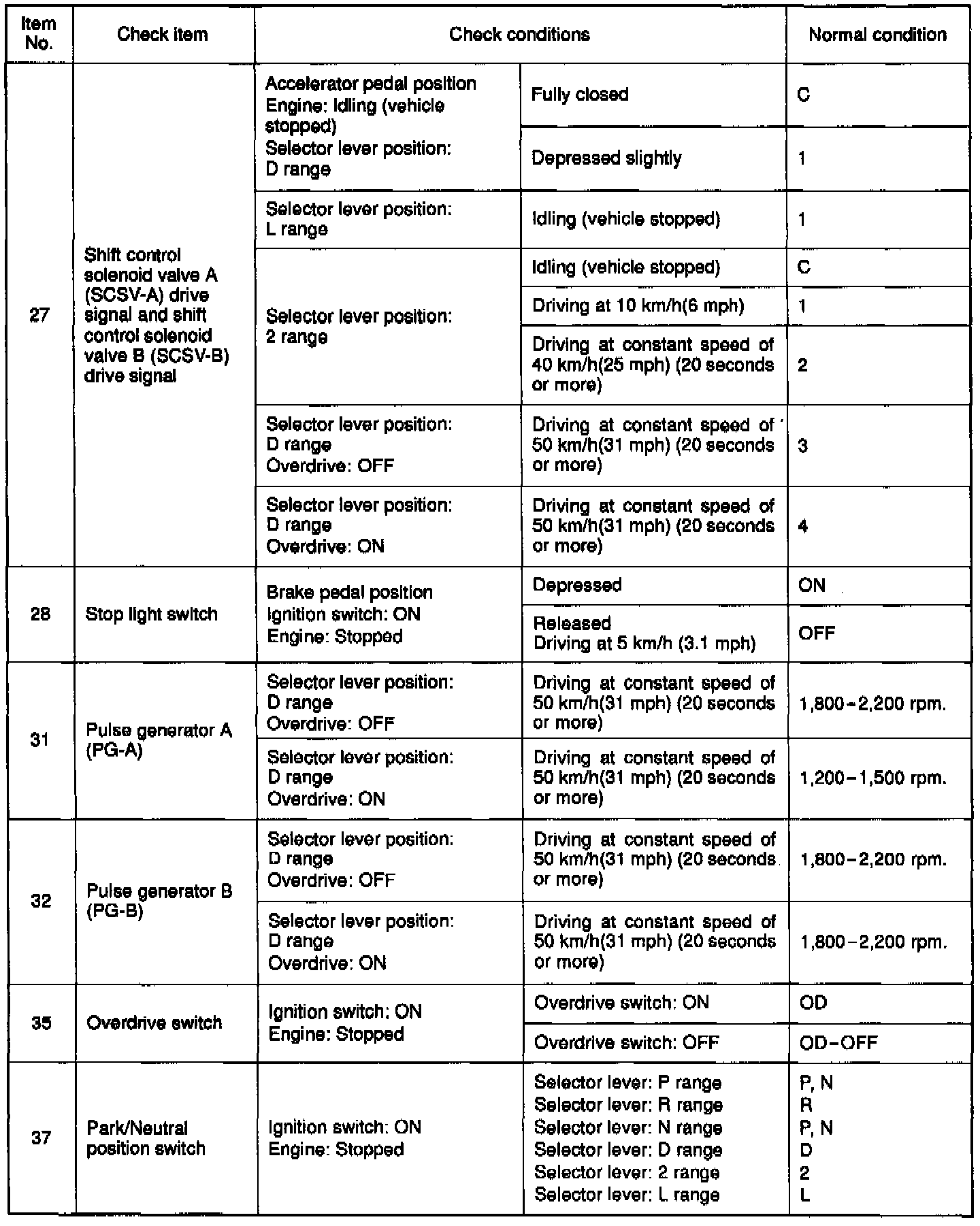

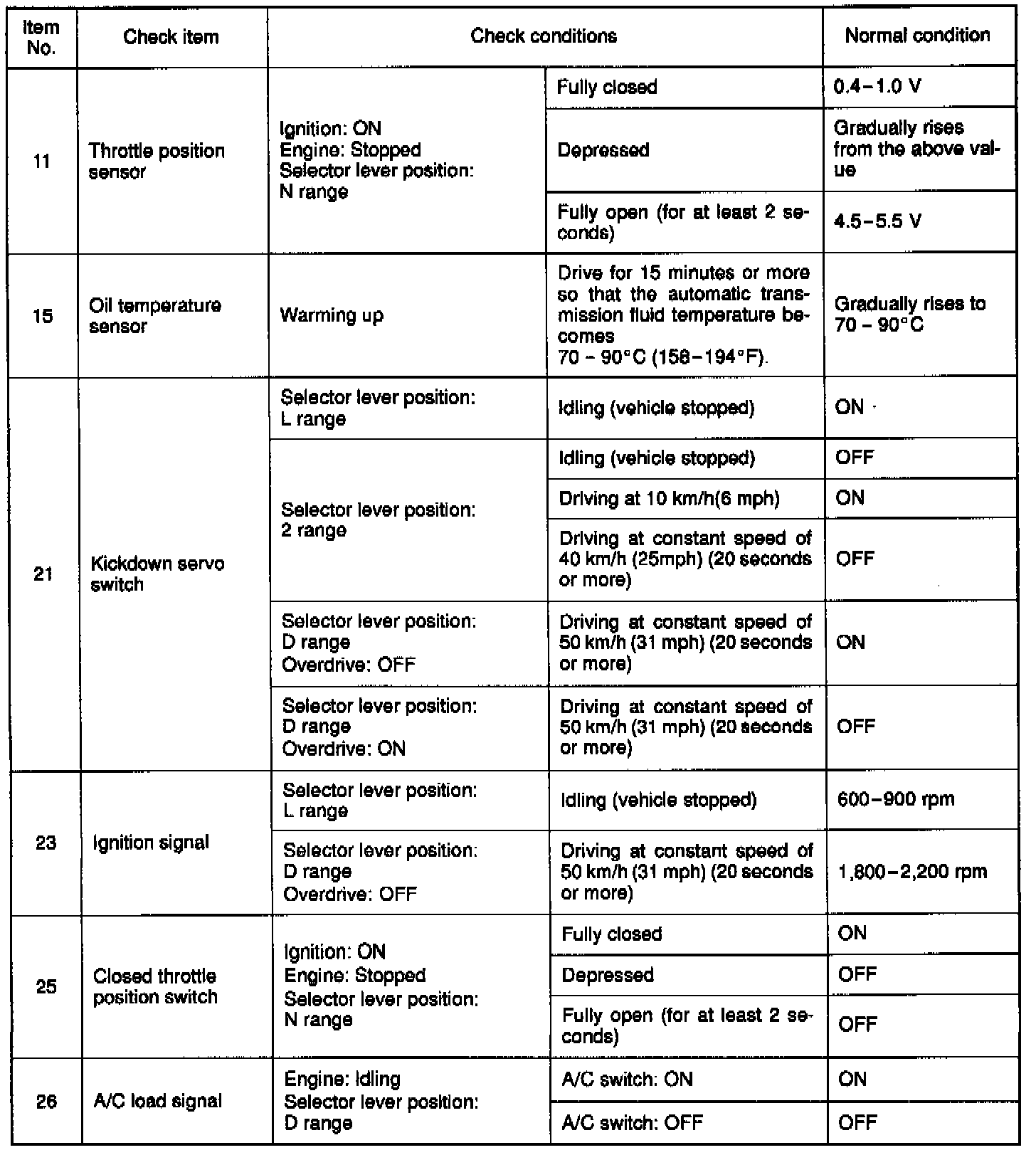

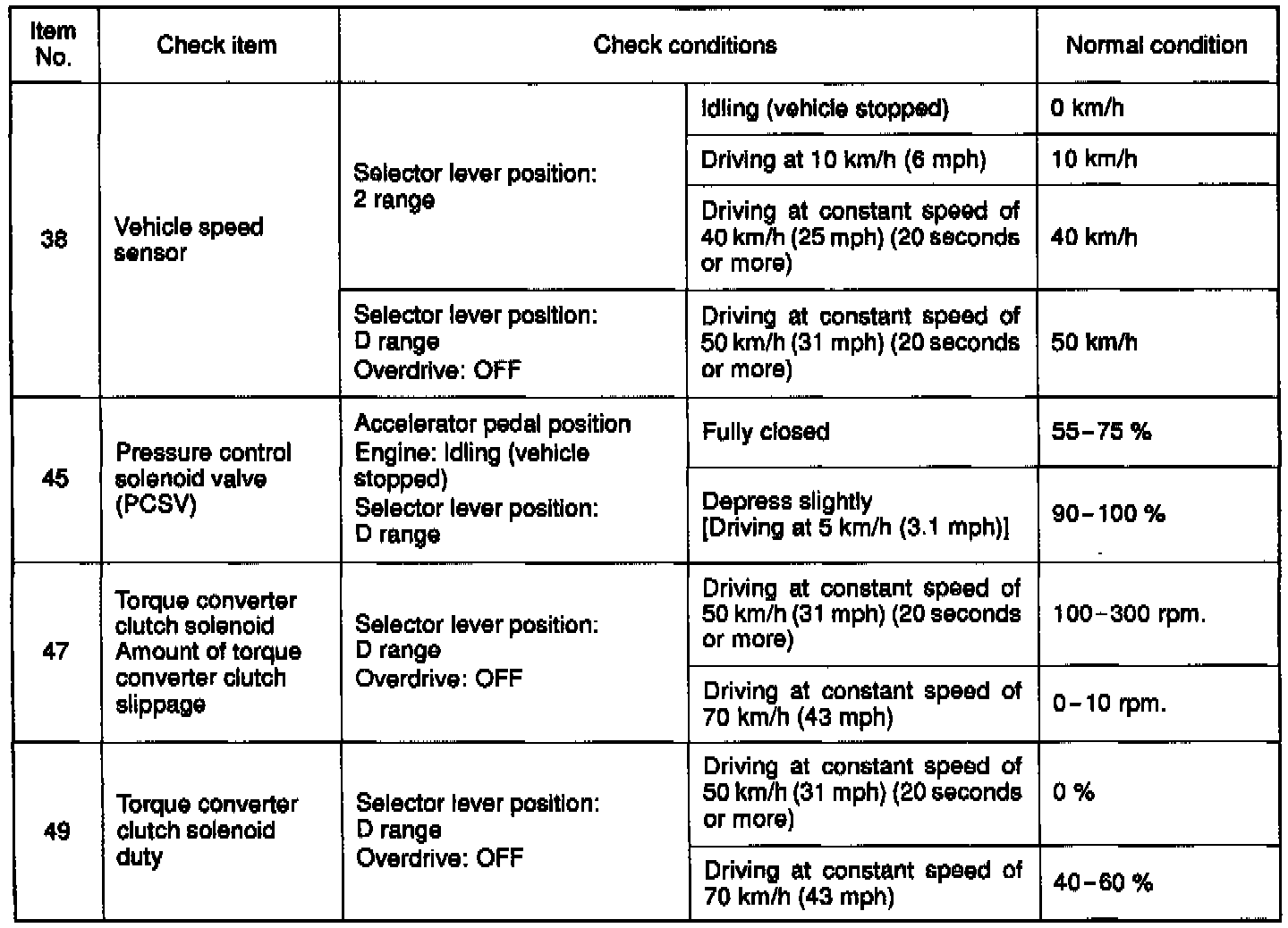

DATA NUMBER/DISPLAY READOUTS
