With Generic Scan Tool

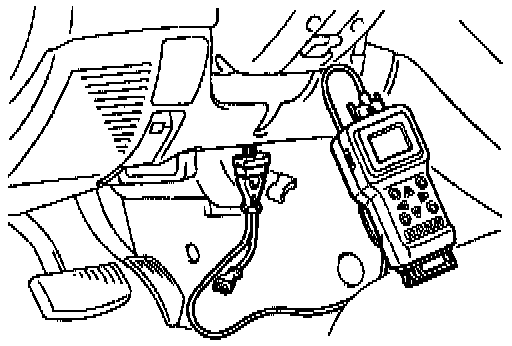

Connect the scan tool to the data link connector (16pin) at the lower right of the instrument under cover, and then read the diagnostic trouble codes.

CAUTION
- Always turn the ignition switch OFF to connect or disconnect the scan tool.
