A/T - Circuit Diagram Revision
No.: TSB-95-23-004DATE: December, 1995
MODEL: 1995 Eclipse
SUBJECT:
ALEC 4-SPEED AUTOMATIC TRANSMISSION (NON-TURBO)
CIRCUIT DIAGRAM -
SERVICE MANUAL REVISION
TSB Revision TSB-95-23-004
PURPOSE
Three connections on the ALEC 4-speed automatic transmission (non-turbo) solenoid and pressure switch assembly circuit diagram are labeled incorrectly in the 1995 Eclipse Service Manual, Volume 2. This bulletin revises the circuit diagram to show the correct connections. The 1996 manual contains the correct information.
To reference this bulletin in the service manual, write the TSB Revision number in the TSB Revision box located at the bottom of the affected service manual page.
AFFECTED SERVICE MANUAL
1995 Eclipse, Volume 2
SERVICE MANUAL REVISION
1995 Eclipse, Volume 2, Page 122

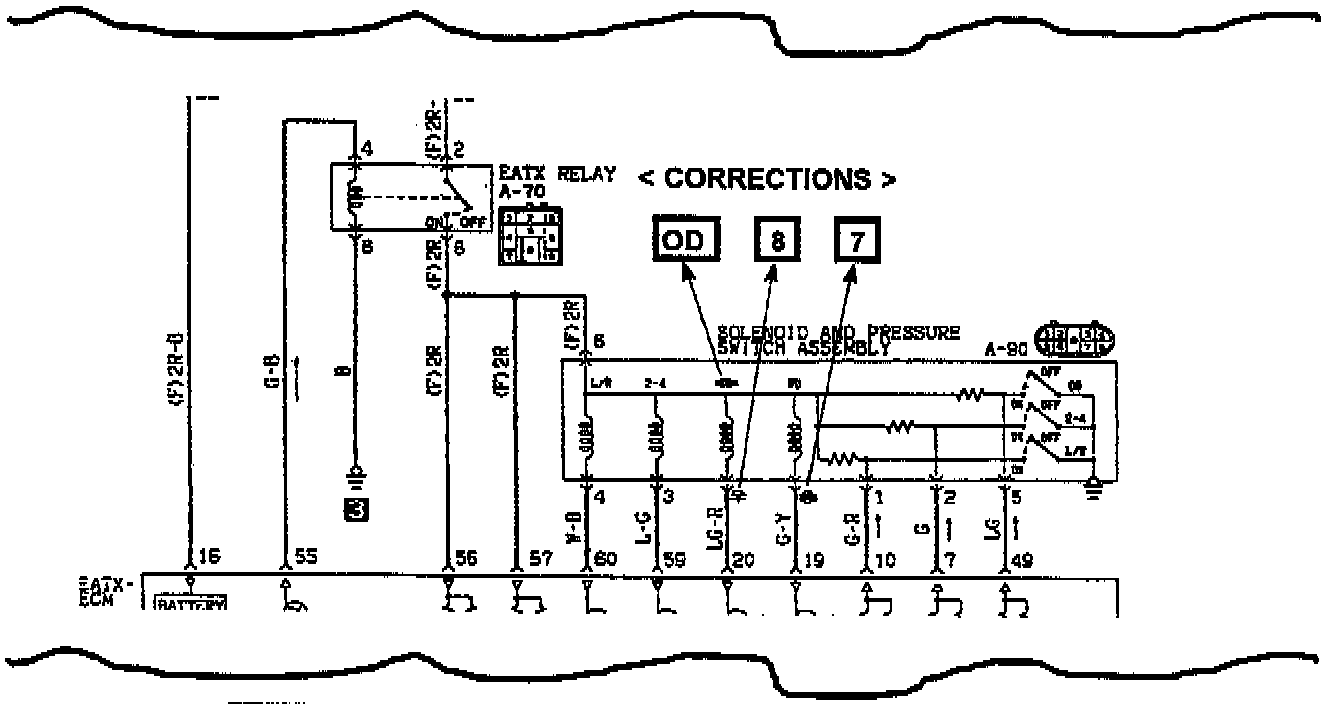

Change the circuit diagram as shown.
