Electrical Diagrams

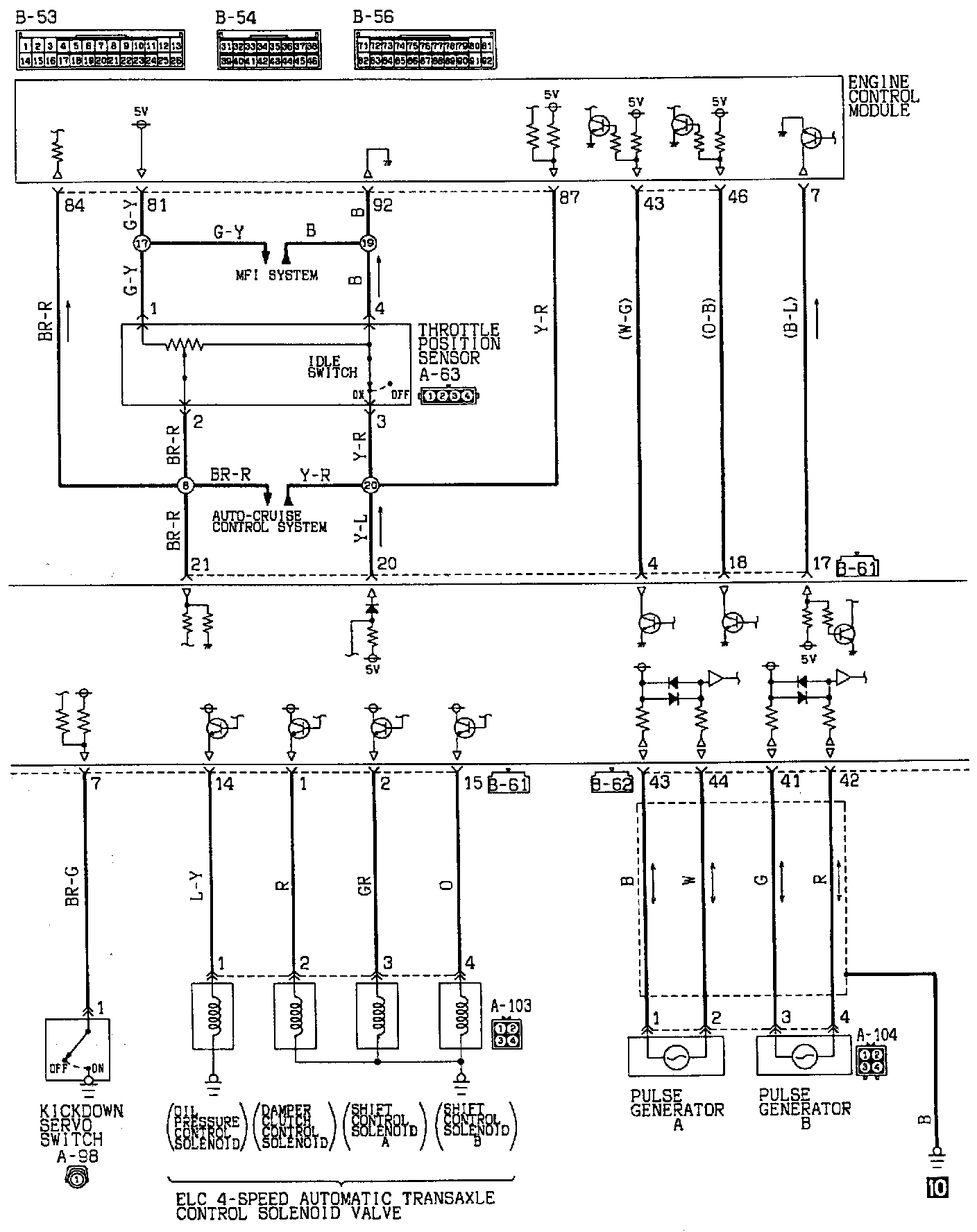

ELC 4-Speed Automatic Transaxle Part 1 Of 6:

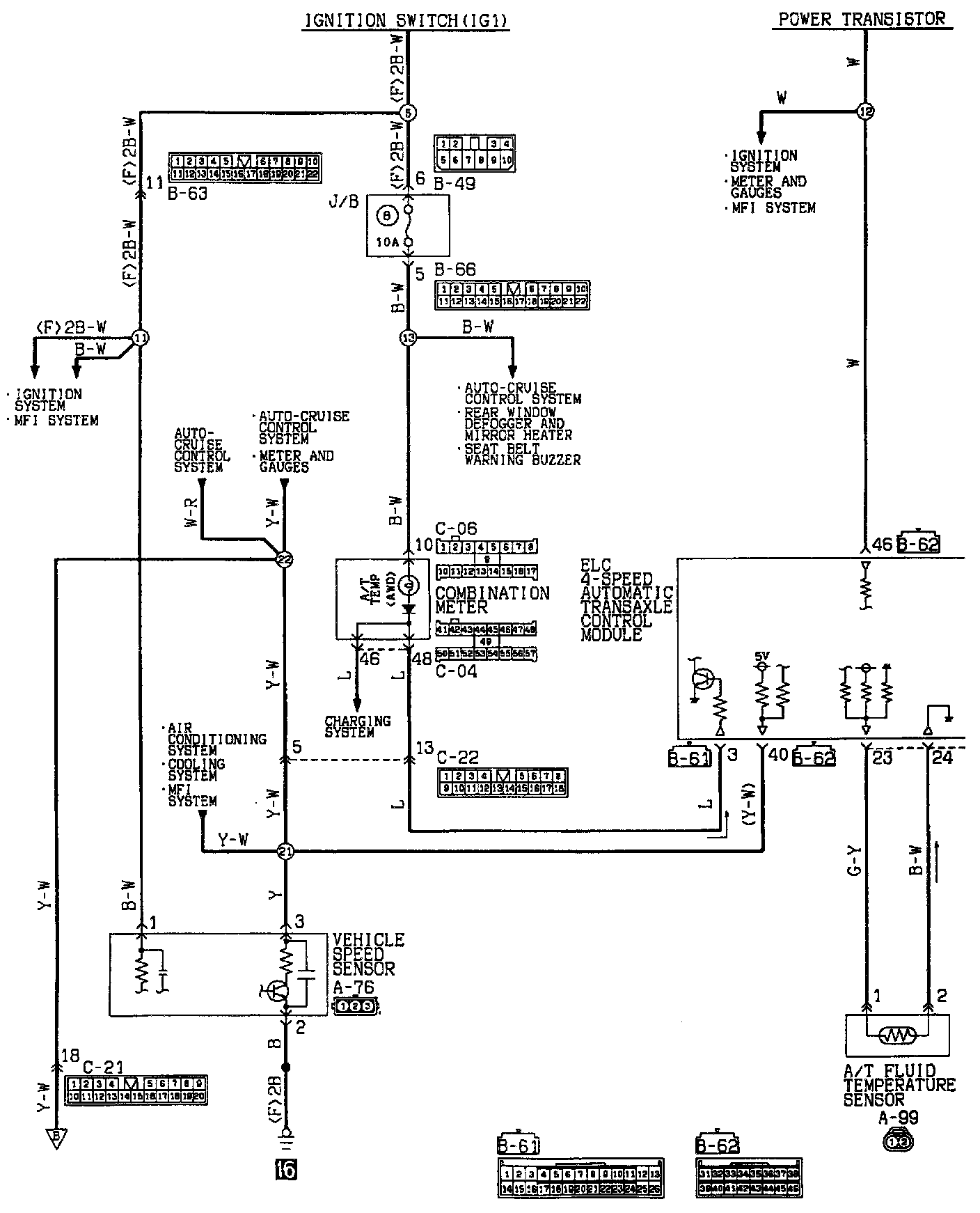

ELC 4-Speed Automatic Transaxle Part 2 Of 6:

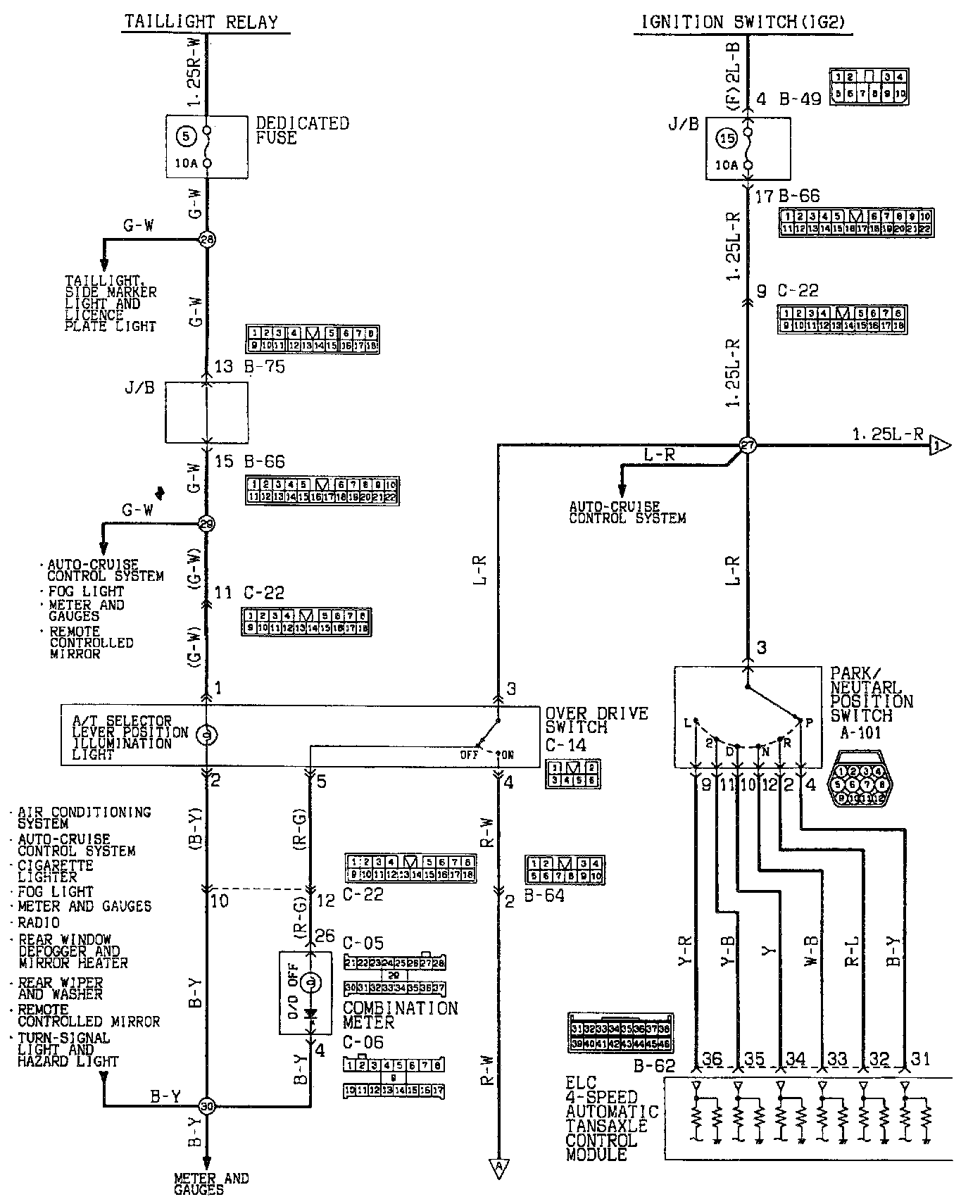

ELC 4-Speed Automatic Transaxle Part 3 Of 6:

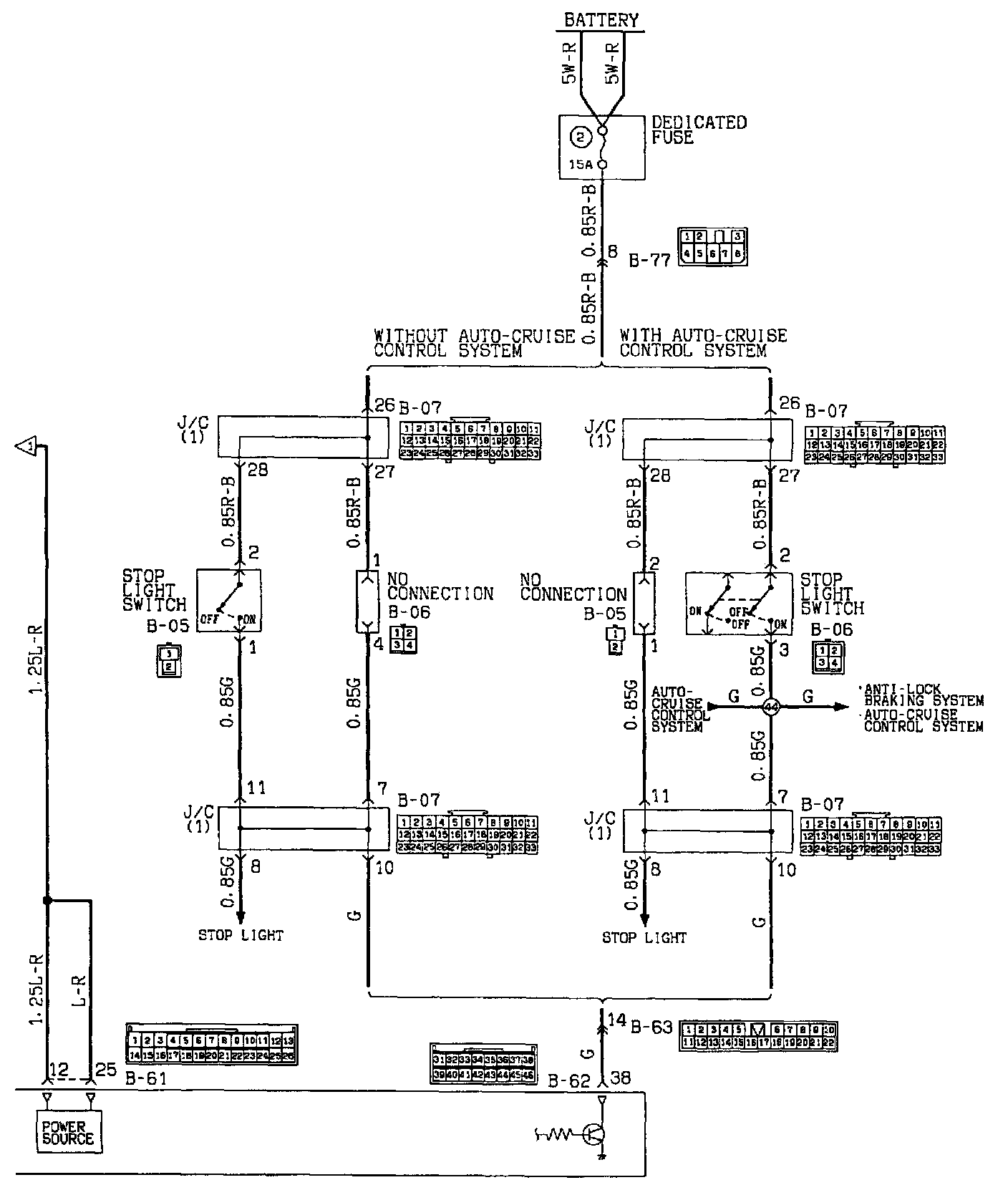

ELC 4-Speed Automatic Transaxle Part 4 Of 6:

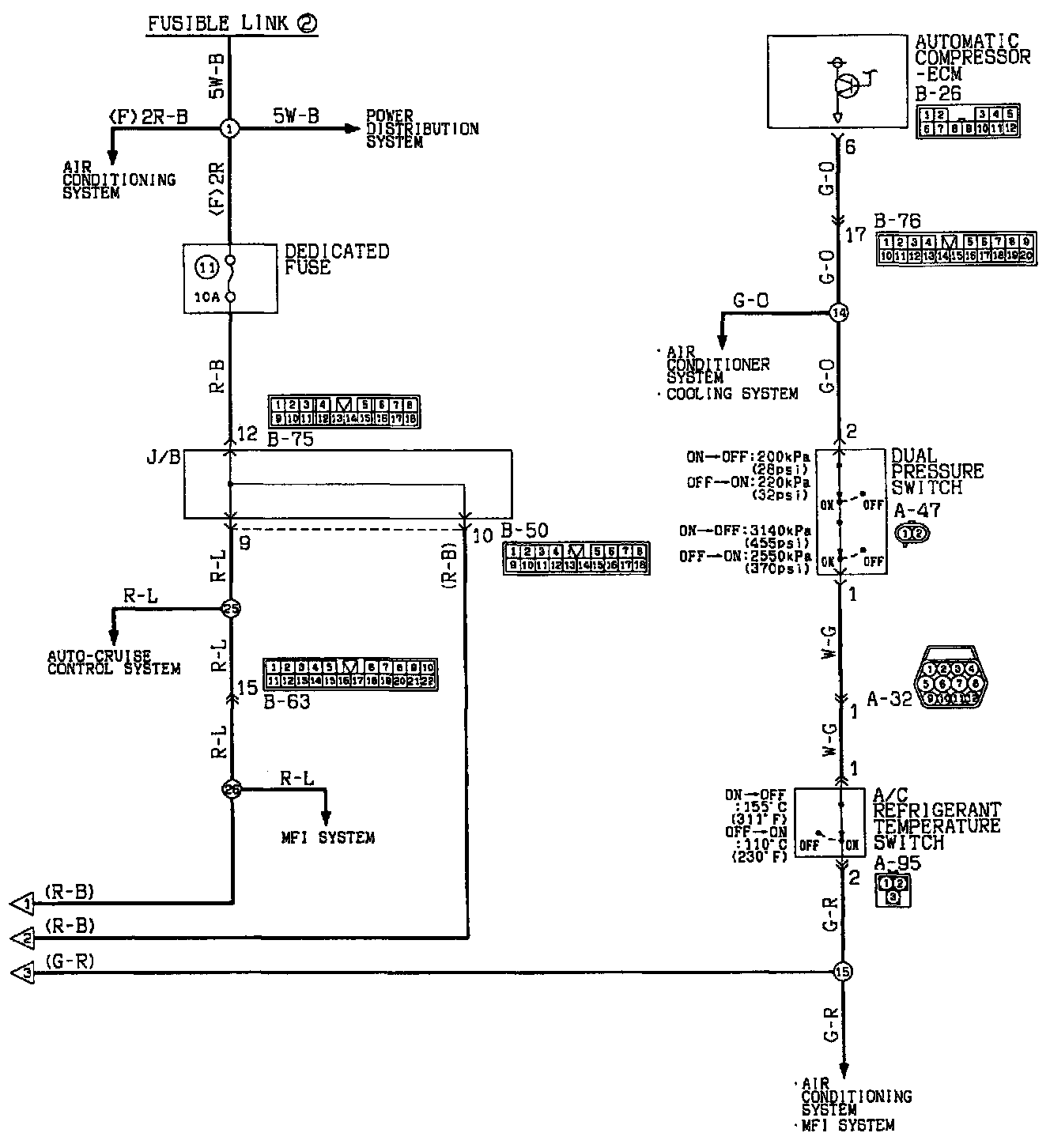

ELC 4-Speed Automatic Transaxle Part 5 Of 6:

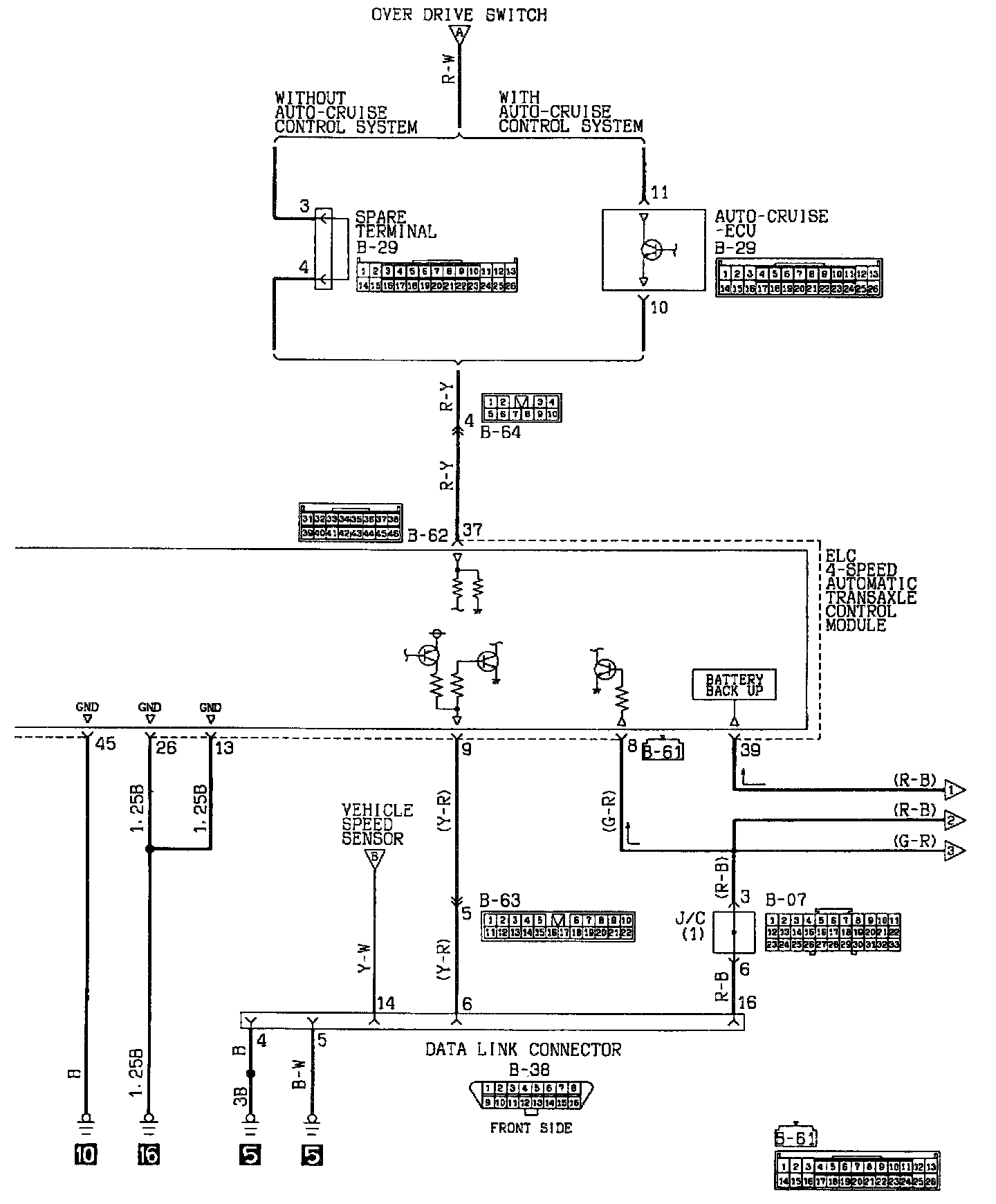

ELC 4-Speed Automatic Transaxle Part 6 Of 6:
