Transmission ID
Transmission ID

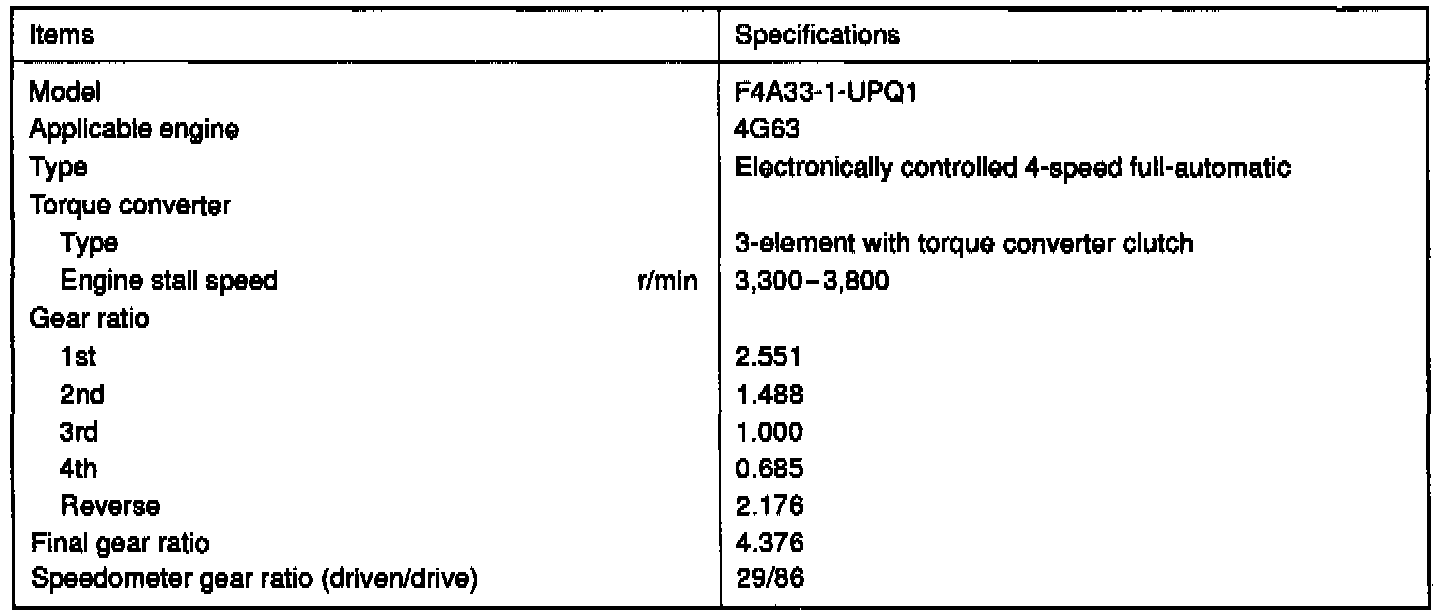

FRONT WHEEL DRIVE

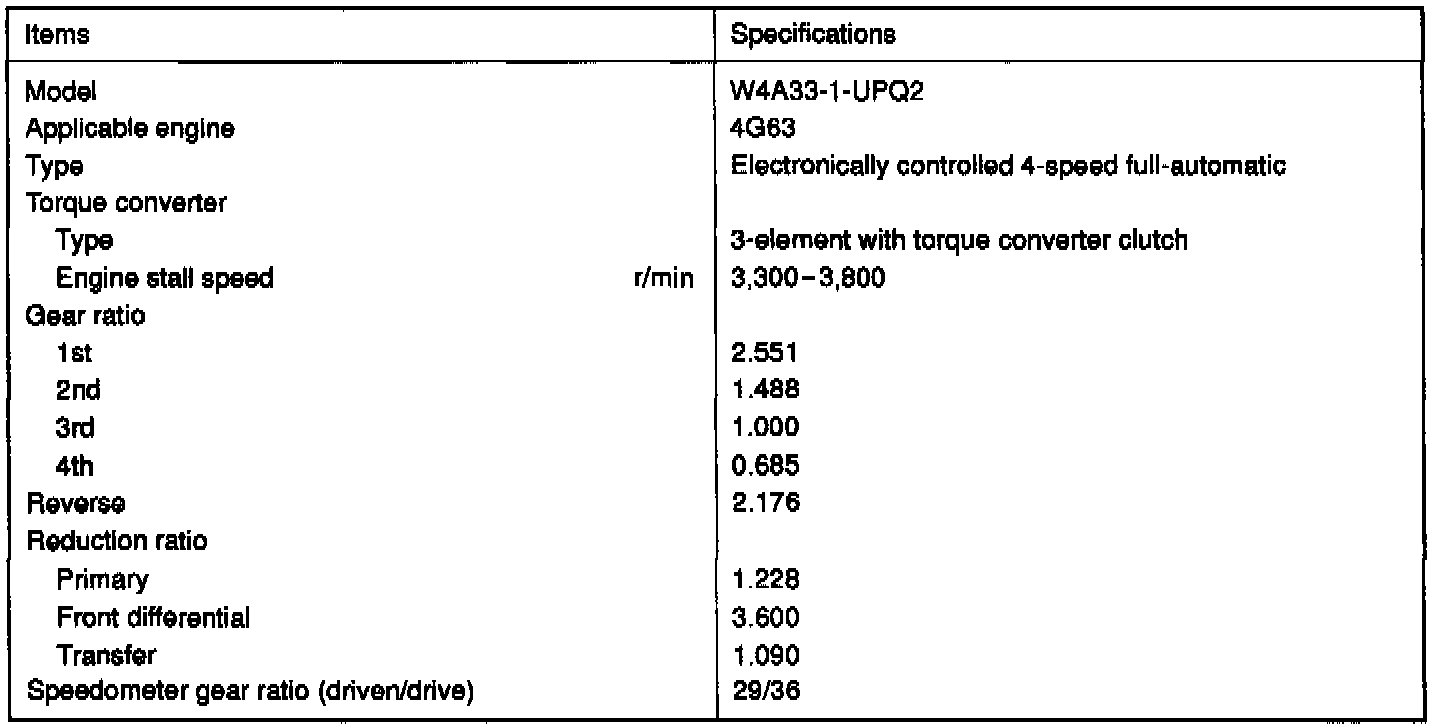

ALL WHEEL DRIVE
The automatic transaxles come in two models, the F4A33 (FWD) and the W4A33 (AWD). These transaxles are essentially the same as the conventional model.
