Ignition Coil Pack: Testing and Inspection

Ignition Coil Check:

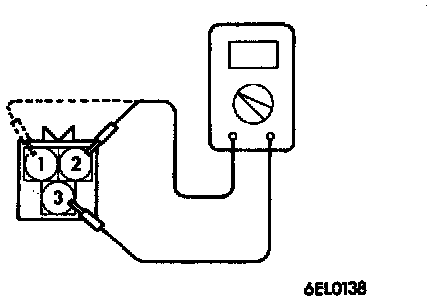

Primary Coil Resistance
Measure the resistance between connector terminal 3 (power)
and each coil terminal.
Measuring point:
No. 1 - No. 4 cylinder side coil; 2-3
No. 2 - No. 3 cylinder side coil; 1-3
Standard value: 0.70 - 0.86 Ohm

Ignition Coil Check:

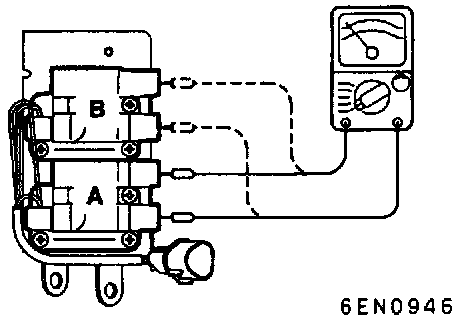

Secondary Coil Resistance
Measure the resistance between coil high Voltage terminals.
Measuring point:
No. 1 - No. 4 cylinder side coil; A
No. 2 - No. 3 cylinder side coil; B
Standard value: 11.3 - 15.3 K Ohm
