Throttle Cable/Linkage: Service and Repair

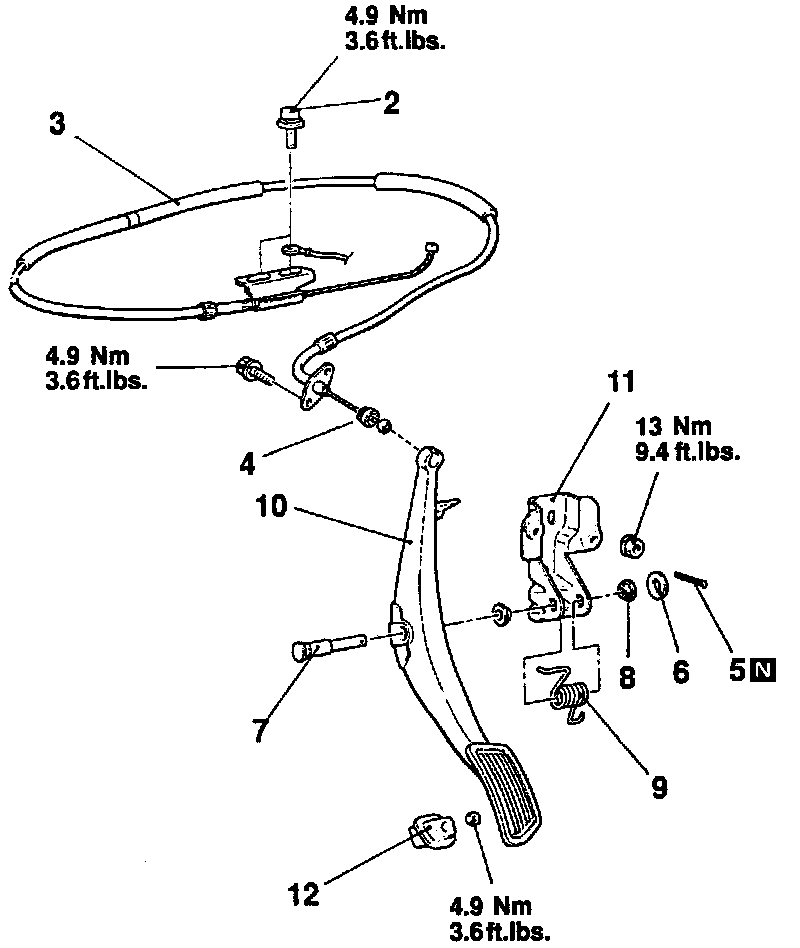

ACCELERATOR CABLE REMOVAL STEPS
1. Clip
2. Adjusting bolts
3. Accelerator cable

ACCELERATOR PEDAL REMOVAL STEPS
4. Accelerator cable connection
5. Cotter pin
6. Washer
7. Accelerator pedal pin
8. Bushing
9. Spring
10. Accelerator pedal arm
11. Accelerator pedal bracket
12. Accelerator pedal stopper

GREASE POINTS

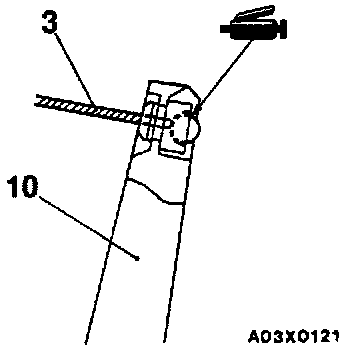

- Accelerator Cable

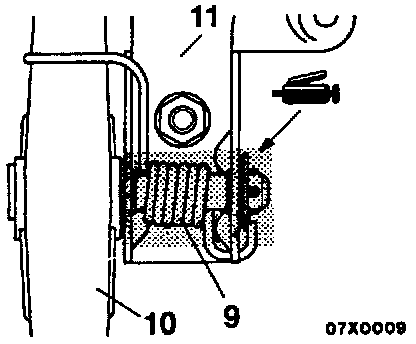

- Accelerator pedal pivot pin and spring

INSTALLATION SERVICE POINT

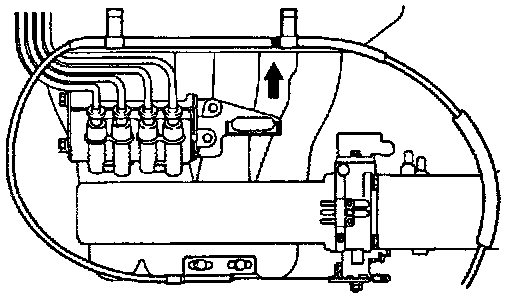

Accelerator cable installation. Clamp the accelerator cable so that its marking is as shown.

POST INSTALLATION OPERATION
Accelerator Cable Adjustment.
