Boost Gauge - Supercharger: Testing and Inspection

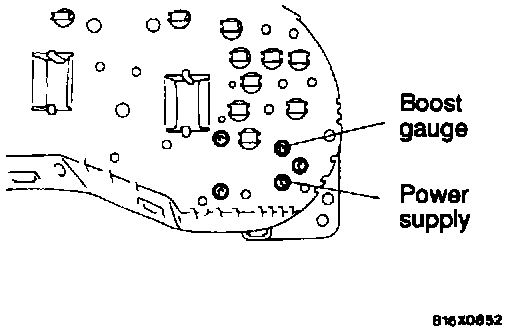

Boost Gauge:





Use an ohmmeter to measure resistance between terminals.
Standard value: 75.8 ± 7.6 Ohms
