Fuel Tank: Service and Repair
Preremoval Operation1. Fuel Draining
2. Reduce the inner pressure of fuel line and hose.
3. Propeller Shaft Removal
NOTE
- When replacing the fuel gauge unit and pump assembly or the fuel gauge unit and pipe assembly only, it is possible to work from the service holes underneath the rear seat cushion without having to remove the fuel tank.

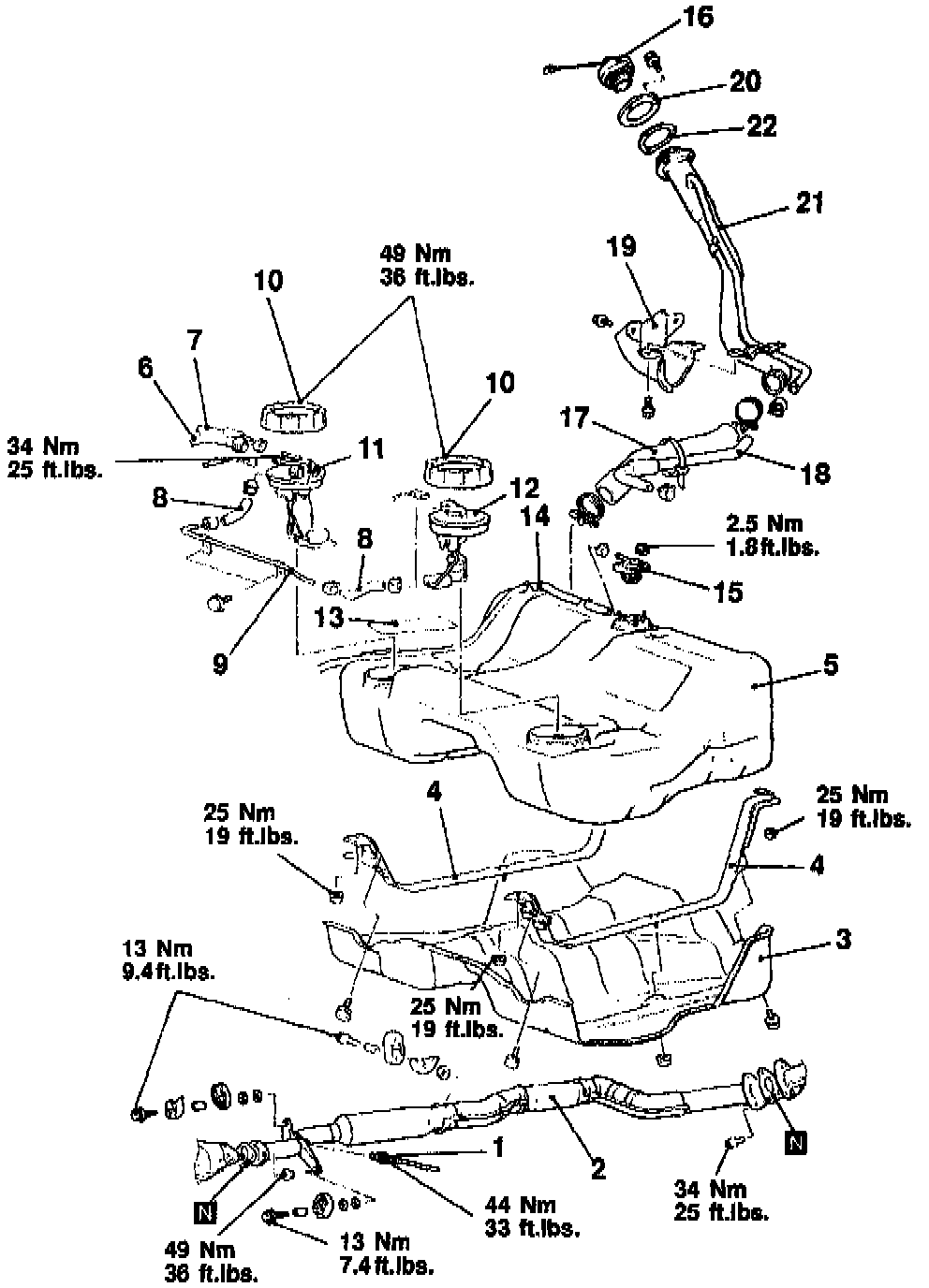

Removal Steps
1. Heated oxygen sensor connection
2. Center exhaust pipe
3. Protector
4. Band
5. Fuel tank
6. High-pressure fuel hose
7. Return hose
8. Suction hose
9. Pipe
10. Cap
11. Fuel gauge unit and pump assembly
12. Fuel gauge unit and pipe assembly
13. Tape
14. Vapor hose
15. Fuel cut-off valve assembly
16. Fuel tank filler tube cap
17. Filler hose
18. Vapor hose
19. Fuel tank filler tube protector
20. Reinforcement
21. Fuel tank filler tube assembly
22. Packing
Post-installation Operation
1. Propeller Shaft Installation
2. Fuel Refilling
3. Checking for Fuel Leaks
