Fuel Filter: Service and Repair

PRE-REMOVAL OPERATION
1. Reduce Residual Pressure from High Pressure Hose
2. Battery Removal
3. Air Intake Hose Removal

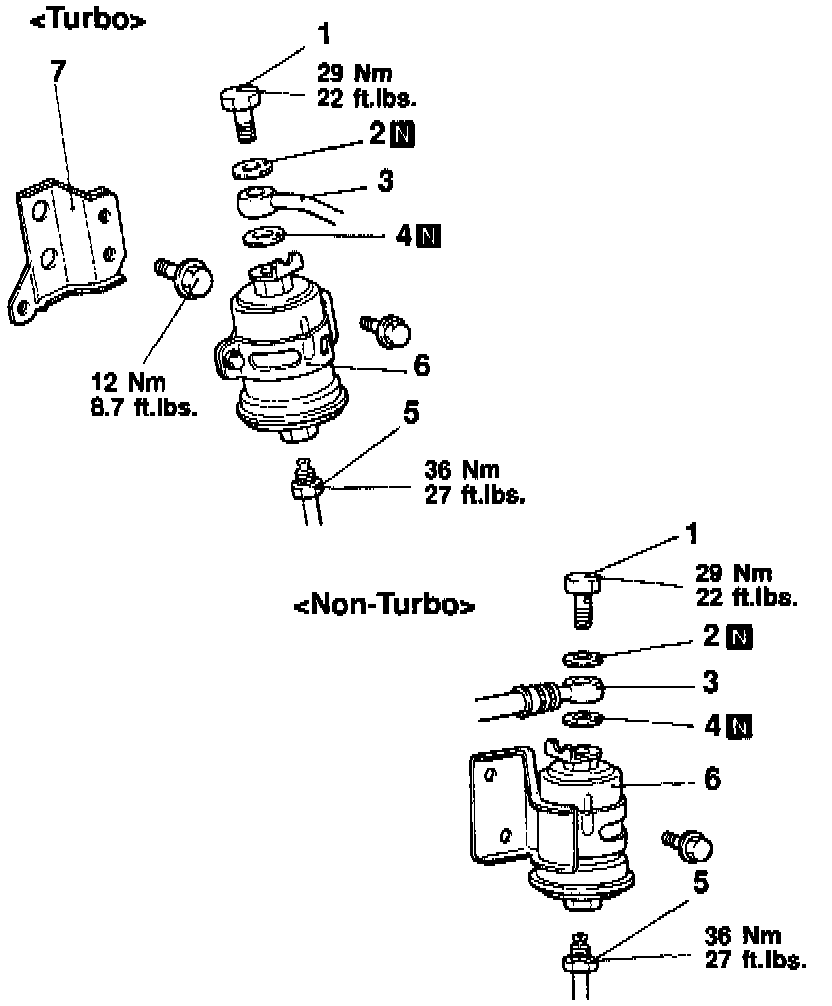

Removal steps
1. Eye bolt
2. Gasket
3. High-pressure fuel hose connection
4. Gasket
5. Fuel main pipe connection
6. Fuel filter
7. Fuel filter bracket

REMOVAL SERVICE POINTS
EYE BOLT REMOVAL

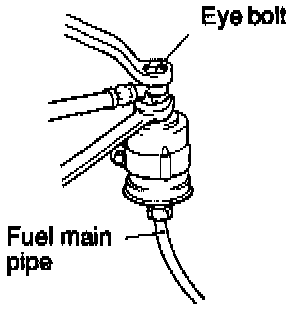

Hold the fuel filter with a spanner and remove the eye bolt.

CAUTION
- As there will be some pressure remaining in the fuel pipe line, cover it with a rag to prevent fuel from spraying out.

FUEL MAIN PIPE DISCONNECT





Hold the fuel filter with a spanner and loosen the flare nut. Then disconnect the fuel main pipe.

POST-INSTALLATION OPERATION
1. Air Intake Hose Installation
2. Battery Installation
3. Fuel Pressure Measurement
